Speed: 0–255 KM/H or 0–255 MPH
RPM: 0–9000 RPM
Boost Range: -15~45 PSI or -1~3 BAR
Water Temp: 0–150°C or 0–300°F
Oil Temp: 0–150°C or 0–300°F
Oil Pressure: 0–150 PSI or 0–10 BAR
Voltage: 10–16V
Air-Fuel Ratio: 20:1–10:1
Exhaust Temp: 0–1300°C or 0–2400°F
Clock: 24H
RPM
Speed
Turbo
Water Temp
Oil Temp
Oil Pressure
Voltage
Air Fuel Ratio
EXT Temp

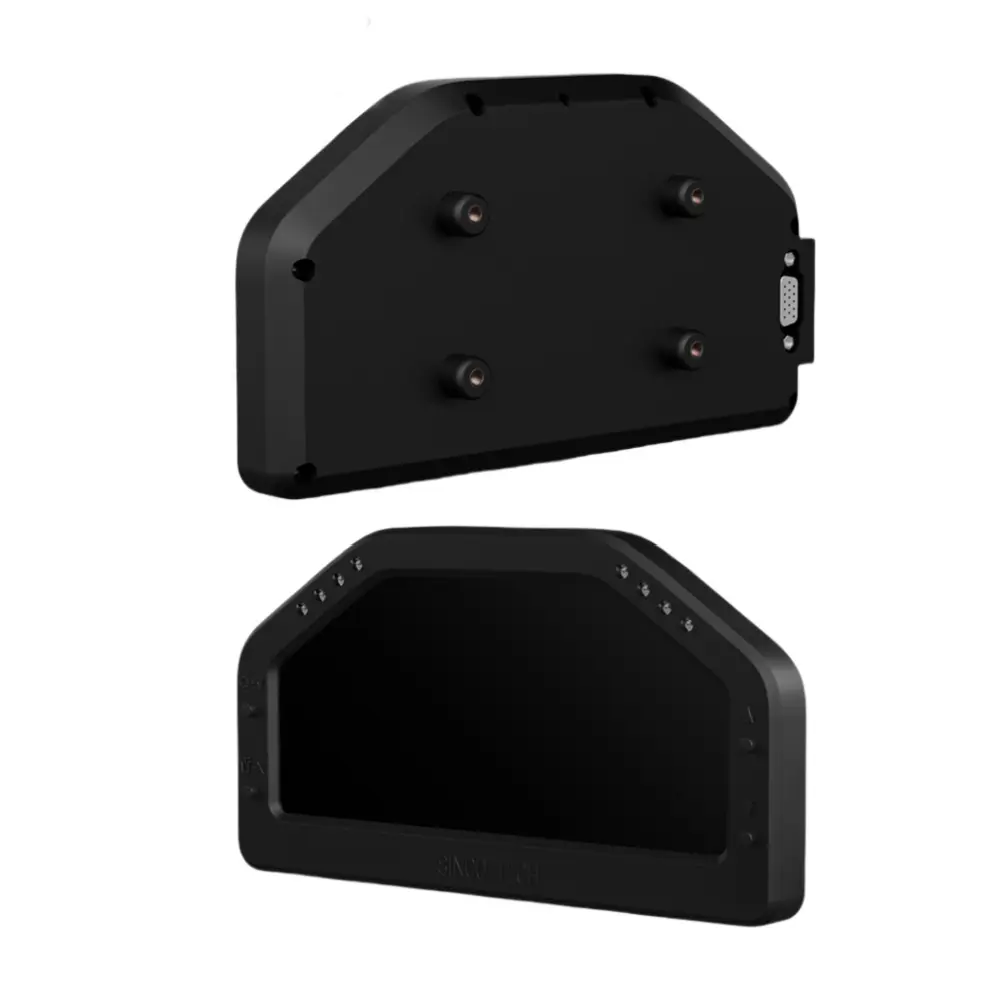

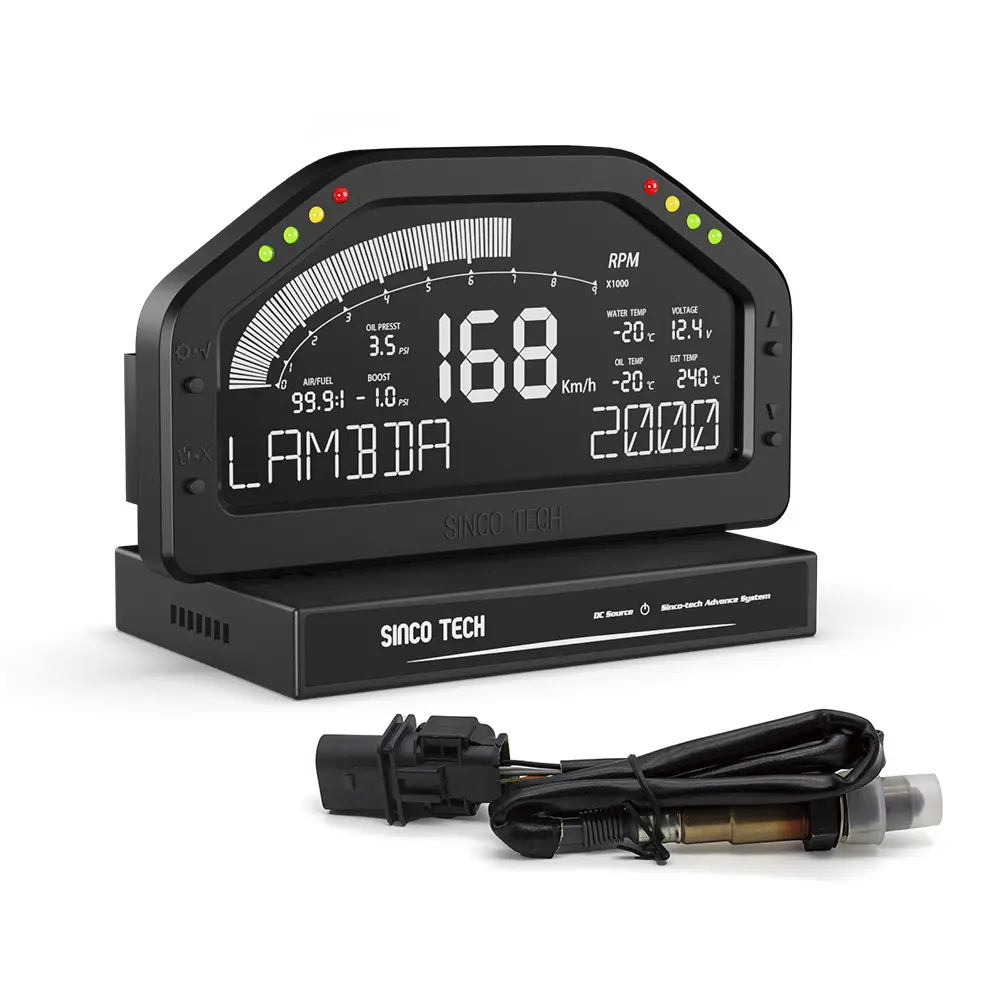

1. Display Monitor
2. The Data Processing Unit (DPU)
3. Sensor Connection Wire Bundle
4. Oil Pressure Sensor With Wire
5. Data Line Between Monitor & DPU
6. Exhaust Temperature Sensor
7. Boost Pipe
8. Boost Sensor With Wire
9. Water/Oil Temperature Sensor
10. Wide Band Oxygen Sensor and Wiring
11. Exhaust Temperature Adapter
12. Boost Pipe Air Filter
13. Boost Pipe T-Fitting
14. DPU Installation Panel
15. Installation Screws
SPEED, TACHO, WATERTEMP, OIL.TEMP, OIL PRESSURE, BOOST, and VOLT warns via audible alerts and indicator lights, featuring a buzzer and 8 LED indicators.
Users can choose to adjust the brightness manually or automatically according to the current environment, providing three brightness levels and an automatic sensitivity option.

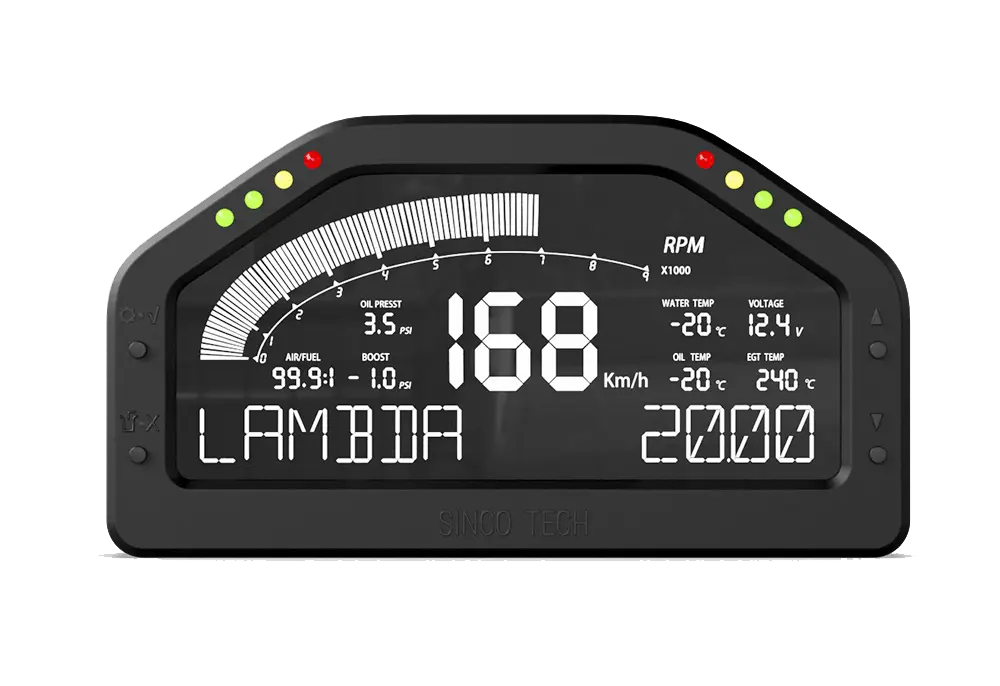

In addition to the default white display, the instrument panel offers seven other colors, allowing users to choose the appropriate color based on their preference or the current environment.
1. When the monitor is turned on, it will automatically communicate with the DPU. Once the DPU detects a wide band oxygen signal, the screen will automatically display the wide band oxygen version; if no wide band oxygen signal is detected, the screen will automatically display the narrow band oxygen version.

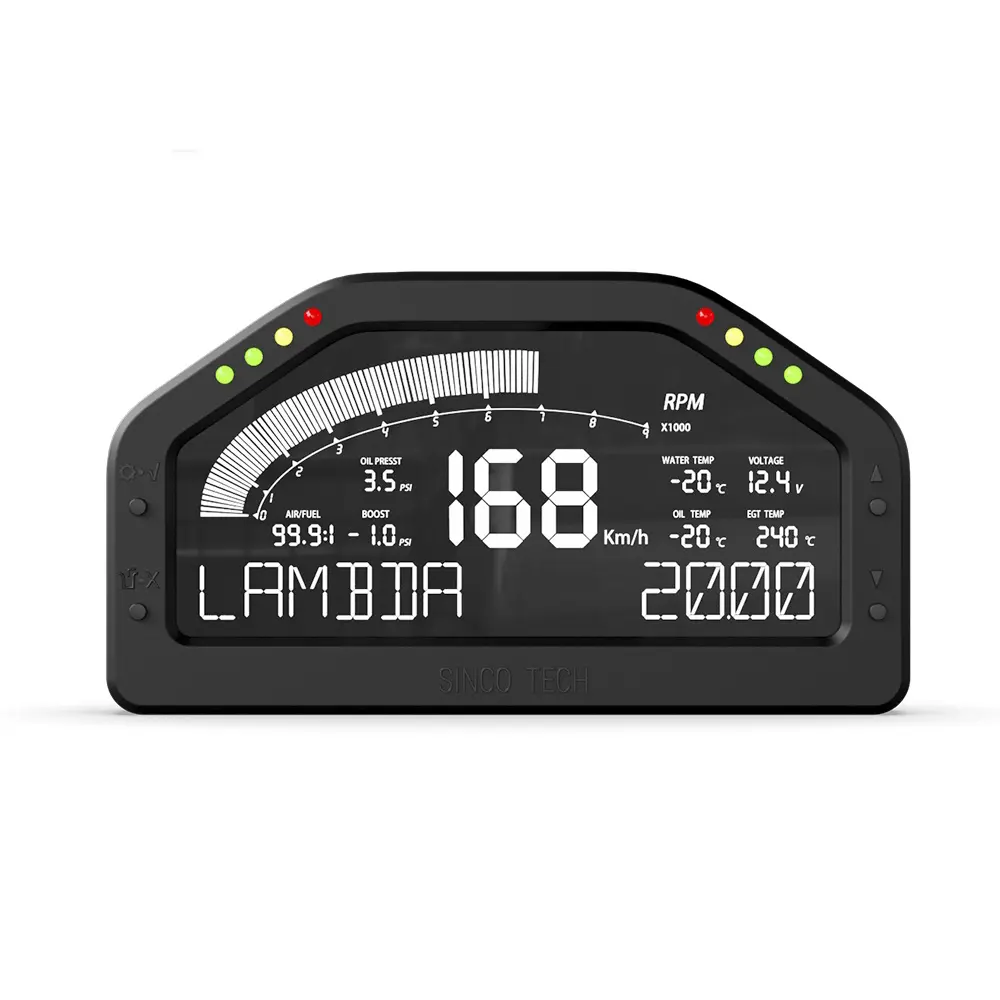

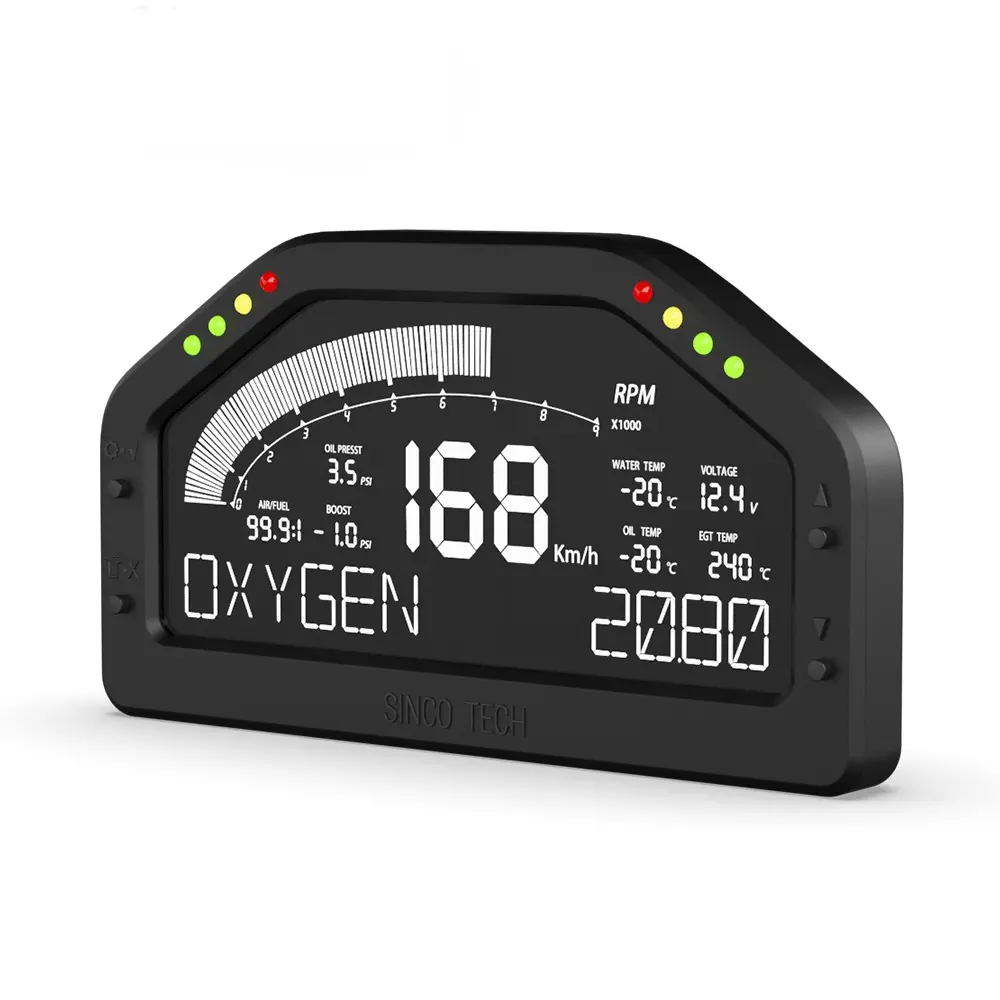

Under Wide Band oxygen version, the "air-fuel ratio" parameter on the screen displays the air-fuel ratio data detected by the wide oxygen sensor, with the display range of 0.0~99.9:1. At the same time, two additional parameters will appear in the multi-function display area at the bottom: LAMBDA (λ) and OXYGEN (the percentage of oxygen content).
Under Narrow Band oxygen version: When the system does not detect a wide band oxygen signal, the "air-fuel ratio" parameter on the screen displays the air-fuel ratio data of the narrow band oxygen sensor, and the display range is 20~10:1.
2. When the wide oxygen sensor is working, the controller will monitor its status at all times. Once an error is found, the controller will stop monitoring the wide oxygen sensor and display the error code "ERR xx" in the multi-function display area at the bottom of the screen.
("xx" represents the specific error code. For example, when working normally, unplug the sensor wiring, and the instrument displays "Err 7F".)
When the wide oxygen sensor starts to work, there is a pre-heating process of approximately 1–2 minutes. During this time, the air fuel ratio on the screen will display 0.00, which is a normal display. When the sensor enters the normal state, the correct air fuel ratio value will be displayed.
1. We provide a one-year warranty (excluding damage caused by human factors). All warranty claims require proof of professional installation.
2. Manual measurement — please allow 1~3 mm error. Due to the difference between different displays, the picture may not reflect the actual color of the item. We guarantee that the style is the same as shown in the picture. Please understand, thank you!
