• 1 – SET DATE
• 2 – SET TIME
• 3 – SET UNIT (select to change the measurement unit for pressure)
• 4 – SET LED (select to turn the LED on and off)
• 5 – SET ALARM (select to adjust the speed limit alarm)
• 6 – SPEED CAL (select to calibrate the speed)

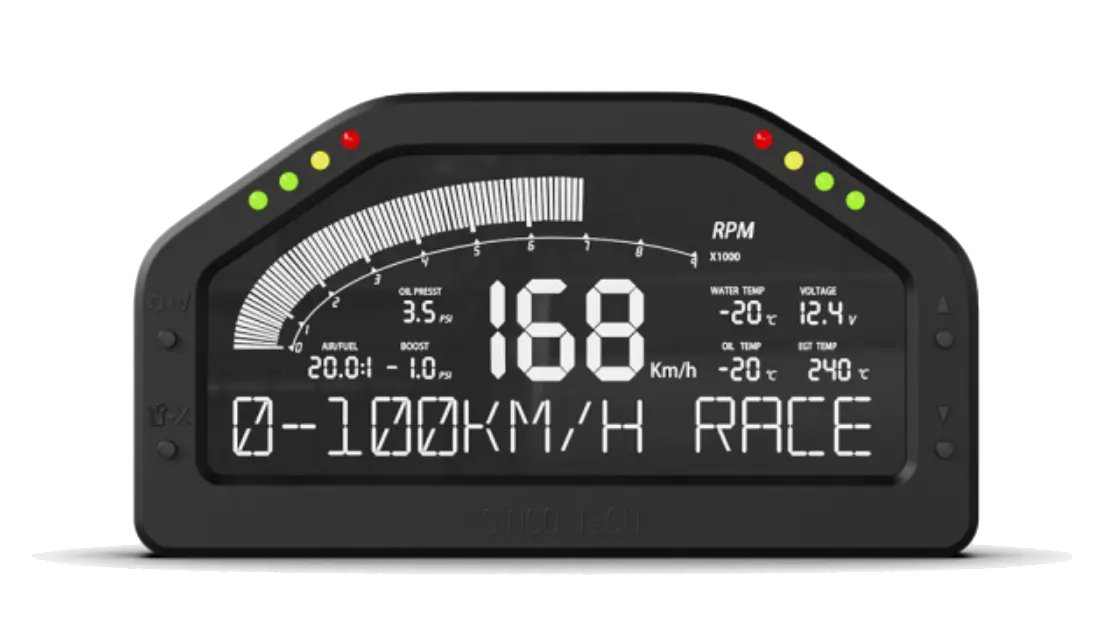

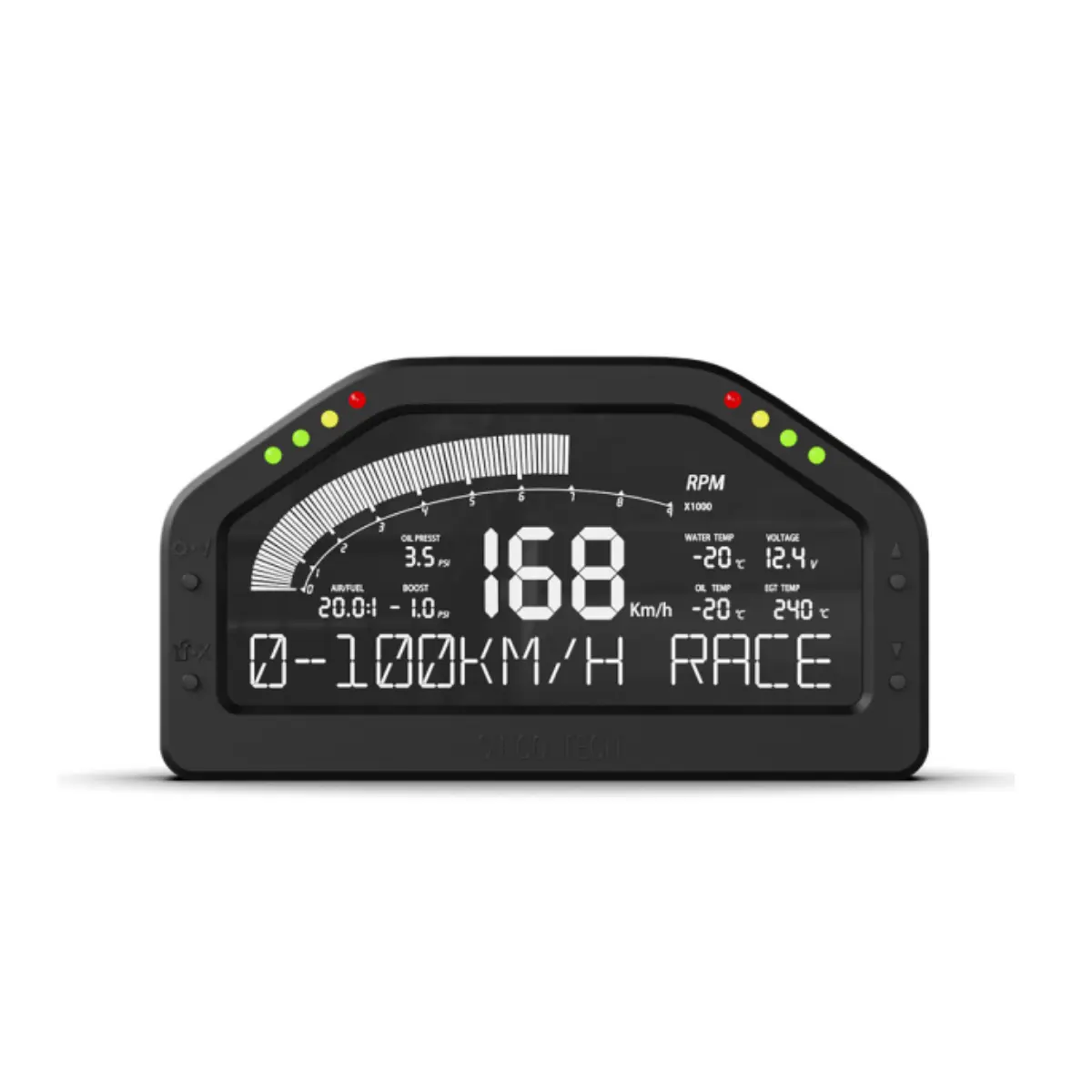

SPEED, TACHO, WATERTEMP, OIL.TEMP, OIL PRESSURE, BOOST, VOLT — warns via audible alerts and indicator lights, featuring a buzzer and 8 LED indicators.

Users can choose to adjust the brightness manually or automatically according to the current environment, providing three brightness levels and an automatic sensitivity option.

In addition to the default white display, the instrument panel offers seven other colors, allowing users to choose the appropriate color based on their preference or the current environment.

• 1 Spare Socket
• 2 Spare Socket
• 3 Power Supply Input — Red: +12V | Black: Ground | White: ACC | Yellow: Headlight +12V
• 4 Boost Pressure Sensor — Red: Sensor Positive | Green: Signal Wire | Black: Sensor Negative
• 5 Oil Pressure Sensor — Red: Sensor Positive | Green: Signal Wire | Black: Sensor Negative
• 6 Air-Fuel Ratio Sensor — Red: Sensor Negative | Green: Signal Wire | Black: Sensor Positive
• 7 Oil Temperature Sensor — Green: Signal Wire | Black: Ground
• 8 Water Temperature Sensor — Green: Signal Wire | Black: Ground
• 9 Exhaust Temperature Sensor — Green: Sensor+ | Orange: Sensor−
• 10 RPM Signal (Green Wire) and Speed Sensor (Orange Wire)
• 11 Spare Socket

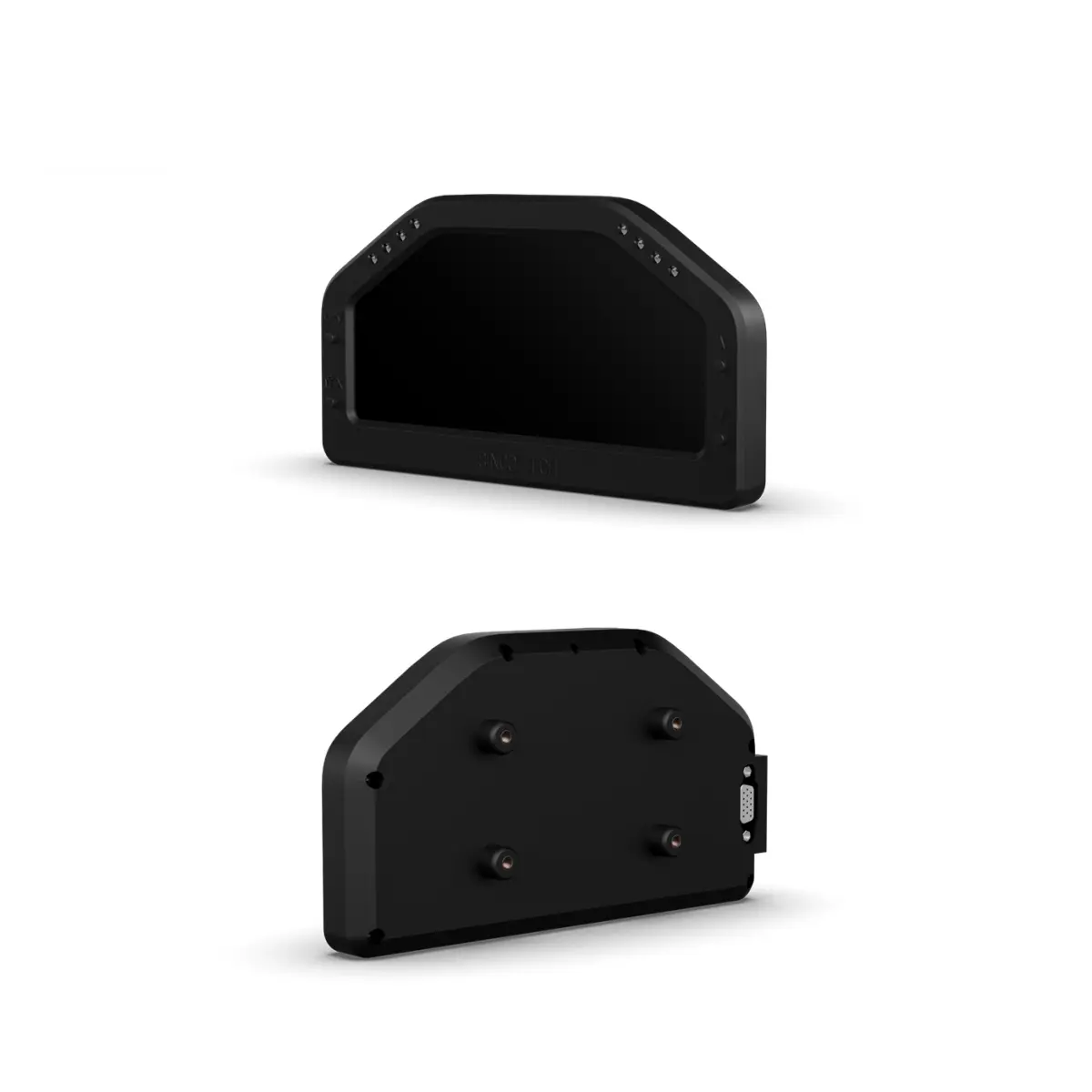

• 12 Instrument Interface (VGA Port on Instrument Back)
