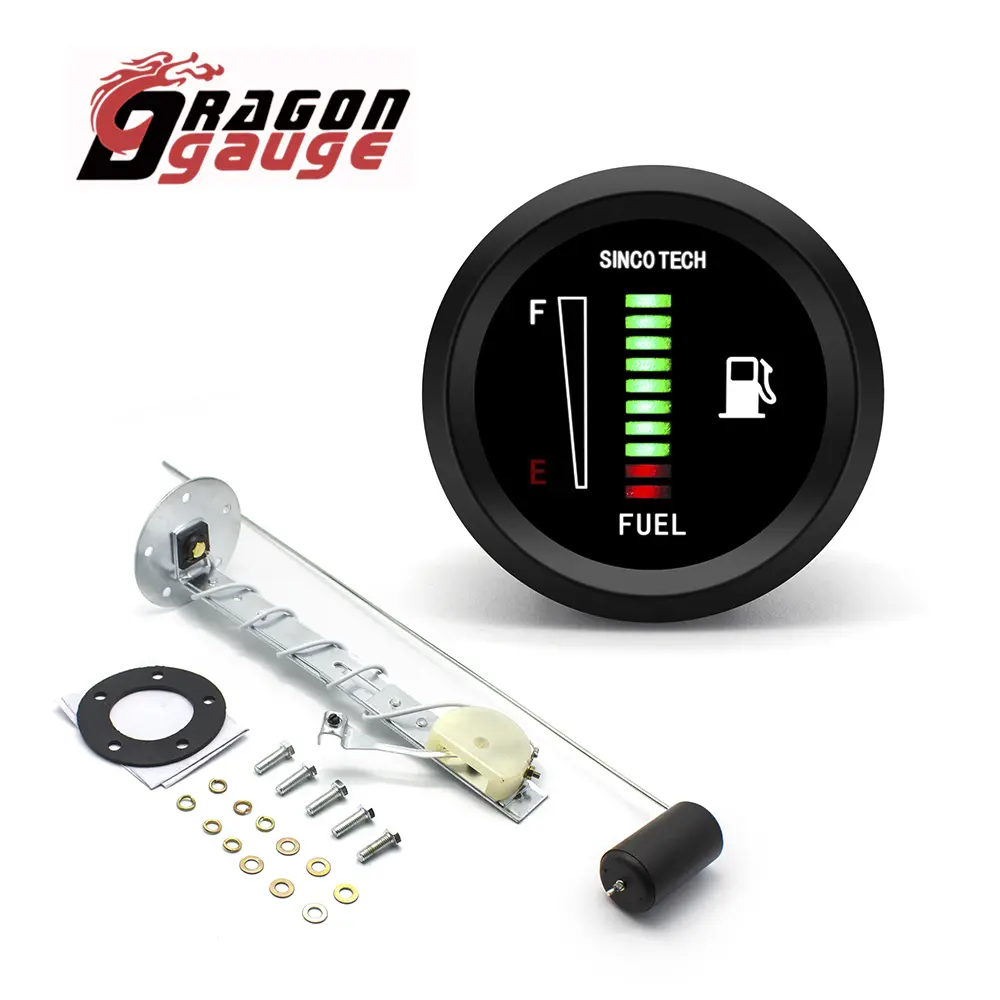

This fuel level gauge has a delay function circuit that does not cause flickering of the LED display because the tank is sloshing during driving. Blue LED can be clearly shown in strong sunlight.

The gauge is fit to a resistance type fuel level sensor, and the measuring range of the sensor is ≤ 2KΩ.

It can be adjusted to fit your car.

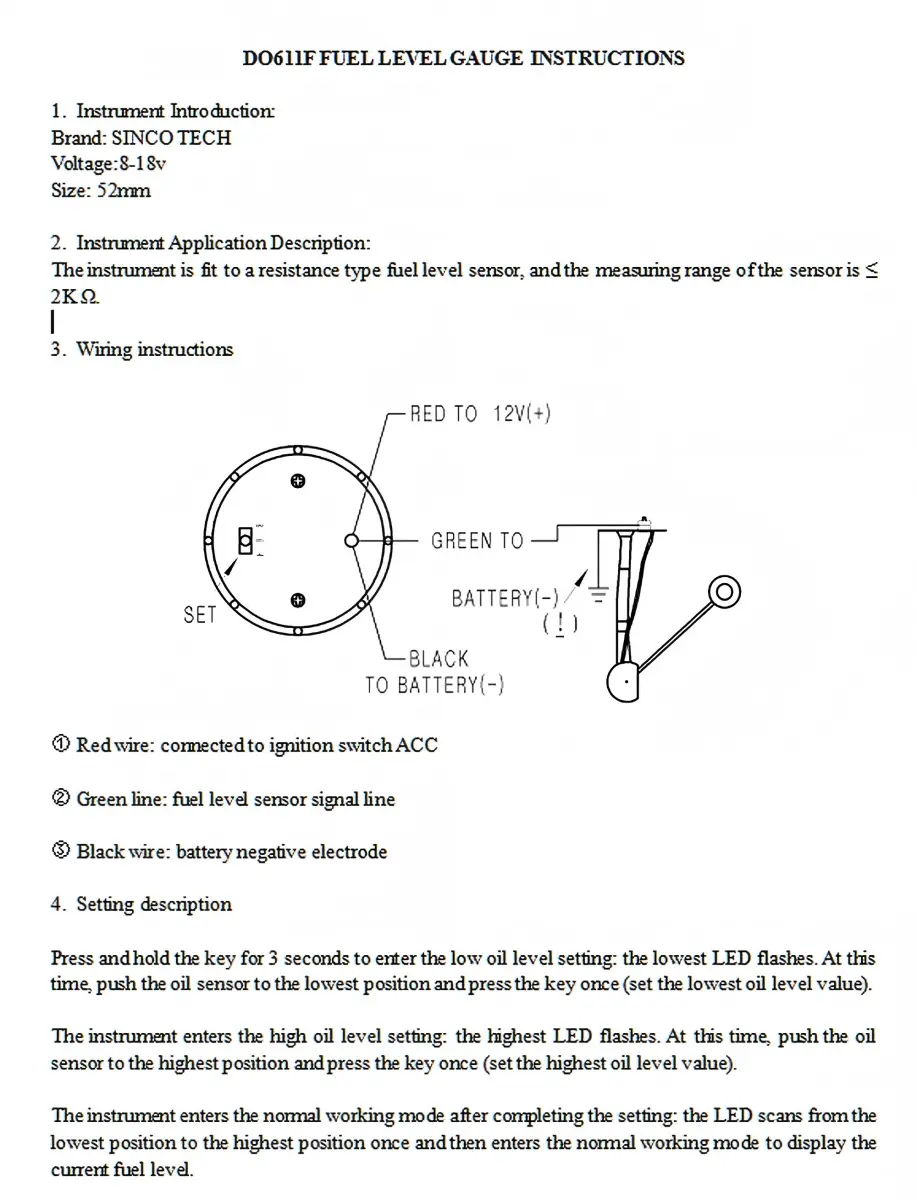

• ① Red Wire: Connected to ignition switch ACC
• ② Green Wire: Fuel level sensor signal line
• ③ Black Wire: Battery negative electrode

1. Low Oil Level Setup: Press and hold the key for 3 seconds to enter the low oil level setting — the lowest LED flashes. Push the oil sensor to the lowest position and press the key once to set the lowest oil level value.
2. High Oil Level Setup: The gauge enters the high oil level setting — the highest LED flashes. Push the oil sensor to the highest position and press the key once to set the highest oil level value.
3. Normal Working Mode: After completing the setting, the LED scans from the lowest position to the highest position once, then enters normal working mode to display the current fuel level.

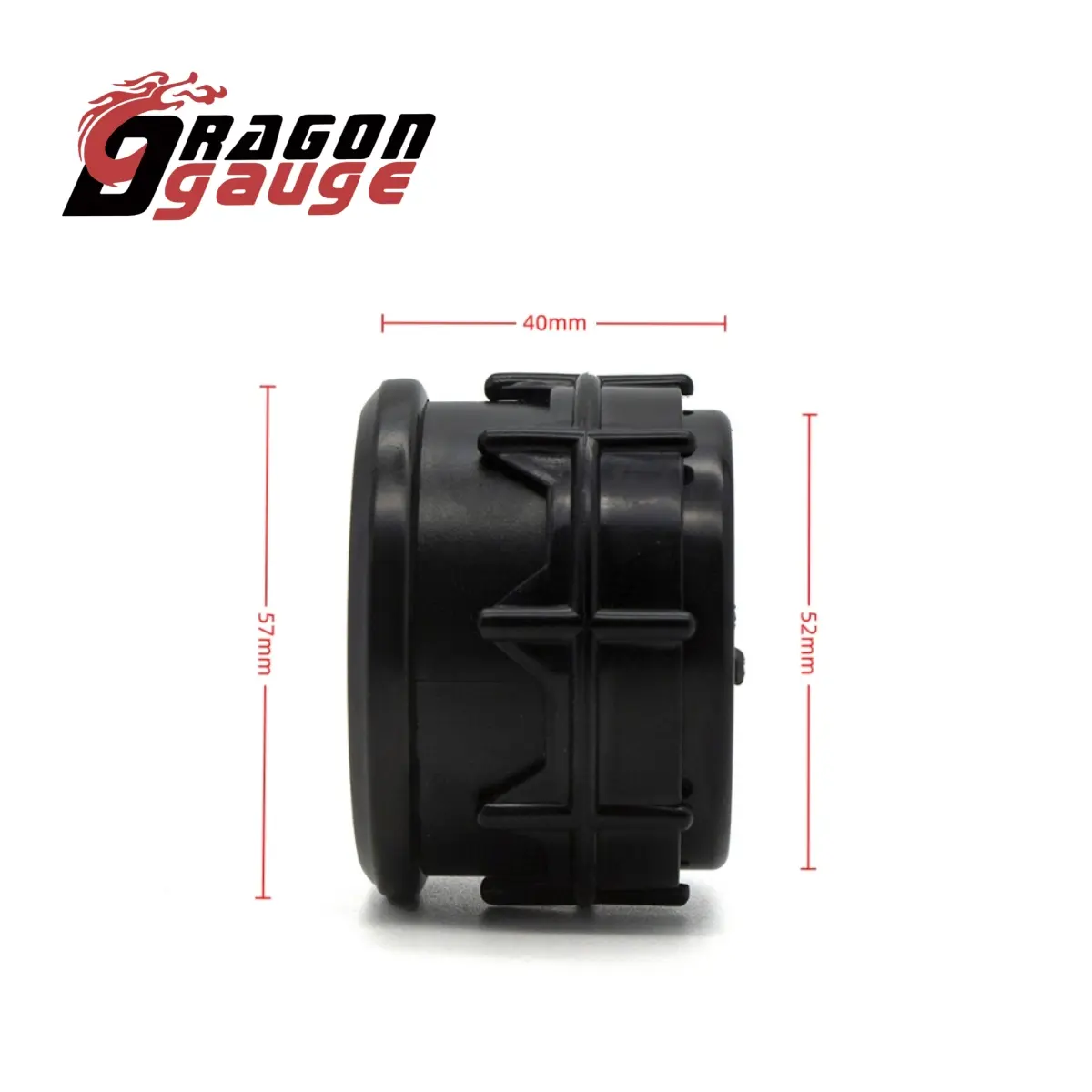

Universal Fit for 12V / 24V Cars

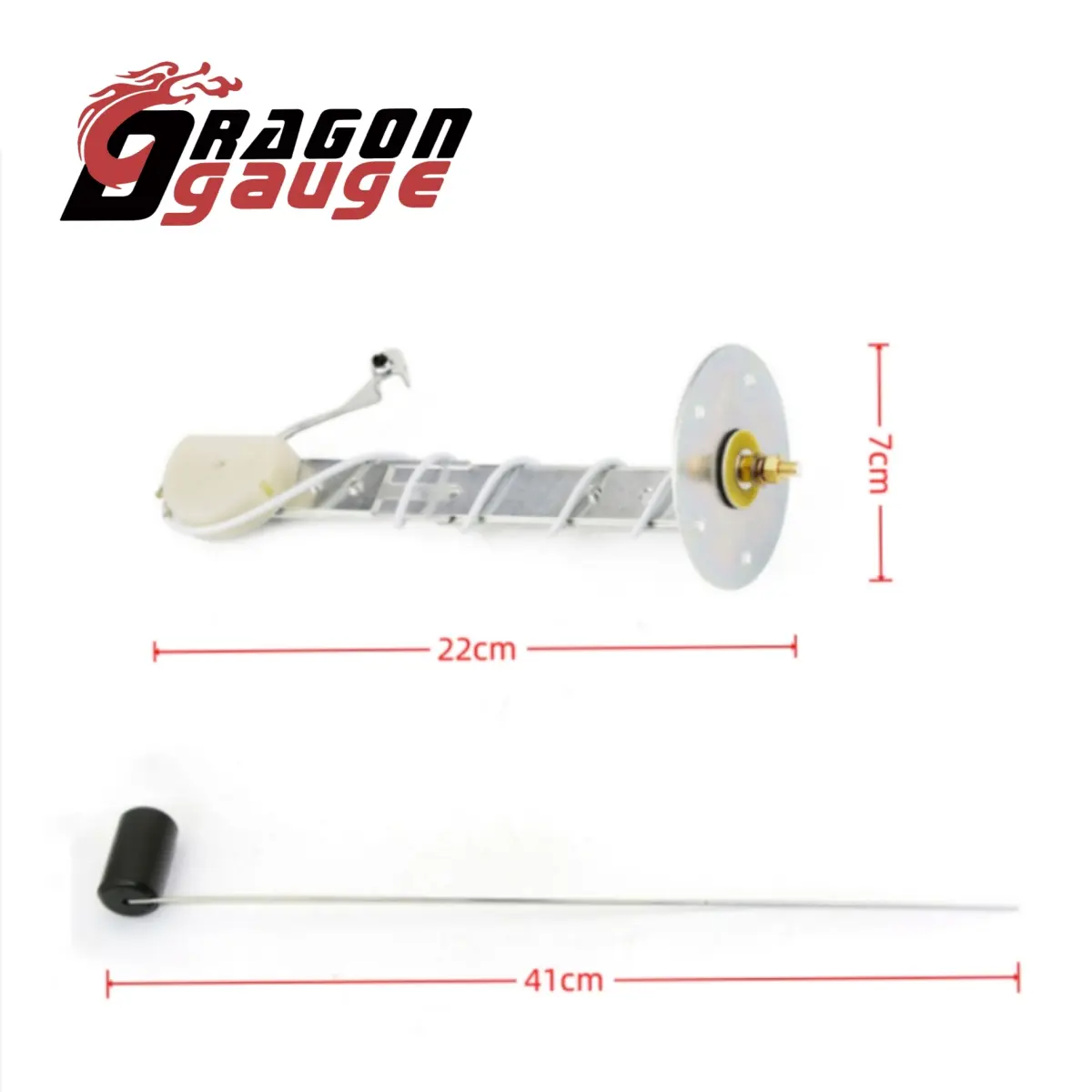

You may choose whether to purchase an oil float as needed.
