Wholesale 60mm Car Modifications Gauge With Alarm Function White Or Amber Backlight 620 Suppliers, Supplier

Specification:

Boost gauge, water temperature gauge, oil temperature gauge, oil pressure gauge, exhaust temperature gauge，with sensor.（The air-fuel gauge does not come with a sensor, but one is available for purchase.）

The sensor thread size is 1/8ZG.

Alarm lights and audible alarms can be set within the specified range.

All gauges come with gauge brackets, eliminating the need for separate purchases.

Features amber and white backlighting options that can be adjusted to suit your preferences.

The goods include installation instructions in English.

Send Inquiry

Product Description

📋 Introduction

Brand DRAGON GAUGE
Model 620
Display Pointer
Screen Size 2.36 inches (60mm)
Application Range All 12V Vehicles (Tachometer for 4/6/8 cyl gasoline only)
Operating Voltage 9V-16V
Warranty Period 1 Year

⚙️ Parameter Range

Tachometer 0 ~ 10x1000RPM
Boost Gauge PSI -30 ~ 30PSI
Boost Gauge 2Bar -1 ~ 2*100KPA
Boost Gauge 3Bar -1 ~ 3*Bar
Water Temp Gauge 50 ~ 150℃
Oil Temp Gauge 50 ~ 150℃
Oil Press Gauge 0 ~ 10*100kPa
Voltmeter 8 ~ 18V
Air Fuel Ratio Gauge 20:1 ~ 10:1
Exhaust Temp Gauge 2 ~ 12×100℃

⚠️

Note on Stepper Motors:

These gauges are equipped with stepper motors and must be powered on to return to zero. It is completely normal if the pointer does not sit at zero when the power is disconnected.

🚗

Applicable Models:

Perfectly suitable for 12V gasoline vehicles. Please note that the tachometer variant is exclusively compatible with 4, 6, or 8 cylinder gasoline cars.

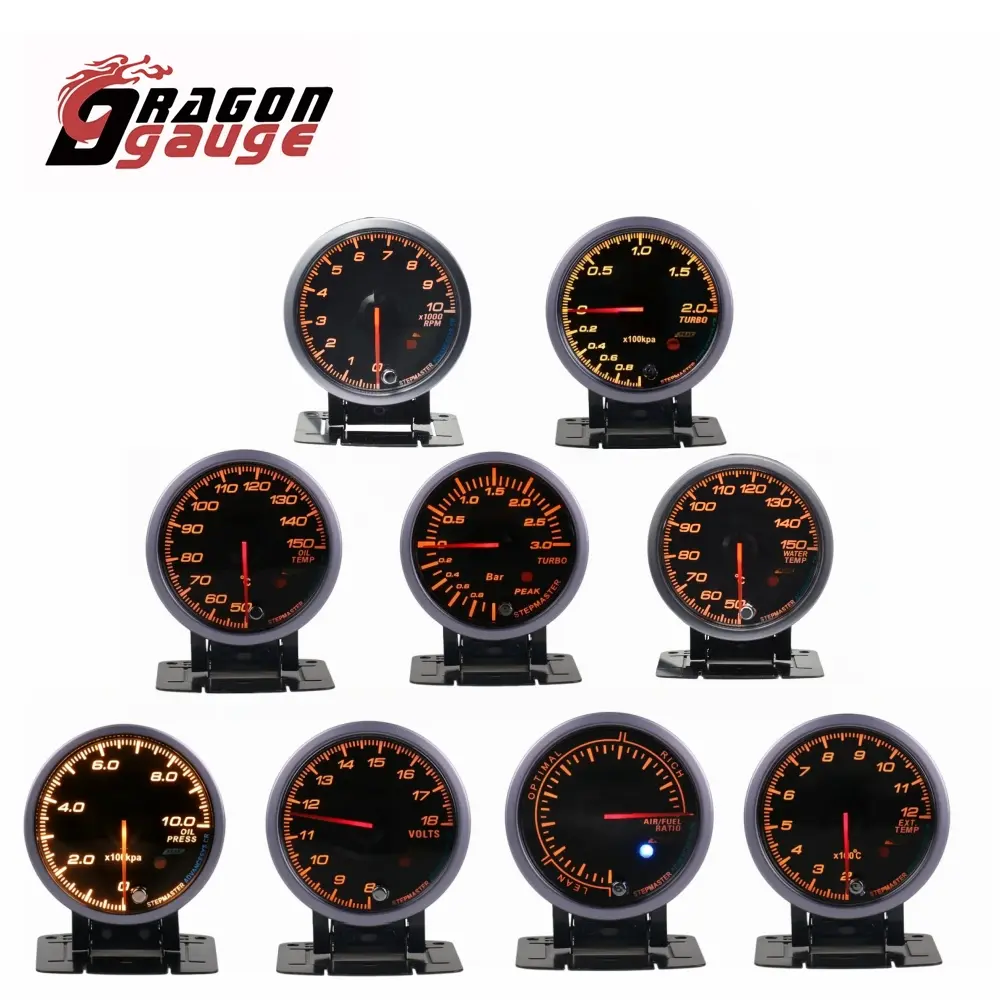

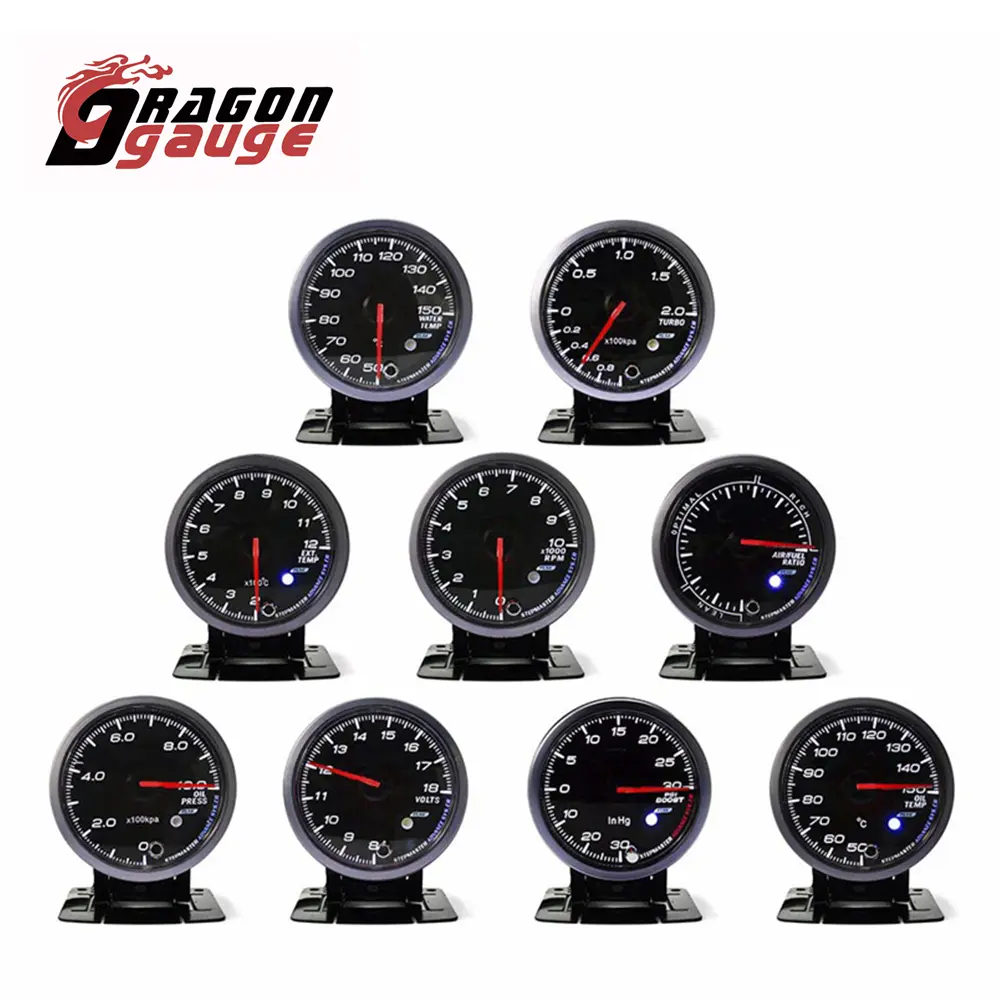

📊 Product Visuals & Variations

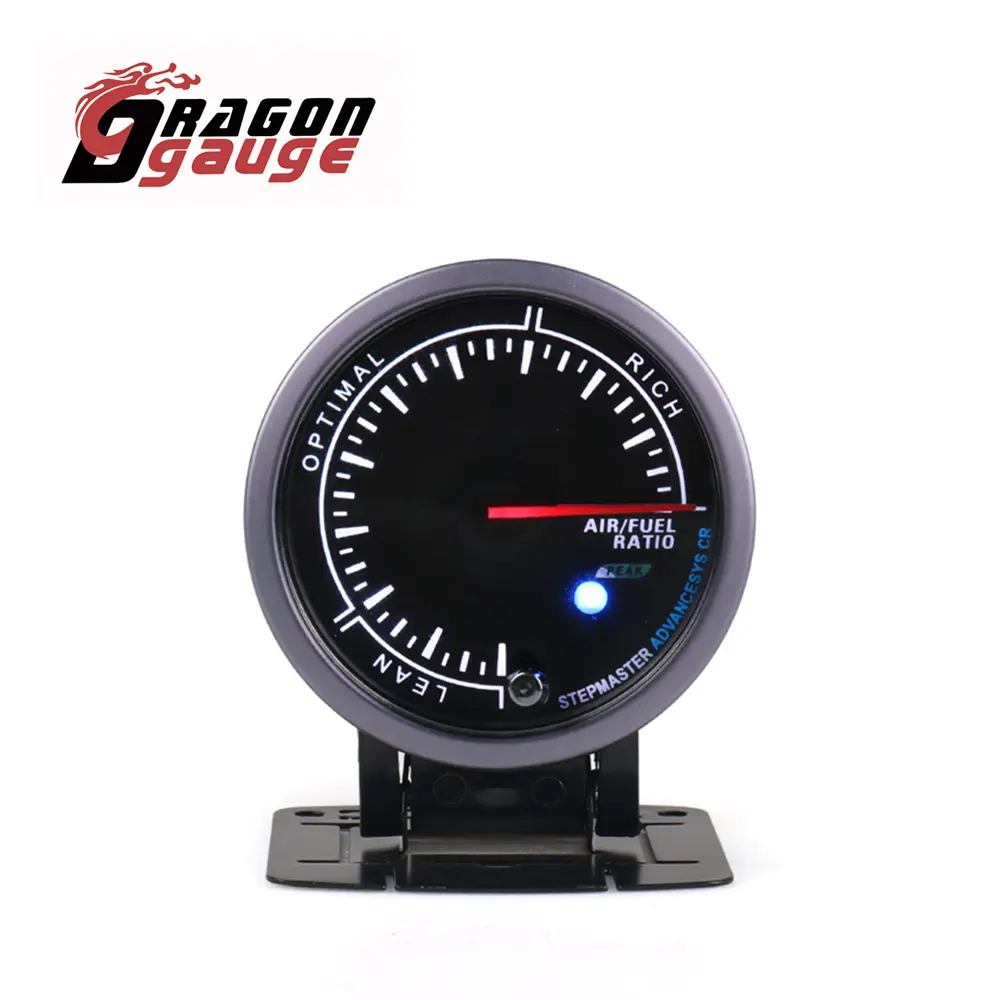

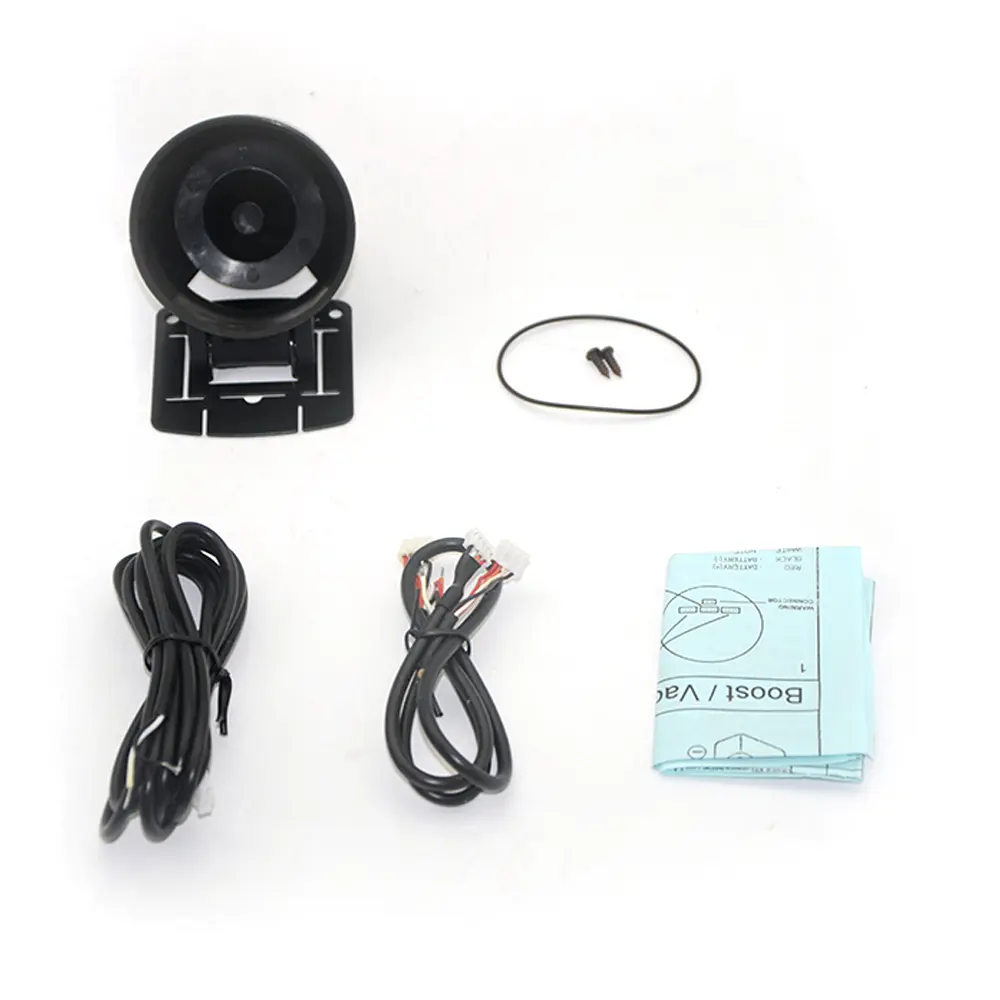

Air Fuel Ratio Gauge

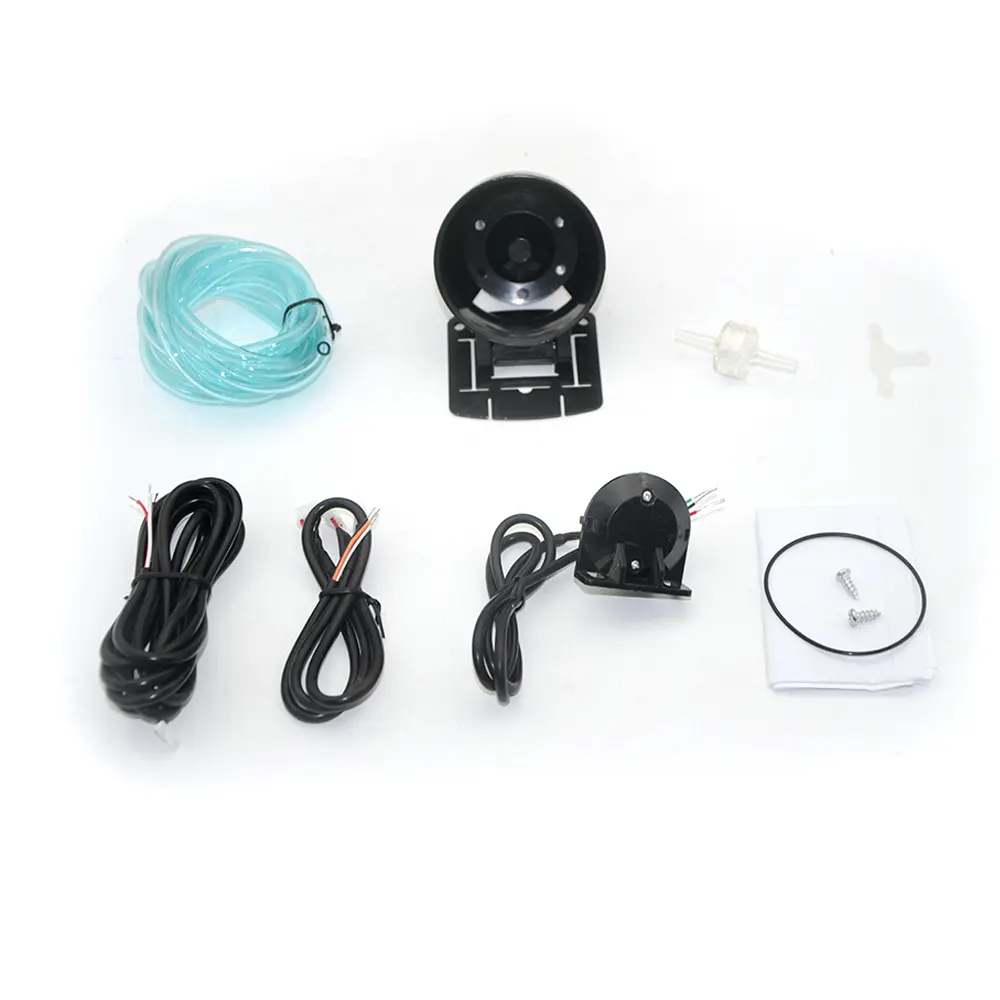

Boost Gauge Bar

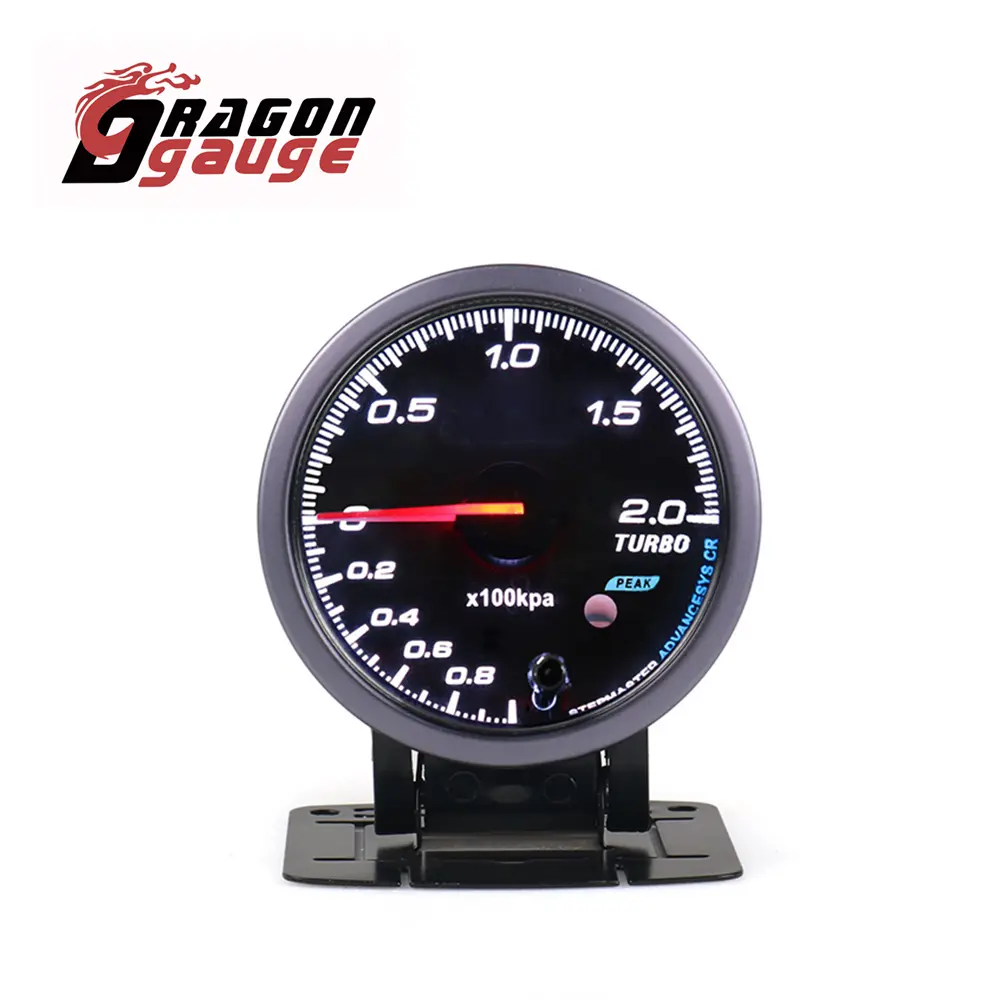

Boost Gauge KPA

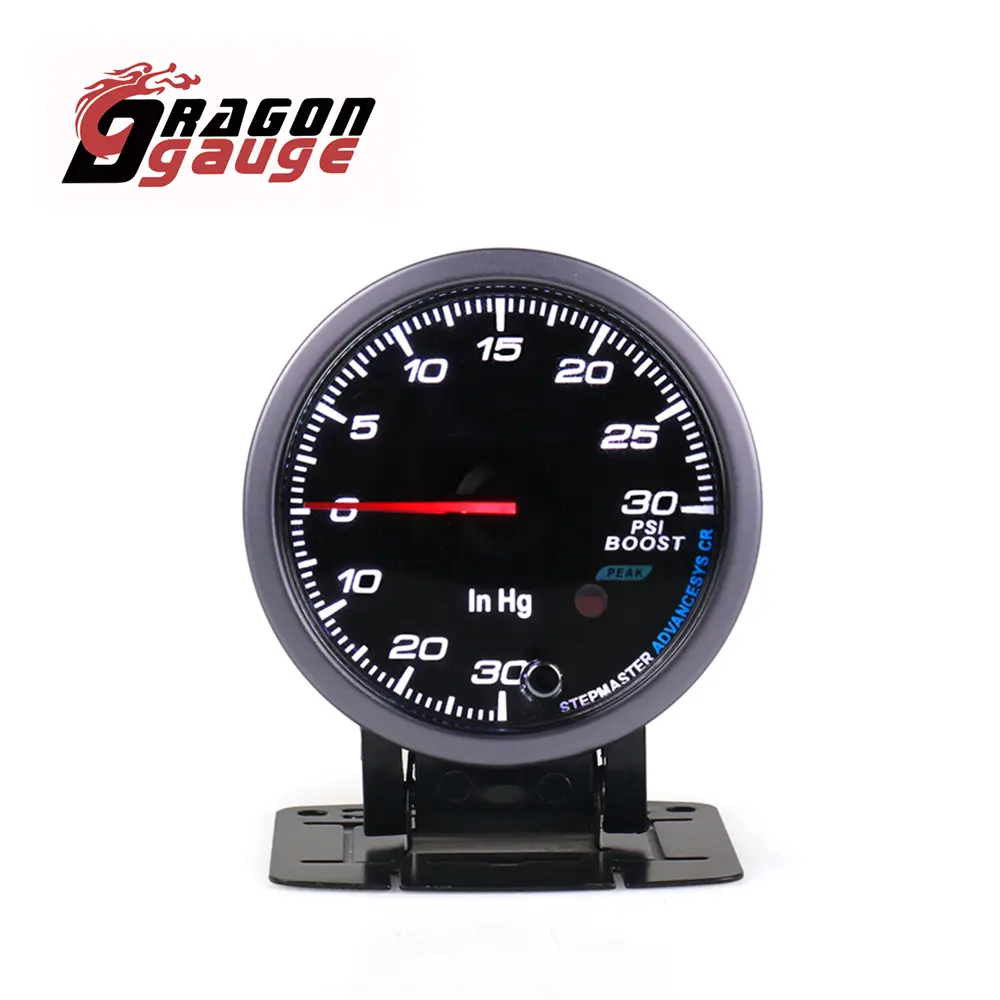

Boost Gauge PSI

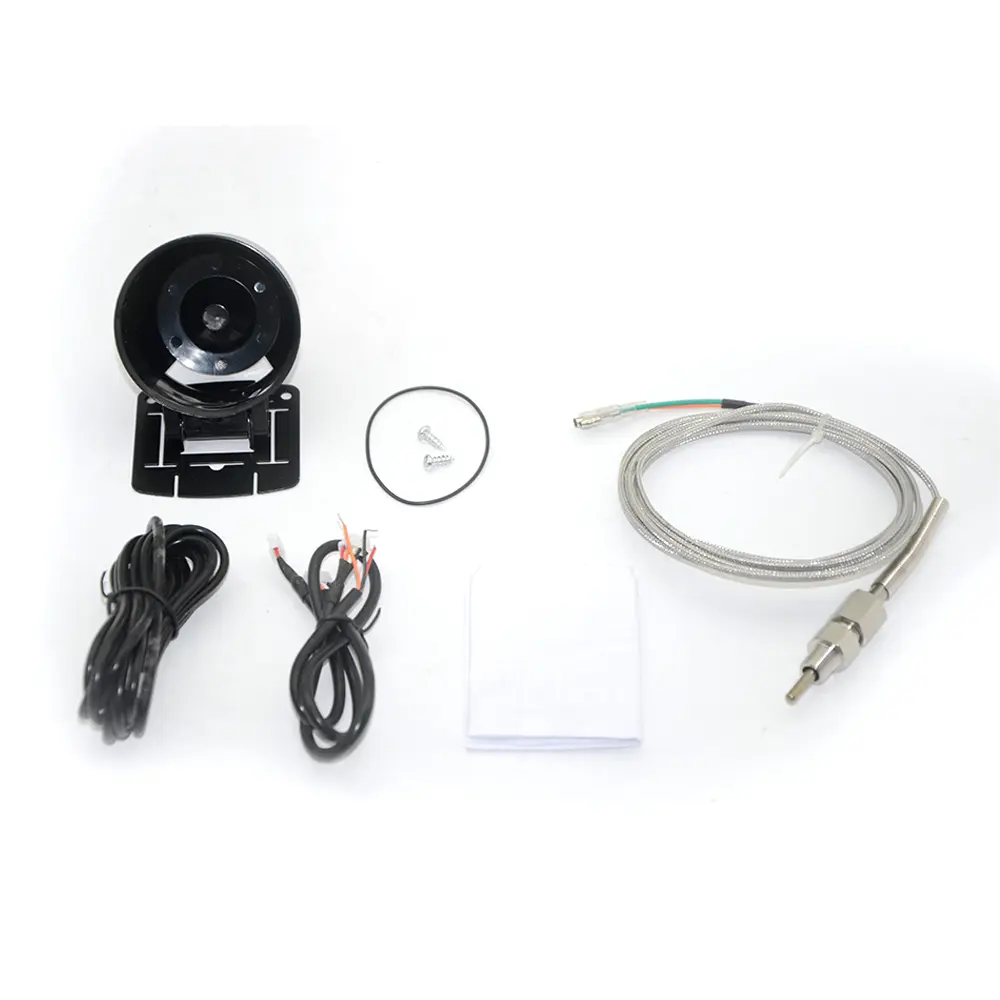

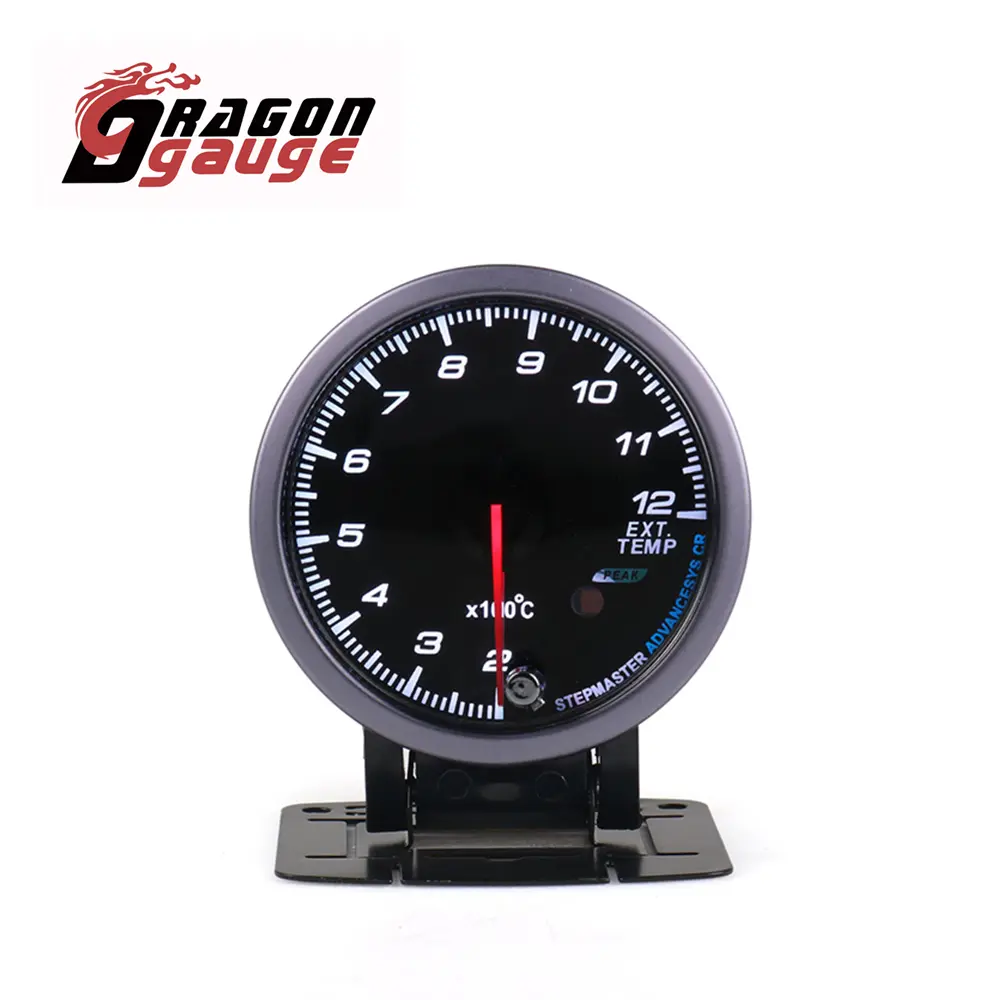

Exhaust Temperature Gauge (EGT Gauge)

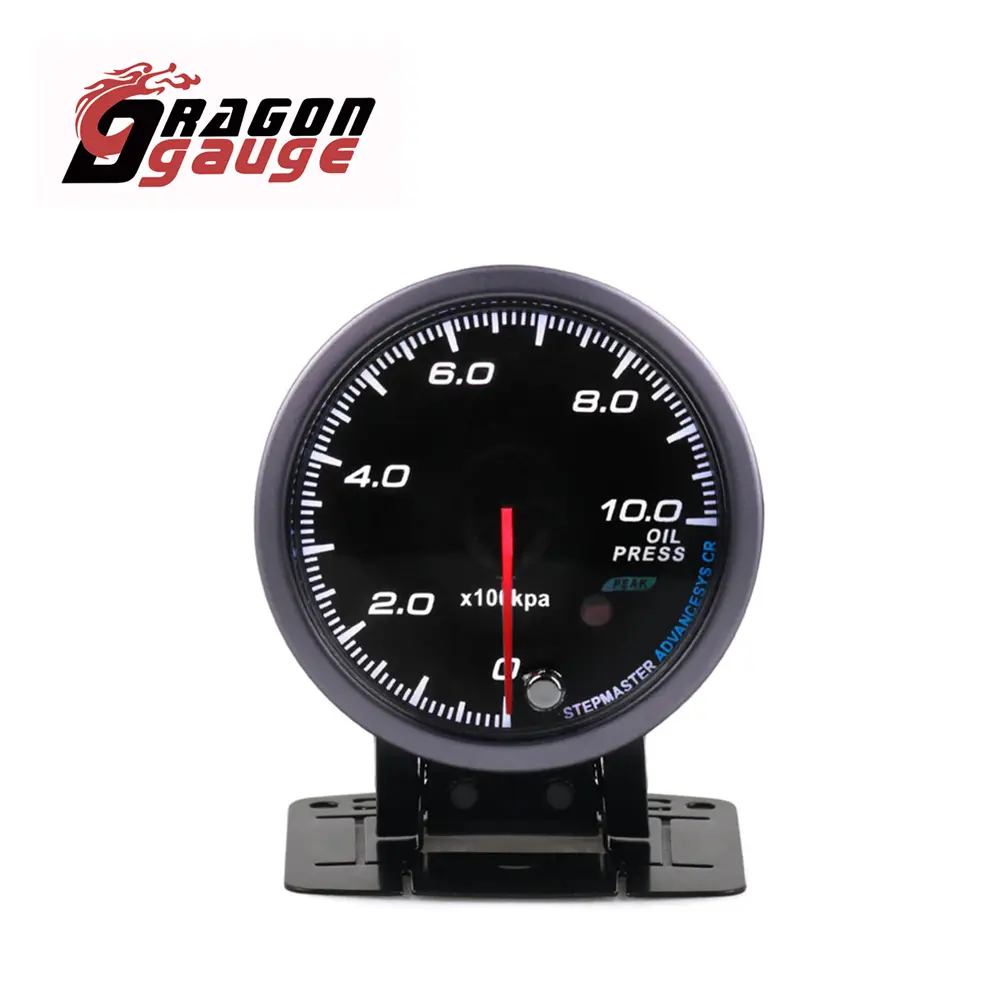

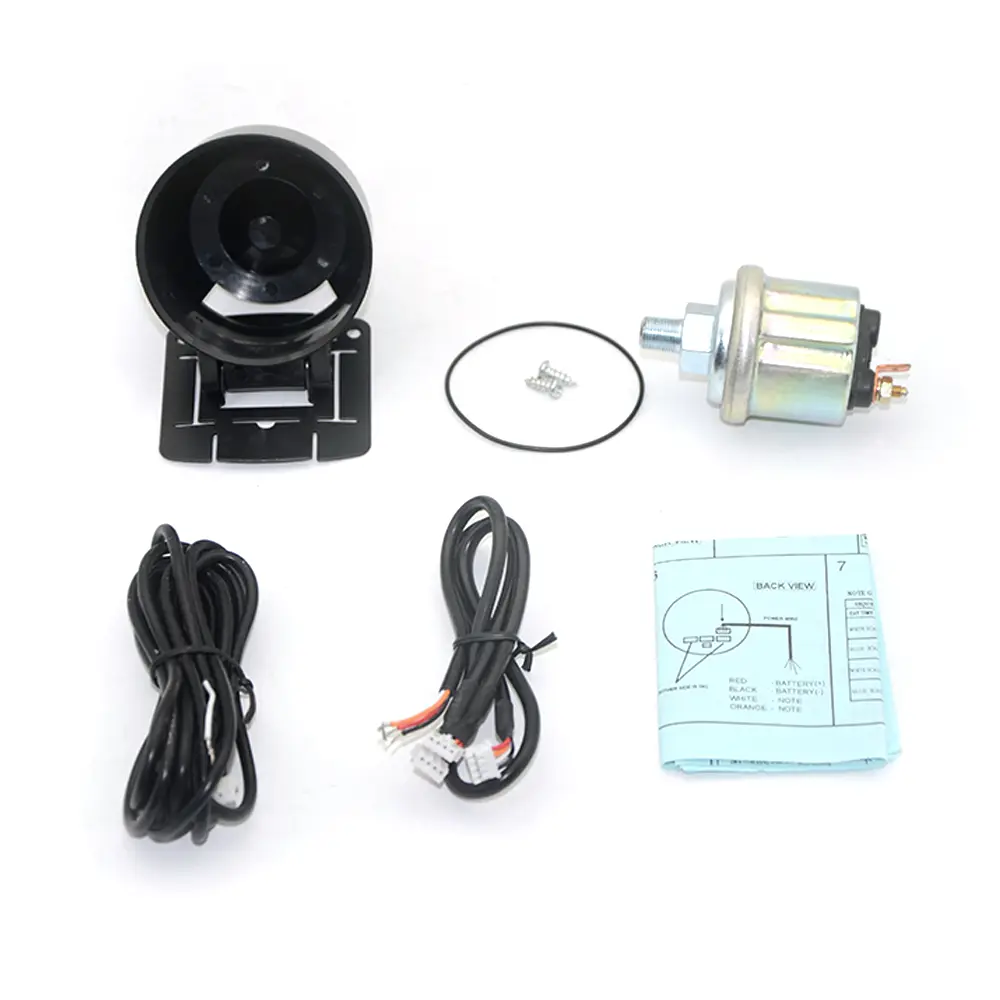

Oil Pressure Gauge

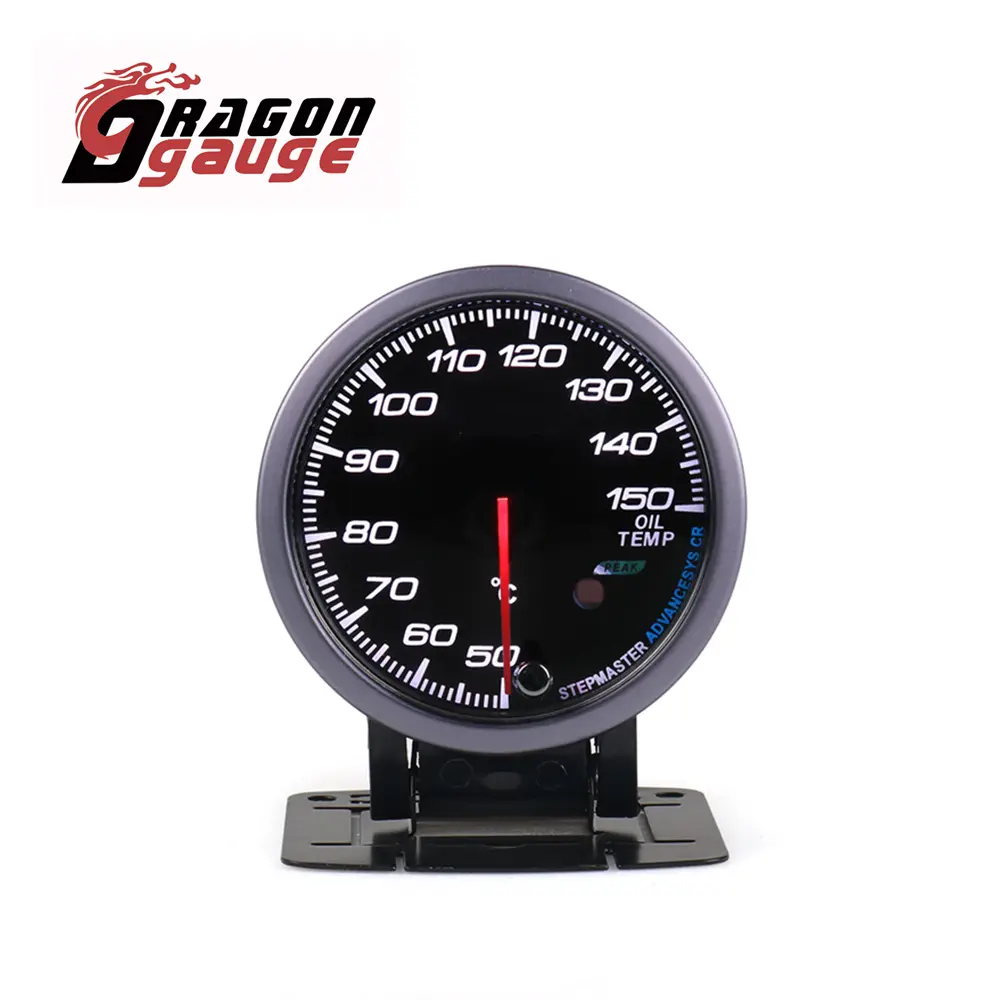

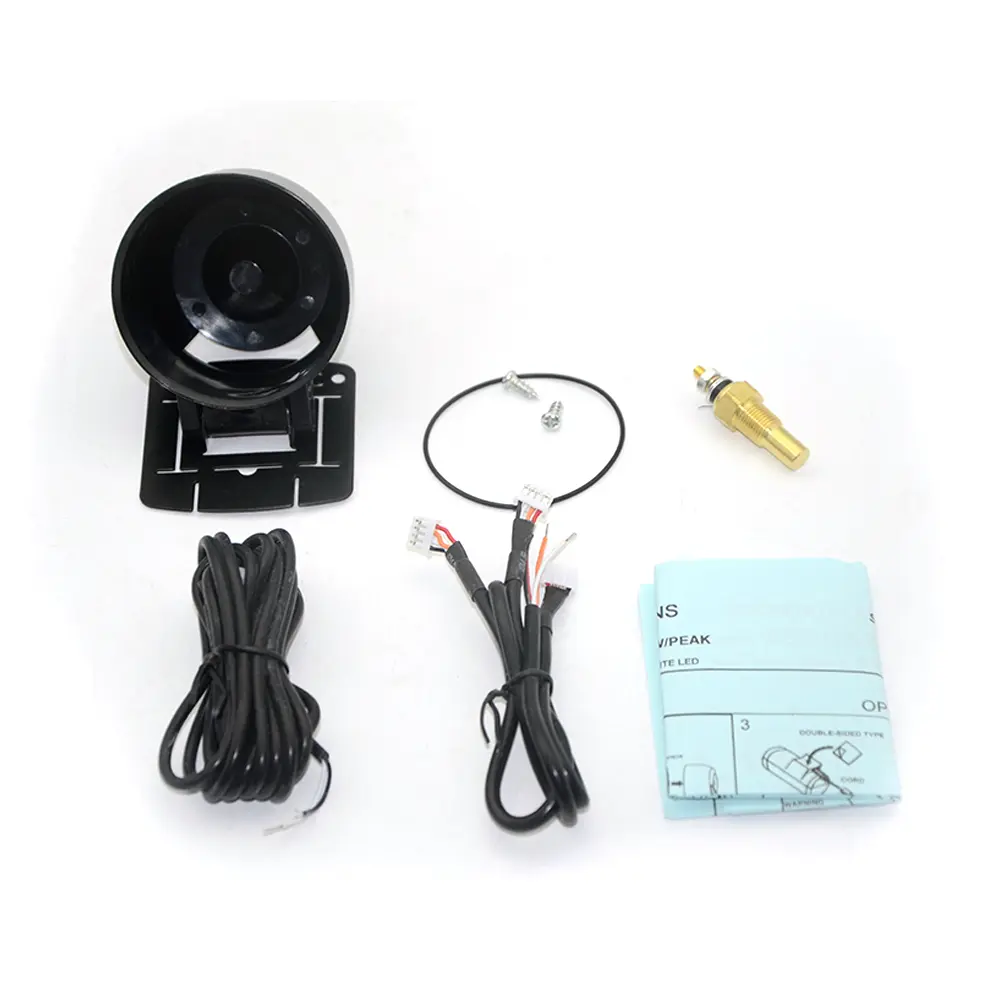

Oil Temp Gauge

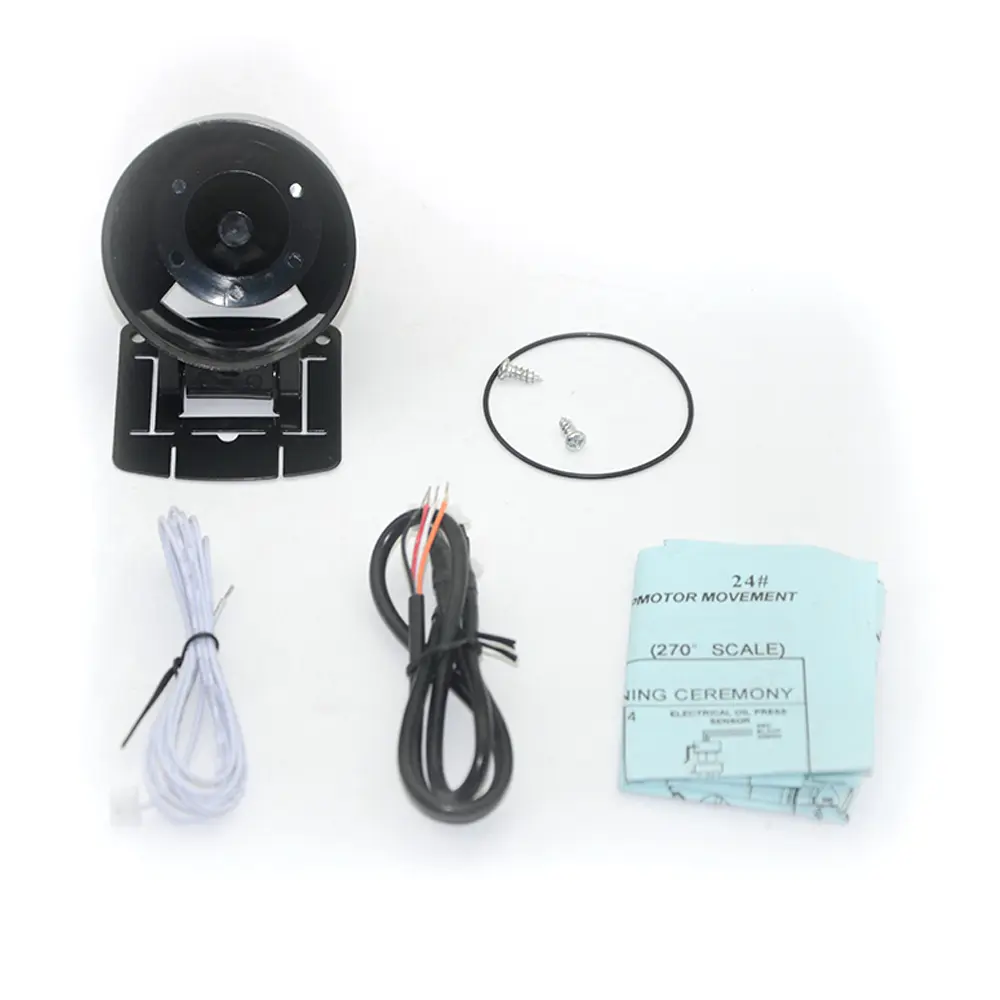

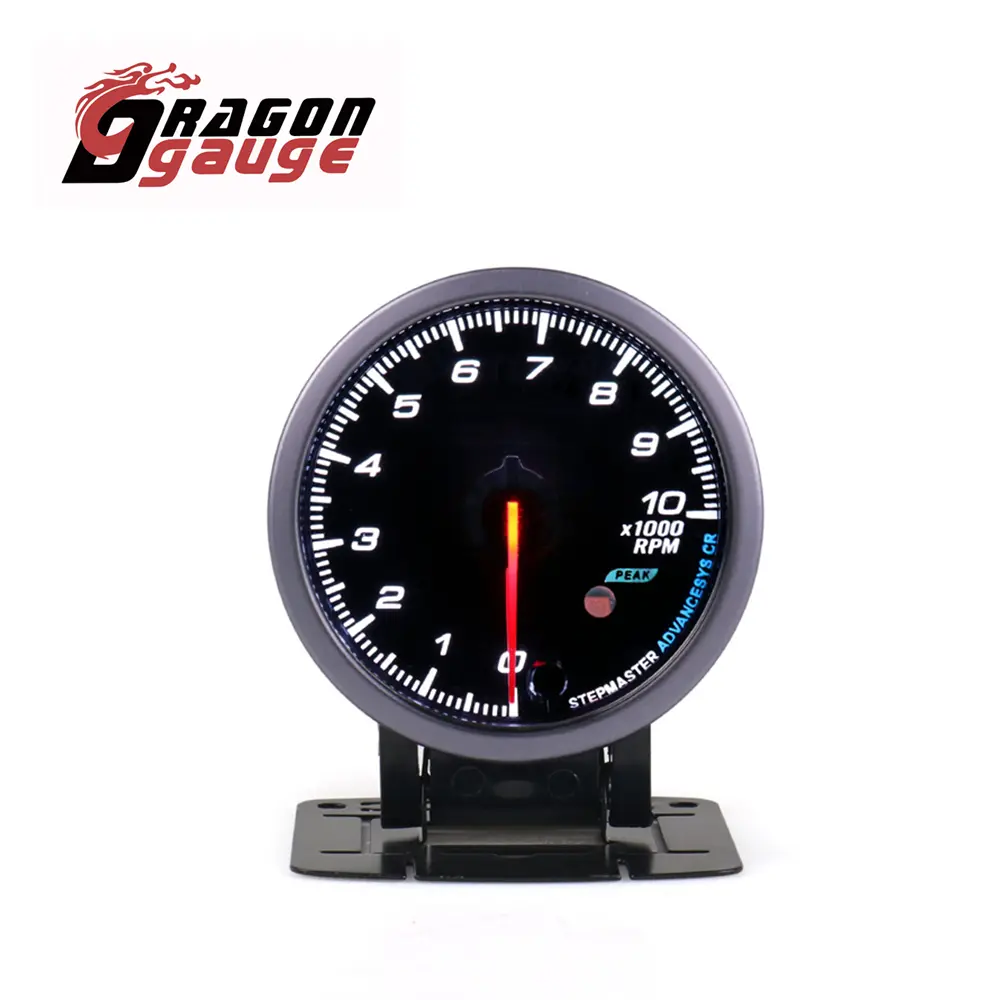

Tachometer (RPM Meter)

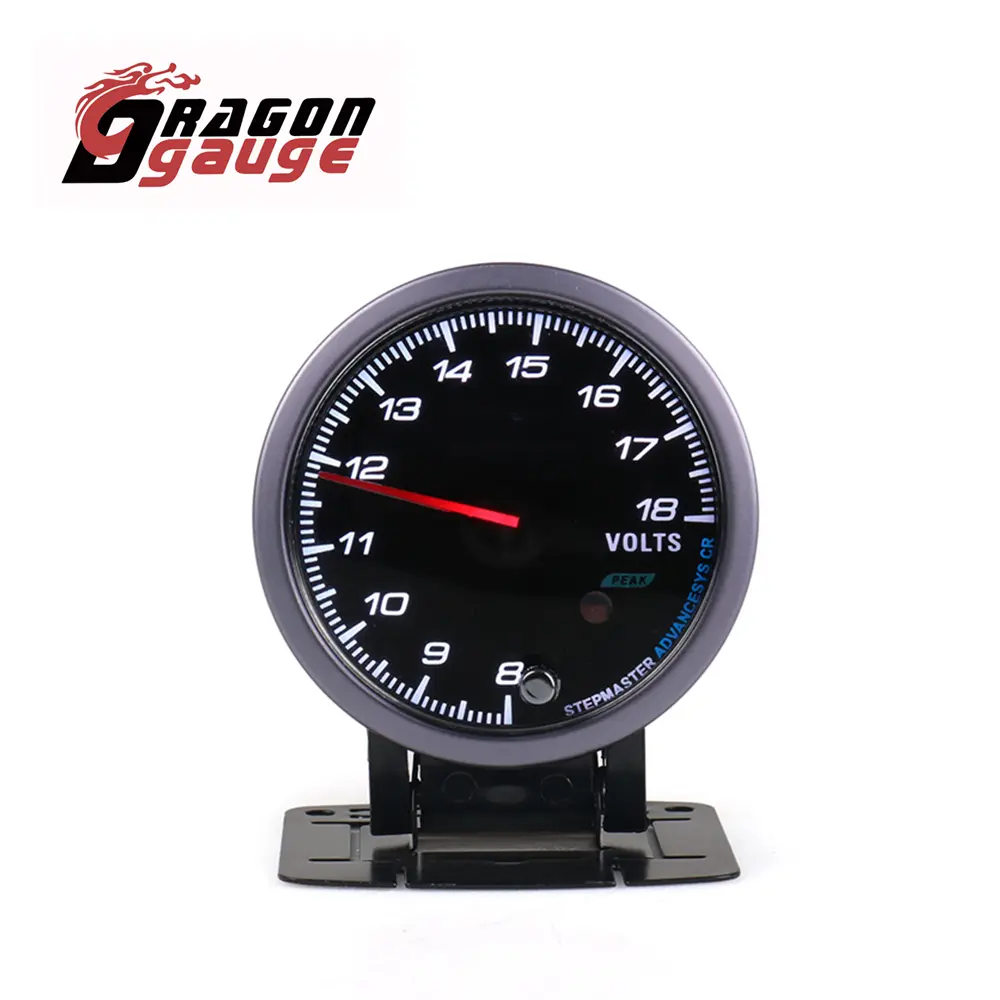

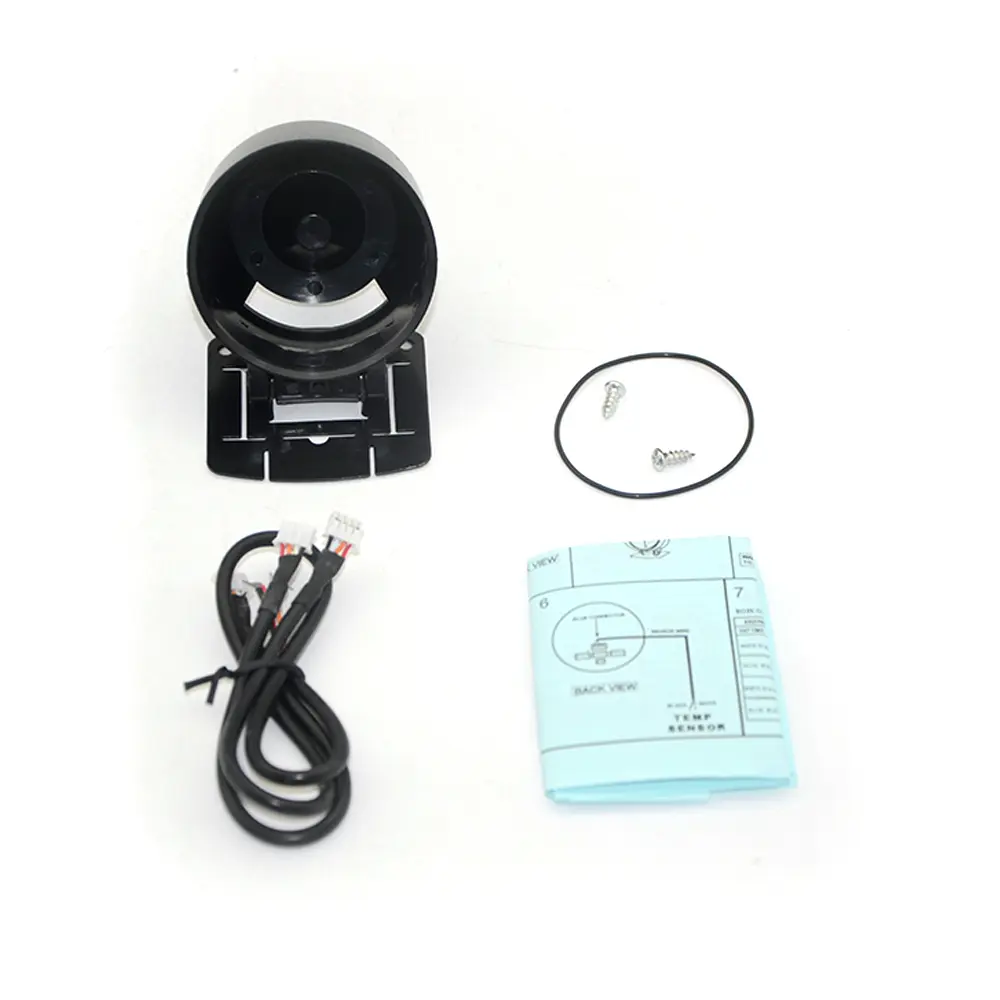

Voltmeter

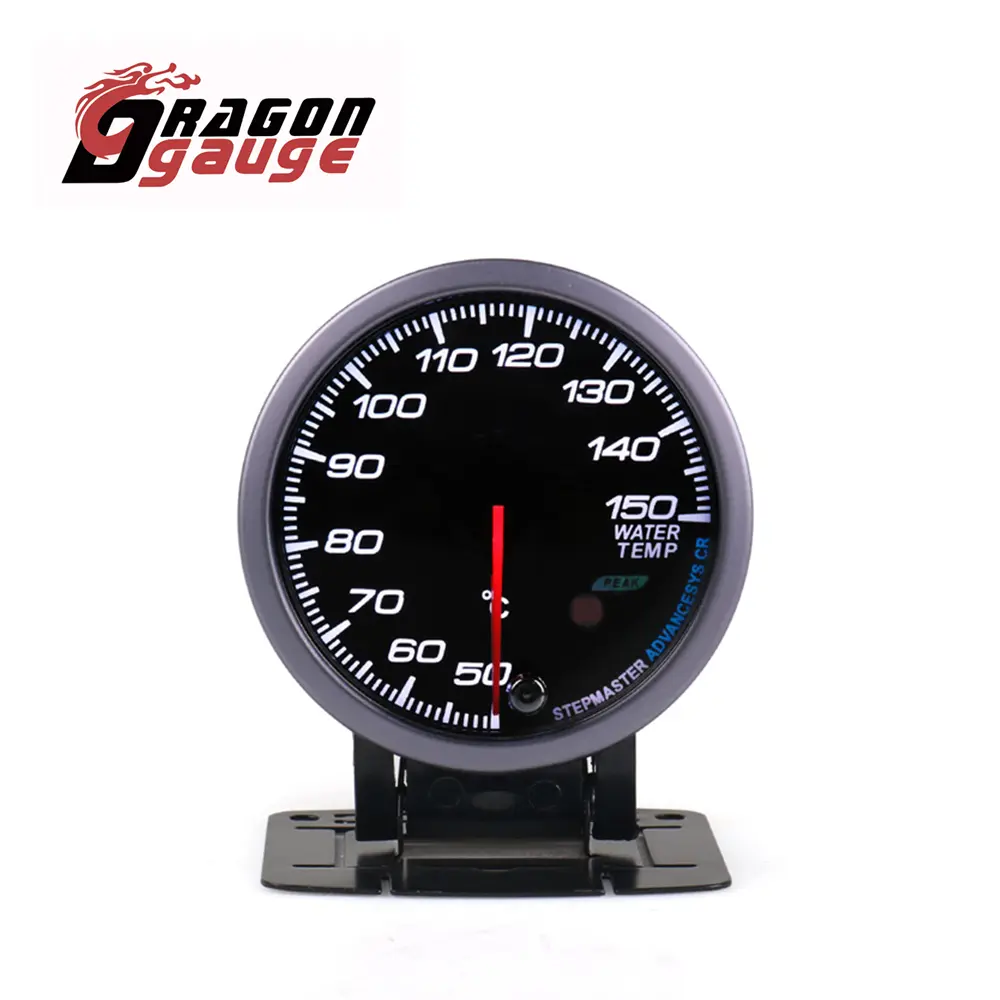

Water Temp Gauge

❓ Frequently Asked Questions

Q Why doesn't the gauge pointer return to zero when the vehicle is powered off?

These gauges utilize stepper motors. They require active electrical power to return to the zero position. It is completely normal for the pointer to remain off-zero when the system is powered down.

Q Can I install the tachometer on a diesel vehicle?

No, the tachometer model is designed specifically for 12V gasoline-powered vehicles and is only compatible with 4, 6, or 8 cylinder setups.

Q What is the operating voltage range for these gauges?

The working operating voltage range for all variants of these gauges is between 9V and 16V.

Q What is the physical size of the display face?

The display size is 2.36 inches (60mm), which offers standard compatibility and clear visibility for dashboard layouts.

Q Is there a warranty included with the DRAGON GAUGE 620 series?

Yes, all gauges within this product line come with a comprehensive 1-year warranty period from the date of purchase.

Q What options are available for measuring boost pressure?

The 620 series offers three separate boost options to match your preference: Boost PSI (-30~30PSI), Boost Bar (-1~3 Bar), and Boost KPA (-1~2*100KPA).
