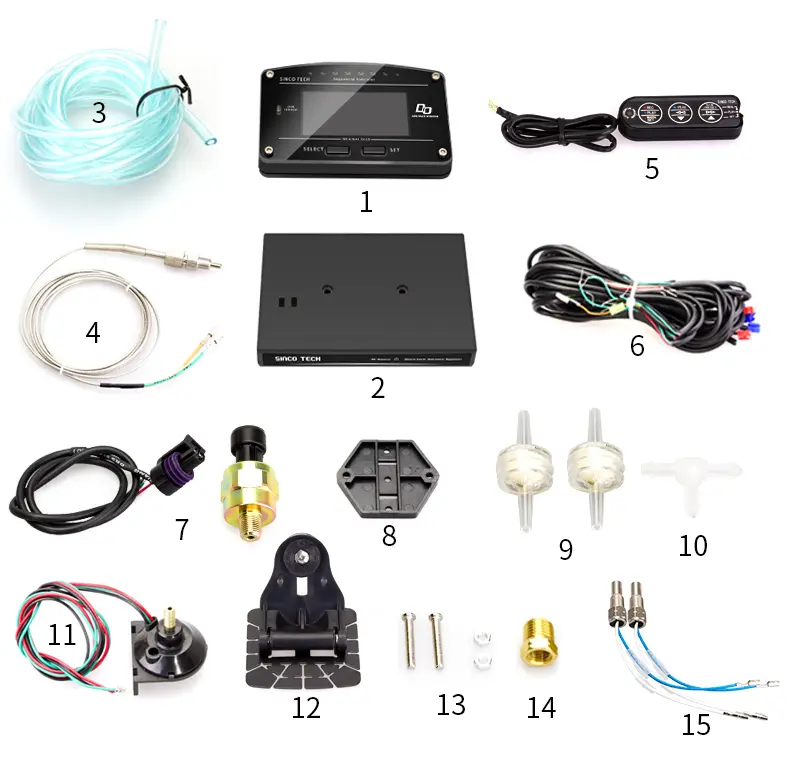

Custom 10 in 1 Race Dash Panels OLED Digital Display Dashboard with Sensor Kit SincoTech DO907 Manufacturers, Factory

1 / 5

Custom 10 in 1 Race Dash Panels OLED Digital Display Dashboard with Sensor Kit SincoTech DO907 Manufacturers, Factory

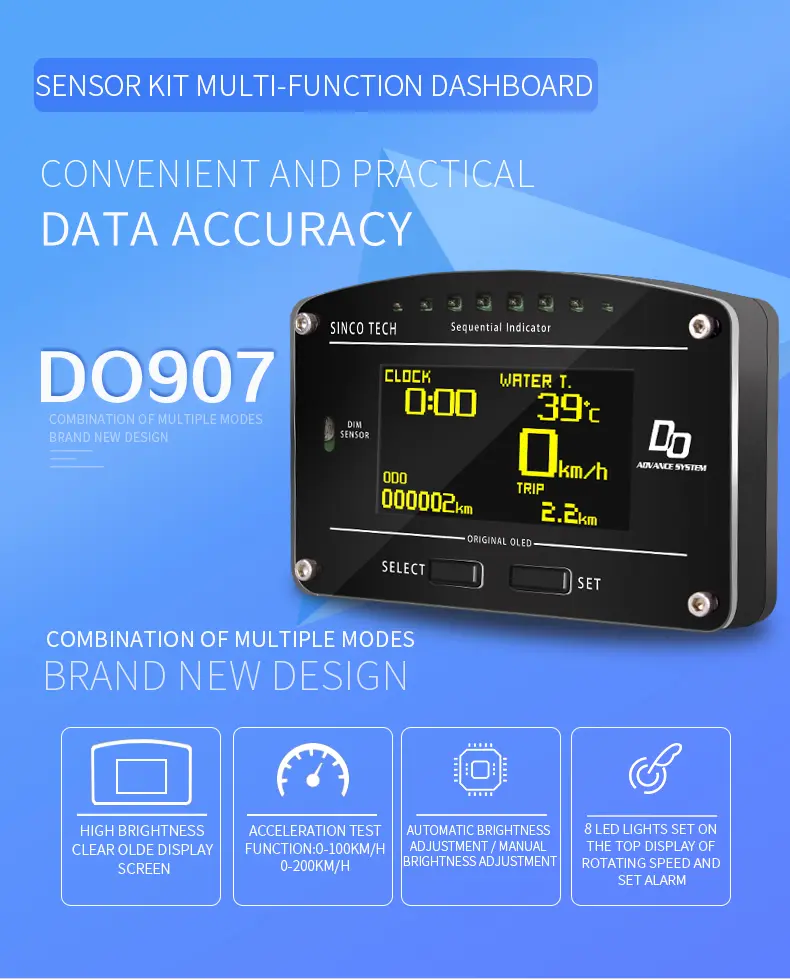

1. High-brightness and high-definition OLED display, which can adjust the brightness automatically or manually.

2. Covers 12 kinds of important parameter data of racing cars, bid farewell to the cumbersome multi-instrument mode, the application is more convenient..

3. Can set RPM/Boost/Water Temp/Oil Temp/Oil Press/Air-Fuel Ratio/ Exhaust Temp alarm reminder function, through the sound and 8 LED indicators to remind.Universal OBDll Compatibility:Seamlessly integrates with vehicles meeting OBDII standards for a customizable dashboard experience.

Send Inquiry

Product Description

Product Description Product Details

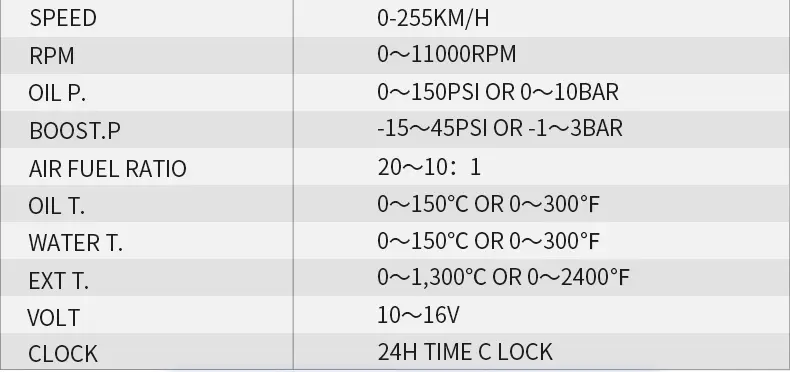

Parameter Range

Speed0-255KM

RPM0~12000 RPM

Boost Range-15~45PSI or -1~3BAR

Water Temperature Range0~150°C or 0~300°F

Oil Temperature Range0~150°C or 0~300°F

Oil Pressure Range0~150 PSI or 0~10 BAR

Voltage10~16V

Air-Fuel Ratio20:1~10:1

Exhaust Temperature Range0~1300°C or 0~2400°F

Clock24H

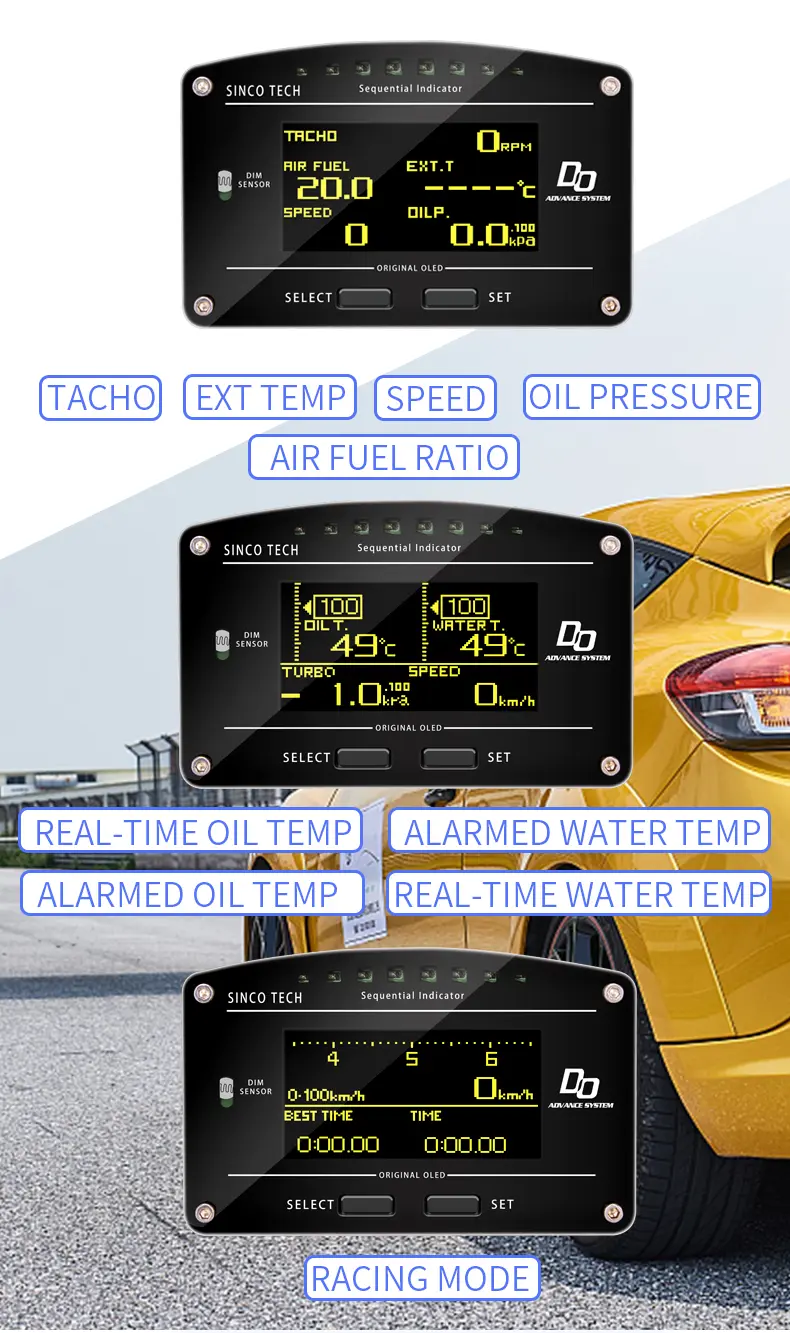

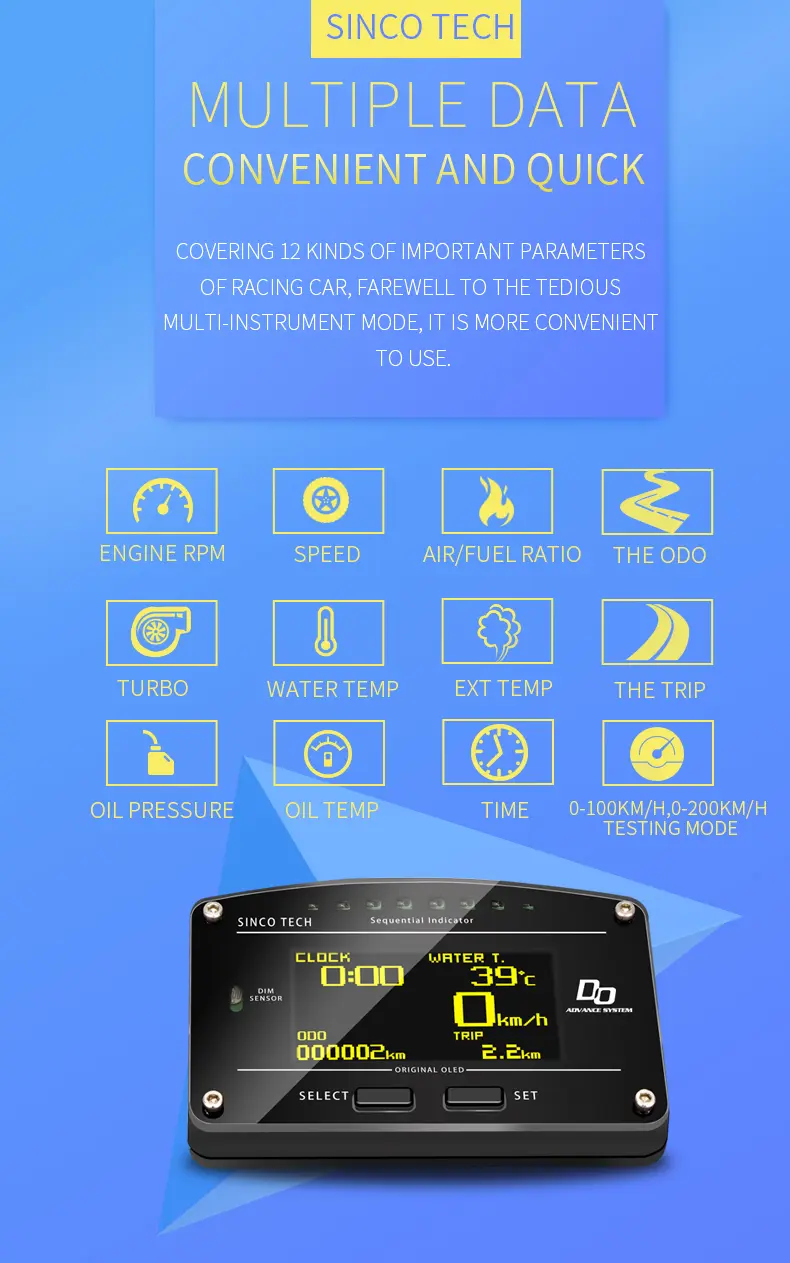

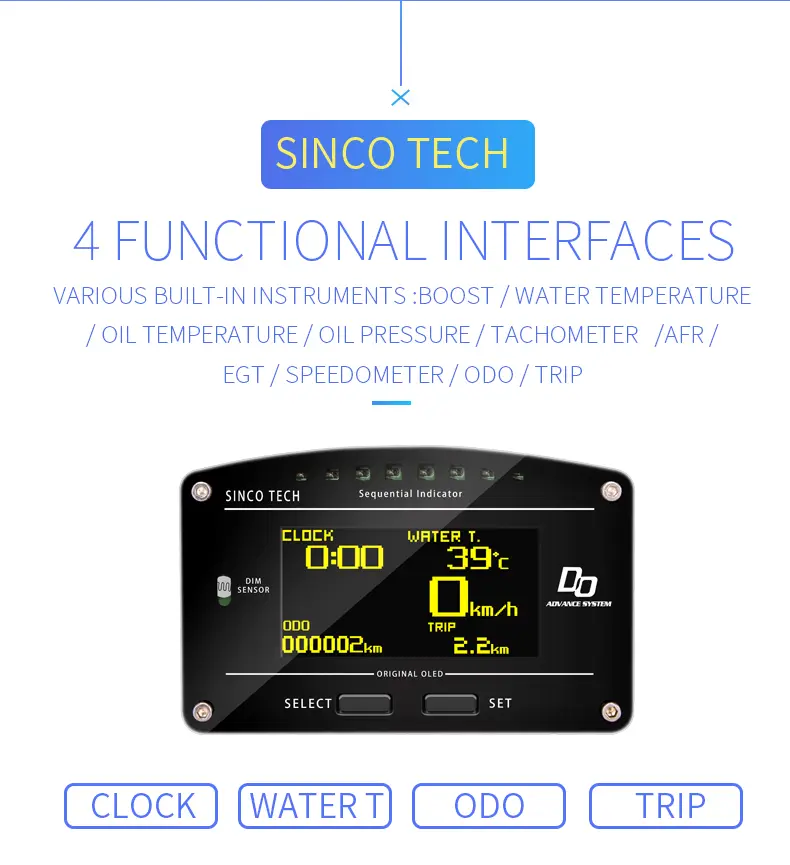

Display Content

1. RPM

2. Speed

3. Air-Fuel Ratio

4. Total Mileage

5. Turbo

6. Water Temp

7. Acceleration Test

8. Subtotal Mileage

9. Oil Pressure

10. Oil Temp

11. Time

12. Exhaust Temp

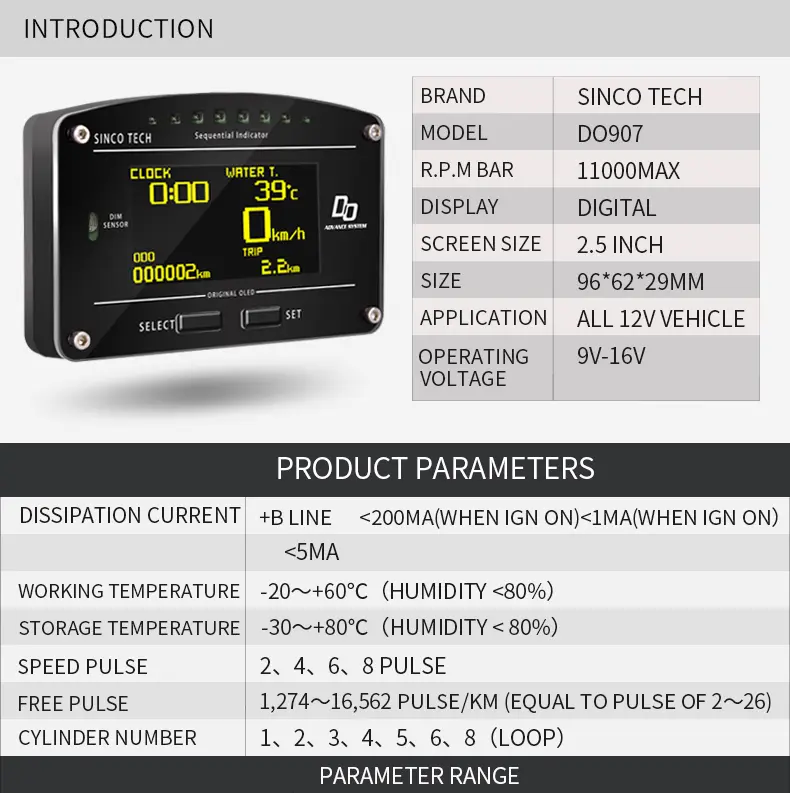

Parameters

Dissipation Current+B Line <200MA (WHEN IGN ON) <1MA (WHEN IGN ON) <5MA

Working Temp-20~+60℃ (humidity <80%)

Storage Temp-30~+80℃ (humidity <80%)

Vehicle Speed Pulse2, 4, 6, 8 pulse

Pulse Free1,274~16,562 pulse/KM (Equal to pulse of 2~26)

Cylinder Number1, 2, 3, 4, 5, 6, 8 (LOOP)

Fitment

All 12V Vehicles

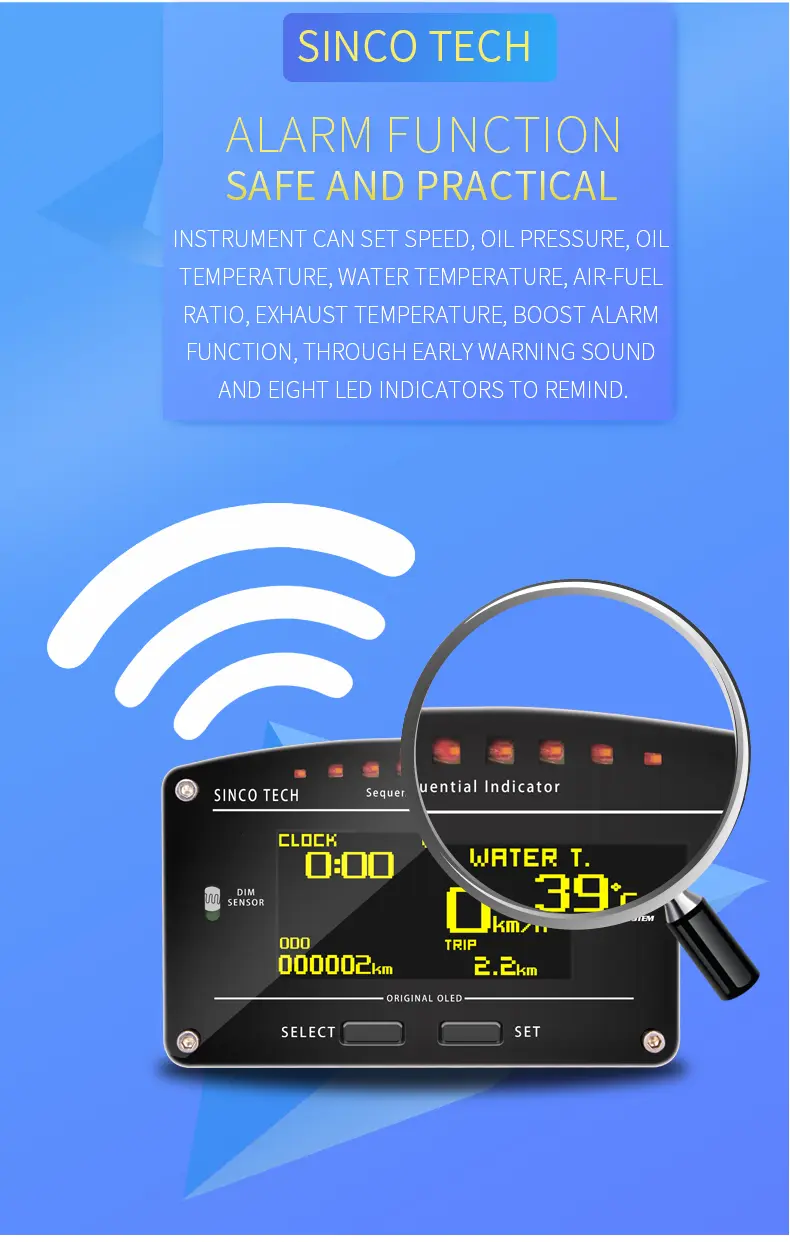

Alarm Setting

Monitored Parameters: RPM, Water Temp, Oil Temp, Oil Pressure, Turbo, Air-Fuel Ratio, Exhaust Temp.

Alert Methods: Warns via audible alerts and indicator lights, featuring a built-in buzzer and 8 high-visibility LED indicators.

Important Tips

1. We provide a one-year warranty (excluding damage caused by human factors). All warranty claims require proof of professional installation.

2. Manual measurement, please allow 1~3 mm error. Due to the difference between different displays, the picture may not reflect the actual color of the item. We guarantee that the style is the same as shown in the picture. Please understand, thank you!

Frequently Asked Questions

What type of vehicles is this gauge compatible with?

This multi-function digital gauge is compatible with all 12V vehicles. It also supports engine configurations of 1, 2, 3, 4, 5, 6, and 8 cylinders.

What critical indicators can this gauge display?

The gauge displays a wide range of metrics including RPM, Vehicle Speed, Air-Fuel Ratio, Water and Oil Temperatures, Oil Pressure, Turbo Boost, Exhaust Temperature, Voltage, and Mileage.

How does the alarm system work?

The gauge features visual and audible alert settings. When monitored limits (like RPM, Water Temp, or Oil Pressure) are exceeded, it warns the driver via a built-in buzzer sound and 8 prominent LED indicators.

What is the operating and storage temperature range for this product?

The operating temperature range is -20 to +60℃, while the storage temperature range is -30 to +80℃. Both ranges require humidity levels to remain below 80%.

What is the warranty policy?

We offer a one-year warranty on this product, which excludes damage caused by human factors. Please note that proof of professional installation is strictly required to process any warranty claims.
