SPEED, TACHO, WATERTEMP, OIL. TEMP, OIL PRESSURE, BOOST, VOLT Warns via audible alerts and indicator lights, featuring a buzzer and 8 LED indicators.
Users can choose to adjust the brightness manually or automatically according to the current environment, providing three brightness levels and an automatic sensitivity option.
1. We provide a one-year warranty (excluding damage caused by human factors). All warranty claims require proof of professional installation.
2. Manual measurement, please allow 1~3 mm error, thank you. Due to the difference between different displays, the picture may not reflect the actual color of the item. We guarantee that the style is the same as shown in the picture. Please understand, thank you!

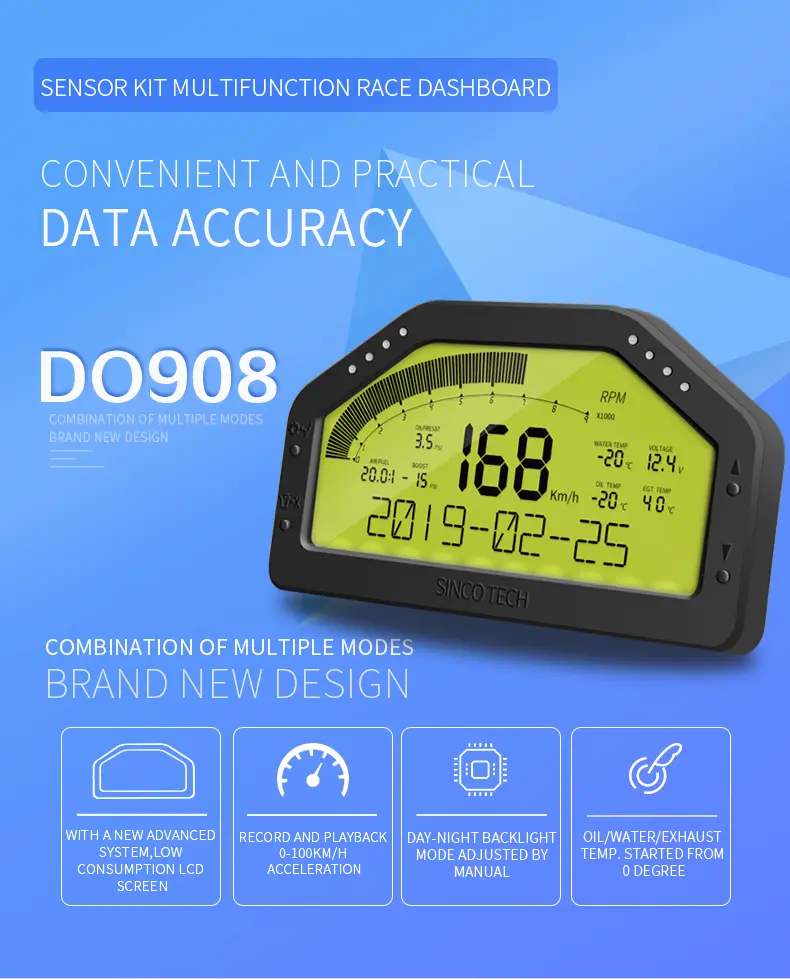

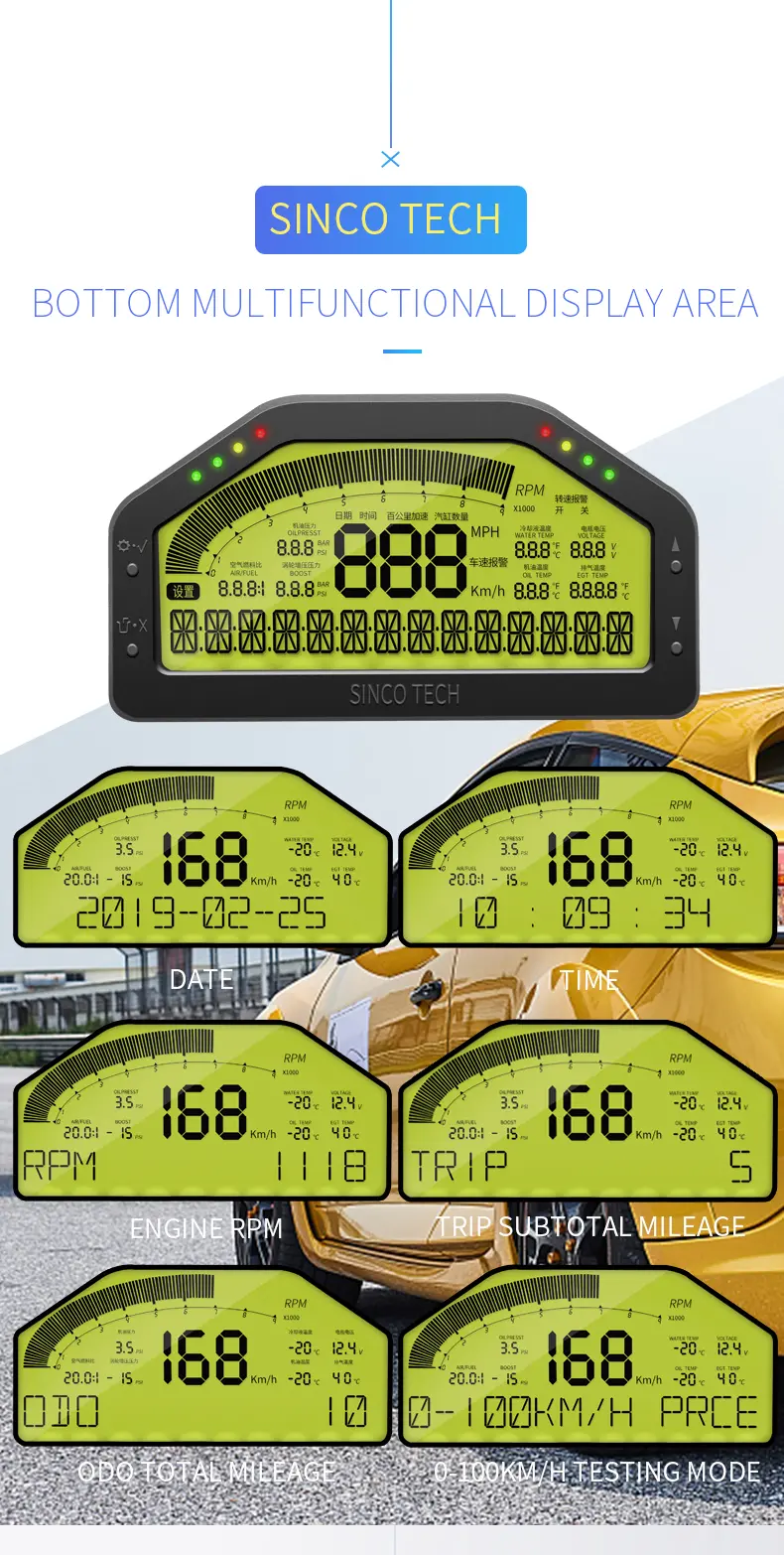

What functions can be displayed on this dashboard?
This multi-functional dashboard supports 9 key functions: RPM, Speed, Turbo, Water Temp, Oil Temp, Oil Pressure, Voltage, Air Fuel Ratio, and Exhaust Temperature (EXT Temp).
How does the warning and alarm system work?
It includes built-in alarm settings for Speed, Tacho, Water Temp, Oil Temp, Oil Pressure, Boost, and Voltage. Alerts are delivered via both audible buzzers and 8 integrated LED indicator lights.
Can I adjust the brightness of the screen?
Yes, the brightness can be adjusted either manually or automatically depending on your environment. It offers three distinct brightness levels alongside an automatic sensitivity option.
What is the warranty coverage for this product?
We provide a one-year warranty on this device. Please note that this warranty does not cover damage caused by human factors, and all warranty claims require proof of professional installation.

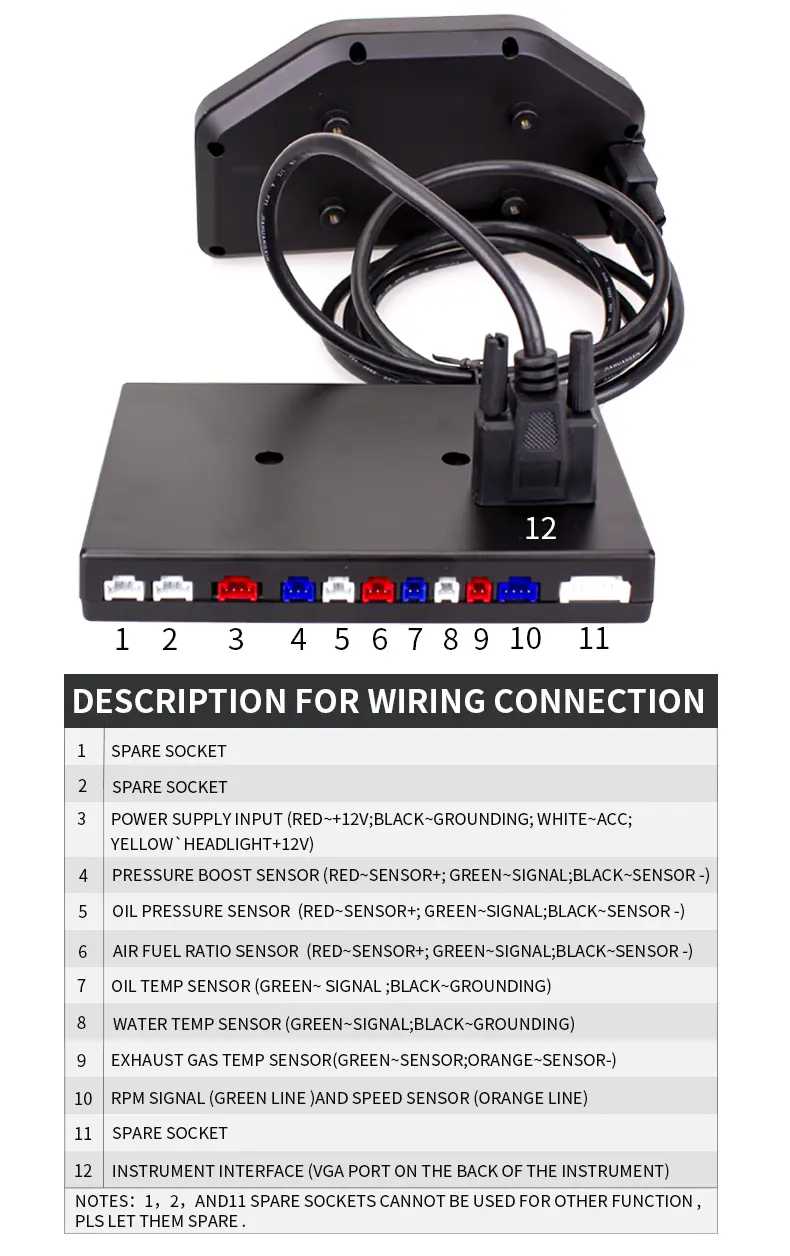

Are there any specific wiring instructions to pay attention to?
Yes, when wiring the unit, ensure that spare sockets 1, 2, and 11 are left empty. They cannot be used for other functions.

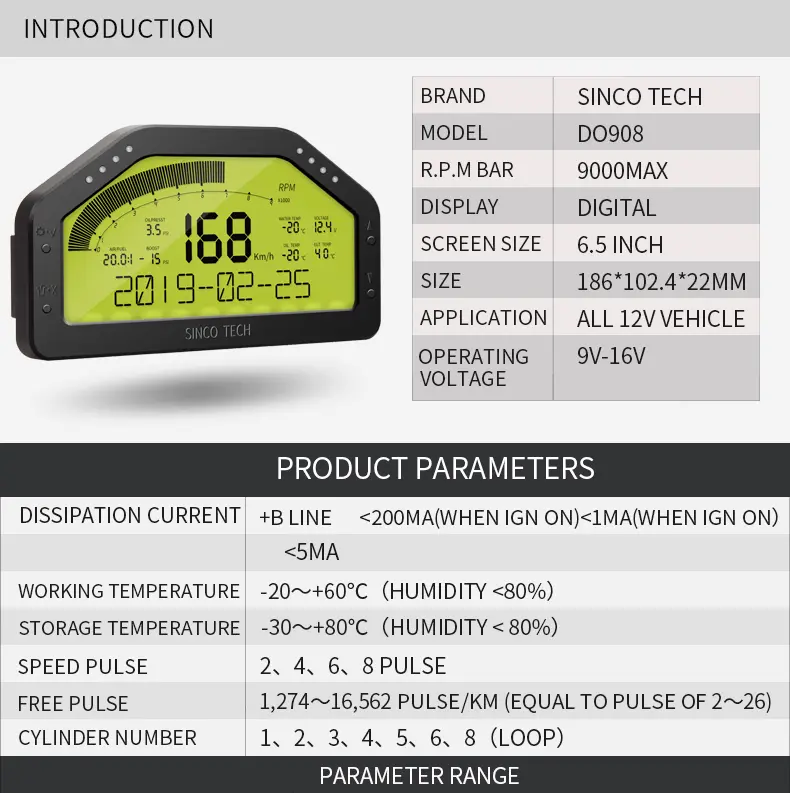

What parameters can the sensors measure?

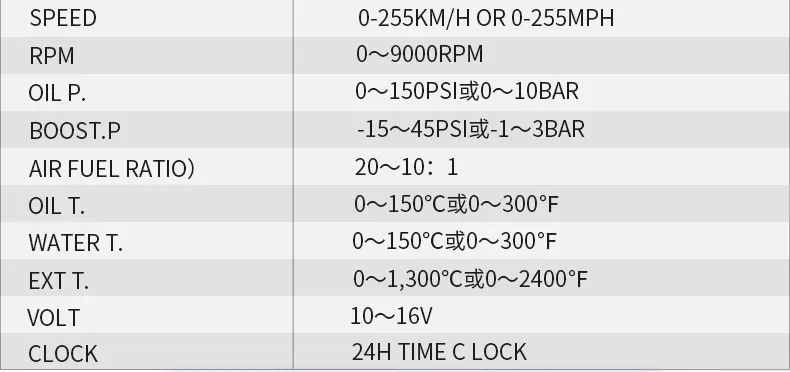

The parameters include: Speed up to 255 KM/H or MPH, RPM up to 9000, Boost from -15 to 45 PSI, Water and Oil Temp from 0 to 150°C, Oil Pressure up to 150 PSI, Voltage from 10 to 16V, AFR from 20:1 to 10:1, and Exhaust Temp up to 1300°C.
