Custom Race Dashboard Colorful LCD Touch-Screen Multi-function Racing Dash Gauge with Full Sensor Kit SincoTech DO909 Suppliers, Factory

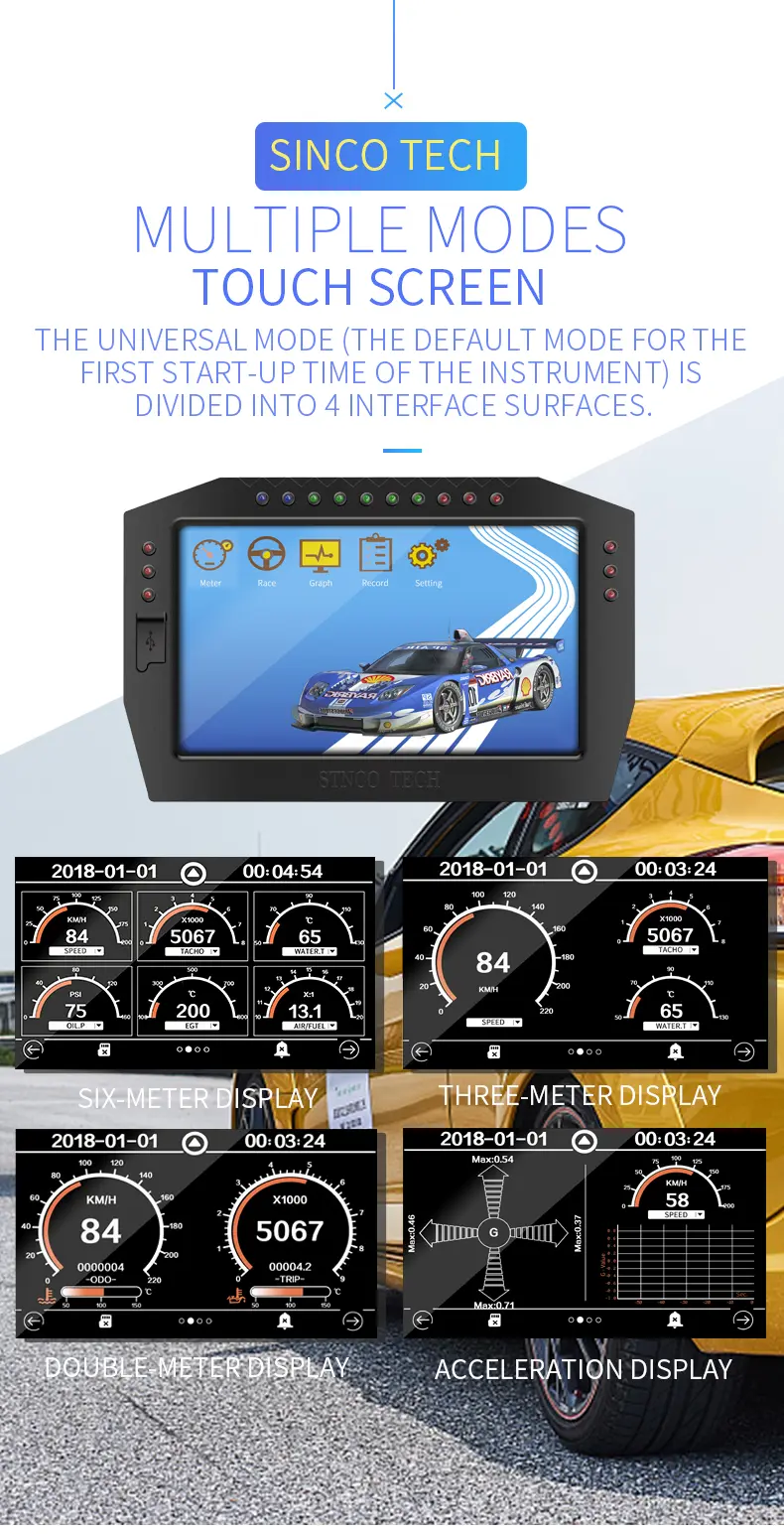

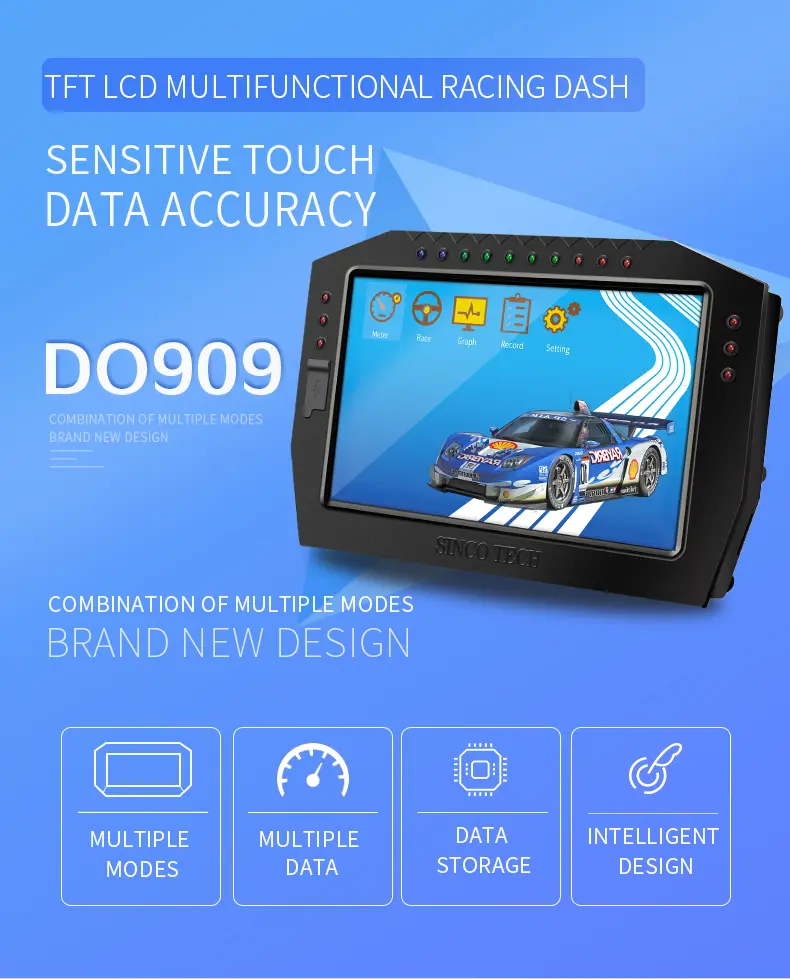

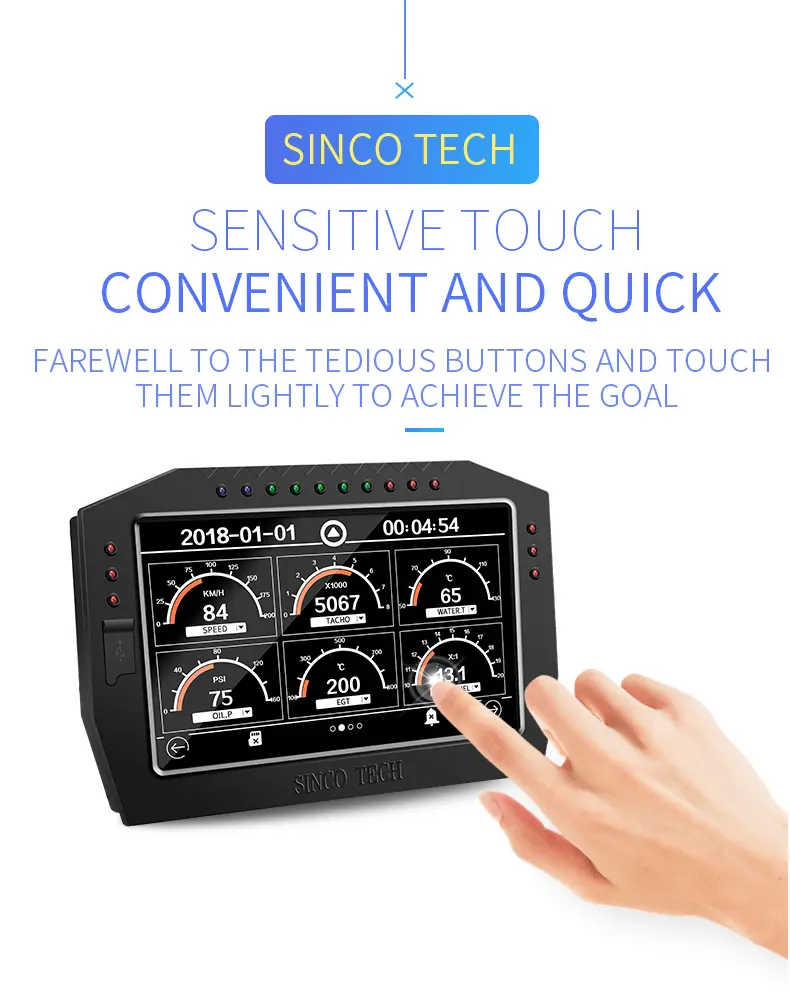

The DO909 features a full-color LCD touchscreen instrument panel with sensitive touch control and accurate data display. It includes multiple modes (General Mode, Racing Mode, and Chart Mode). Data can be uploaded to a computer for better recording of your driving progress. Various screen display colors and text can be customized to your liking.

Send Inquiry

Product Description

Product Description Product Details

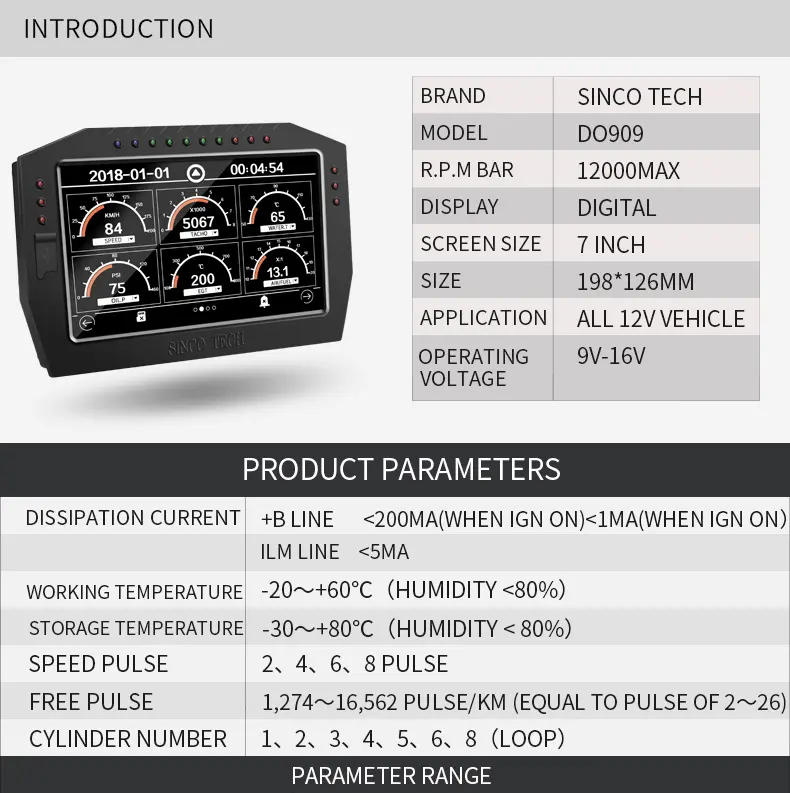

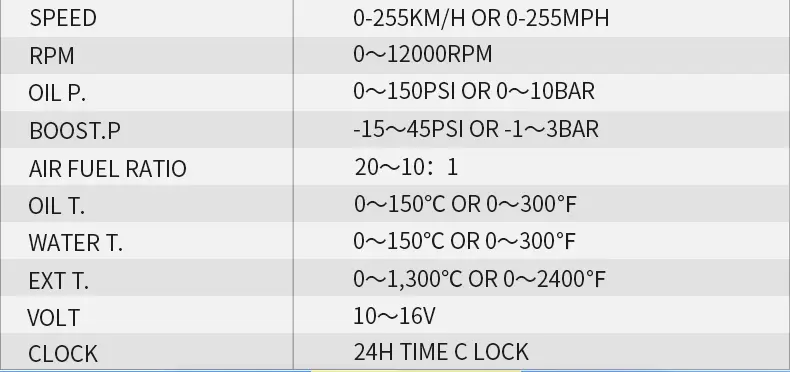

Parameter Range

Speed0-255KM/H or 0-255MPH

RPM0~12000 RPM

Boost Range-15~45PSI or -1~3BAR

Water Temp Range0~150°C or 0~300°F

Oil Temp Range0~150°C or 0~300°F

Oil Pressure Range0~150 PSI or 0~10 BAR

Voltage10~16V

Air-Fuel Ratio20:1~10:1

Exhaust Temp Range0~1300°C or 0~2400°F

Clock24H

Speed Pulse2, 4, 6, 8 pulse

Free Pulse1,274～16,562 Pulse/km (2～26)

Cylinder Number1, 2, 3, 4, 5, 6, 8 (loop)

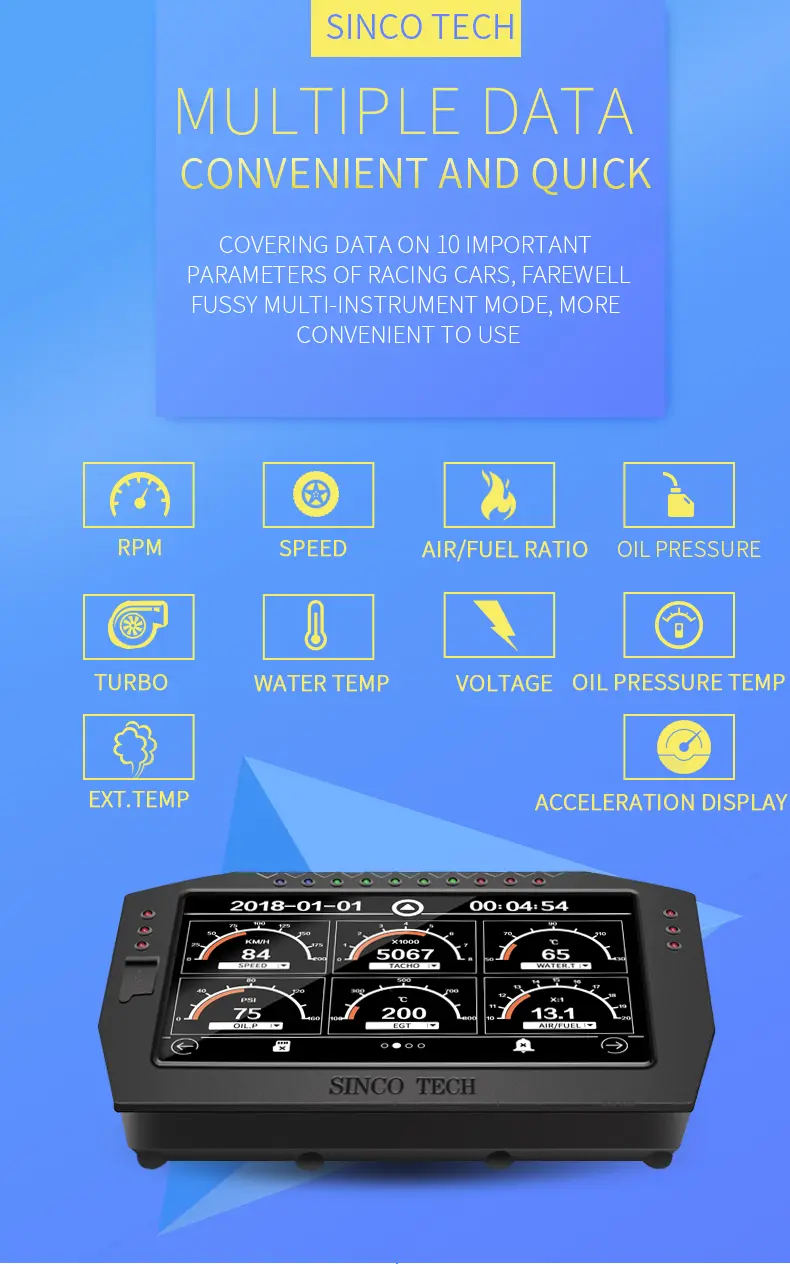

Functions Display

RPM Display
Speed Tracking
Turbo / Boost Parameters
Water Temperature Monitoring
Oil Temperature Monitoring
Oil Pressure Monitoring
Voltage Meter
Air Fuel Ratio Analysis
Exhaust Temperature (EXT Temp)
Acceleration Display

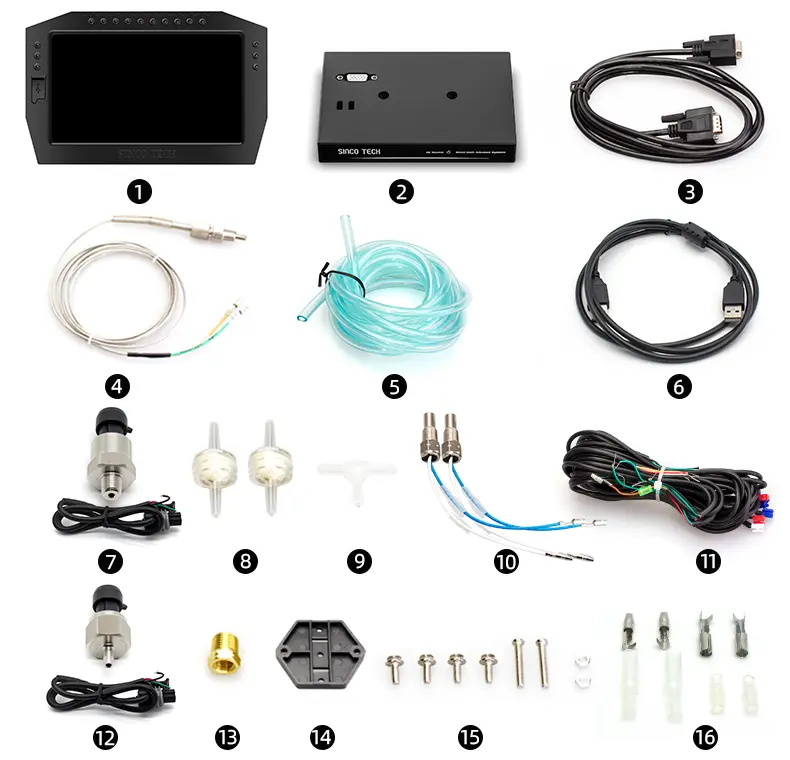

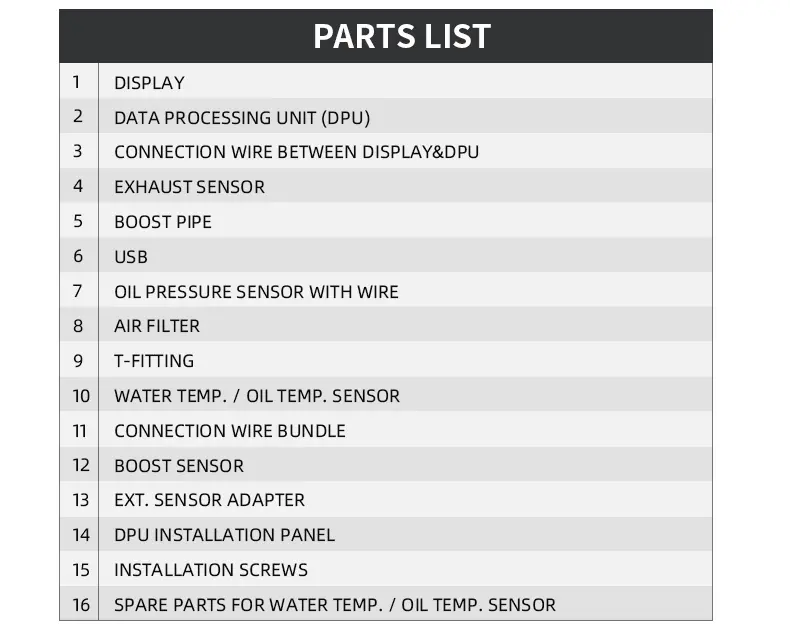

Parts List

Display Screen Unit
Data Processing Unit (DPU)
Connection Cable (Display to DPU)
Exhaust Sensor
Boost Pipe
USB Connection Cable
Oil Pressure Sensor with Wiring Harness
Air Filter
T-Fitting Connector
Water/Oil Temperature Sensor
Connection Harness
Boost Sensor
Exhaust Sensor Adapter
DPU Installation Panel
Installation Screws
Spare Parts for Temperature Sensors

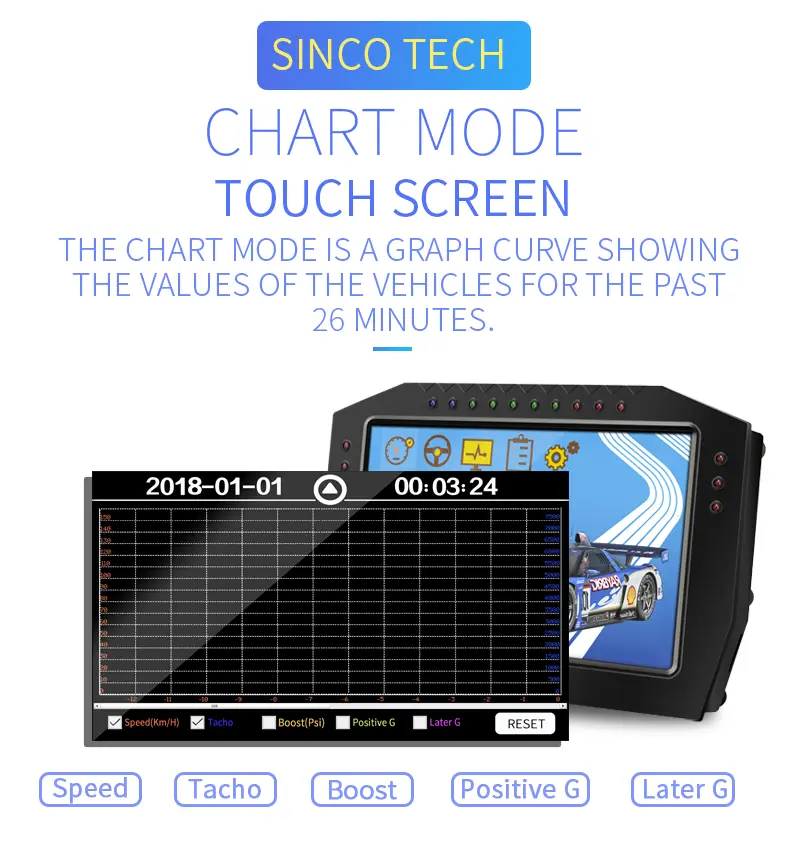

Chart Mode

Chart mode displays various vehicle parameters and settings over the past 26 minutes in the form of a chart curve. This dynamic tracking includes critical indicators such as RPM, vehicle speed, boost pressure, forward acceleration, and lateral acceleration to assist in driving performance analysis.

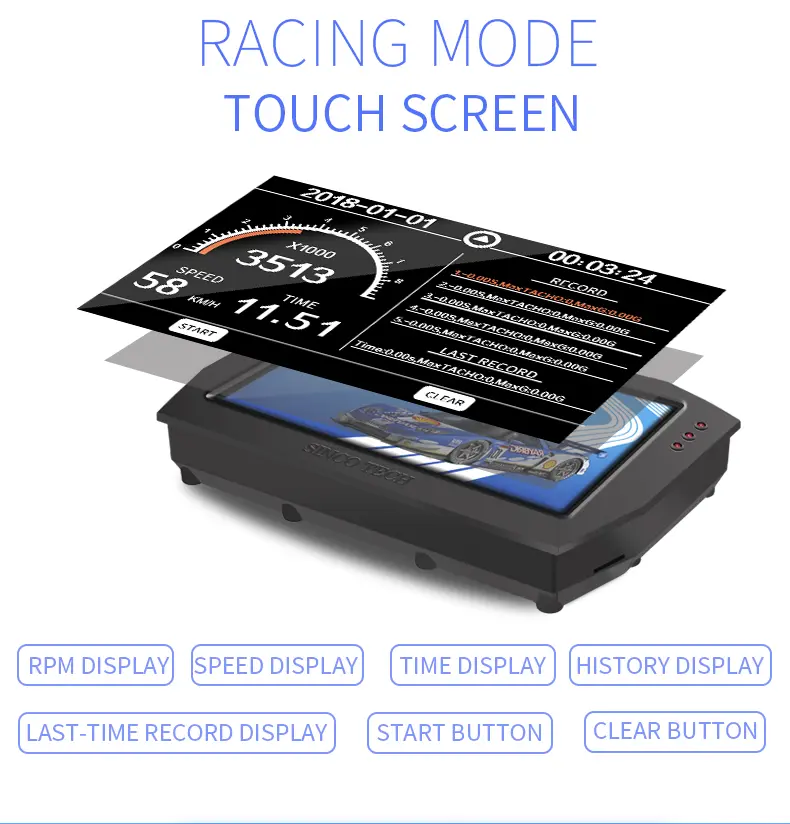

Racing Mode

Designed for performance tracking, Racing Mode includes essential features such as a real-time RPM display, speed display, elapsed time display, history logs, dedicated start/clear buttons, and quick access to the last recorded telemetry data.

Important Tips

1. Warranty Coverage: We provide a 1-year warranty (excluding damage caused by human factors). All warranty claims require proof of professional installation.

2. Accuracy and Measurement: Please allow a 1–3 mm measurement variance due to manual tracking. Color representations may slightly differ across distinct monitors, but the overall specifications remain verified and exact.

Race Dashboard Colorful LCD Touch-Screen Multi-function Racing Dash Gauge with Full Sensor Kit DO909

Frequently Asked Questions

What vehicle parameters can this multi-function gauge monitor?

This dash gauge monitors essential parameters including Speed, RPM, Turbo Boost Pressure, Water Temperature, Oil Temperature, Oil Pressure, Voltage, Air-Fuel Ratio, and Exhaust Temperature (EXT).

What is the difference between Racing Mode and Chart Mode?

Racing Mode focuses on real-time driving telemetry such as current RPM, speed, elapsed time, and history records. Chart Mode generates visual graph curves tracking multiple parameters over the past 26 minutes.

Is the gauge compatible with my engine cylinder configuration?

Yes, this system supports 1, 2, 3, 4, 5, 6, and 8-cylinder configurations in a loop loop setup.

What is included in the full sensor kit installation package?

The package contains the LCD display, Data Processing Unit (DPU), connection cable, exhaust sensor, boost pipe, oil pressure sensor, water/oil temperature sensor, installation panels, screws, and all required wiring harnesses.

What are the details of the product warranty?

The product is backed by a 1-year warranty against manufacturing defects. Damage caused by human factors is excluded, and warranty validation requires proof of installation by a certified professional.
