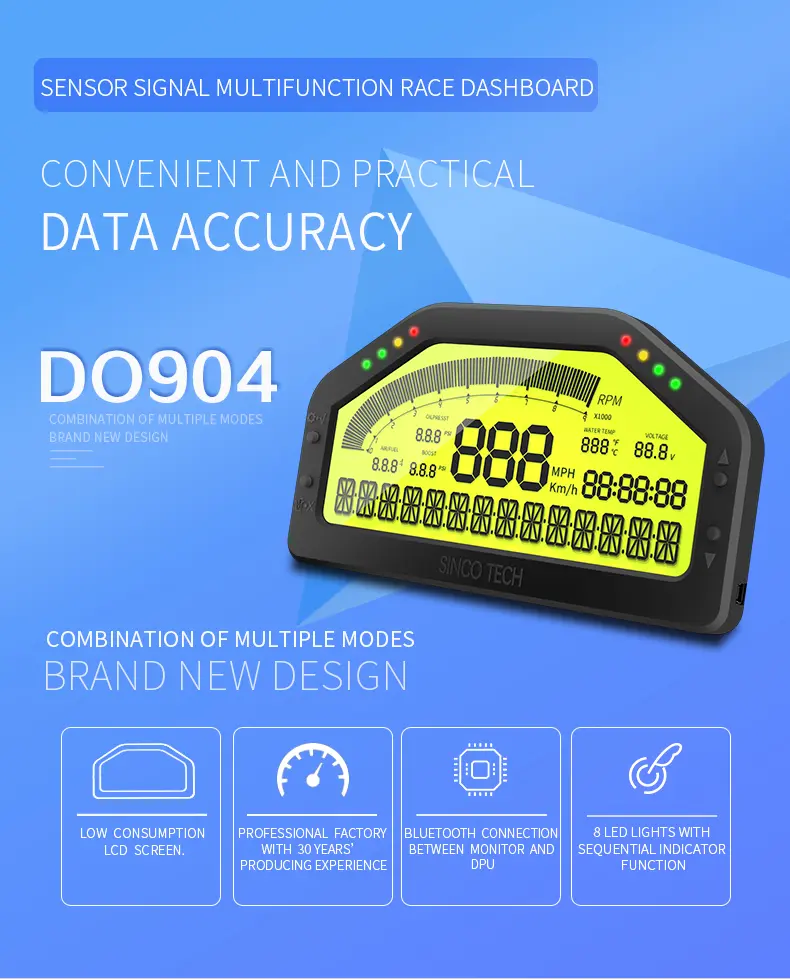

Custom Rally Race Dash Panels 9 in 1 Gauge Bluetooth LCD Race Dashboard Sensor Kit SincoTech DO904 Manufacturers, Factories

1 / 5

Custom Rally Race Dash Panels 9 in 1 Gauge Bluetooth LCD Race Dashboard Sensor Kit SincoTech DO904 Manufacturers, Factories

Clear, bright, high visible green backlit LCD display.

Uses Sensor bluetooth connection.

Warns via audible alerts and indicator lights, featuring a buzzer and 8 LED indicators.

Send Inquiry

Product Description

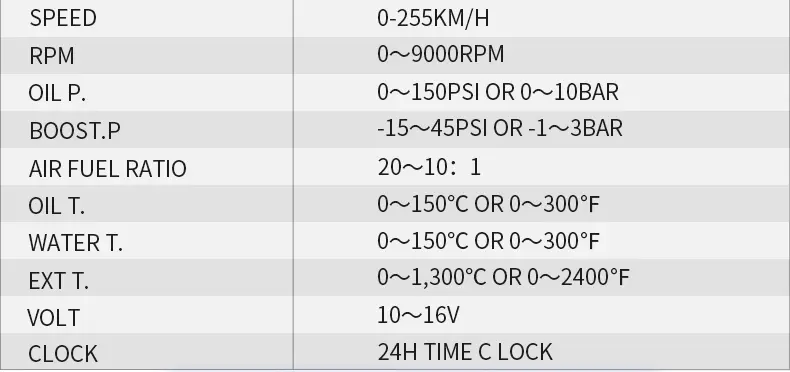

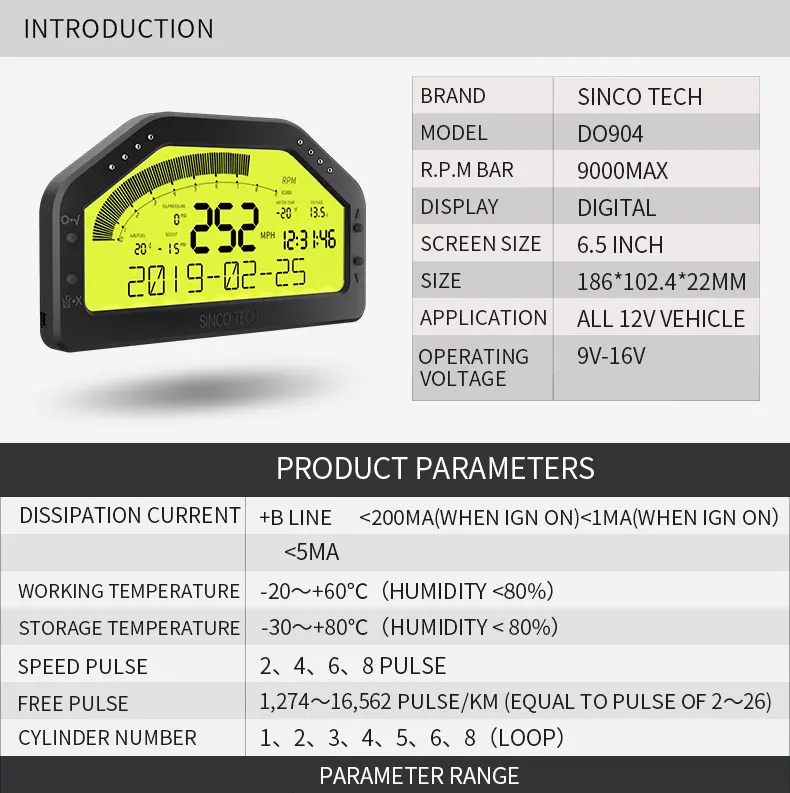

■ Parameter Range

✔ Speed: 0-255 KM/H or MPH

✔ RPM: 0~9000 RPM

✔ Boost Range: -15~45PSI or -1~3BAR

✔ Water Temperature Range: 0~150°C or 0~300°F

✔ Oil Temperature Range: 0~150°C or 0~300°F

✔ Oil Pressure Range: 0~150 PSI or 0~10 BAR

✔ Voltage: 10~16V

✔ Air-Fuel Ratio: 20:1~10:1

✔ Exhaust Temperature Range: 0~1300°C or 0~2400°F

✔ Clock: 24H

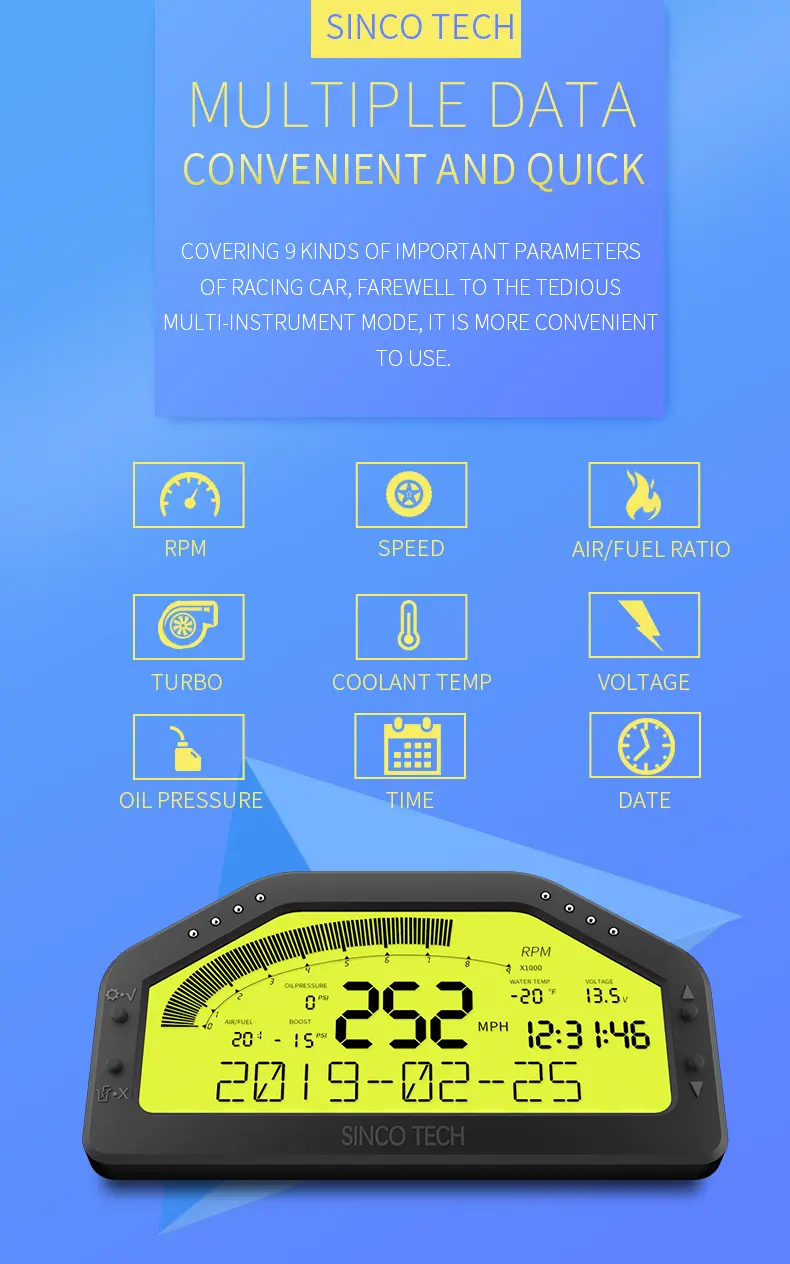

■ Functions Display

RPM
Speed
Oil Pressure
Oil Temp.
Water Temp
Boost
Air Fuel Ratio
EGT
Voltage
Date

Rally Race Dash Panels 9 in 1 Gauge LCD Display Sensor Kit Multi-Function Race Dashboard Bluetooth Connection

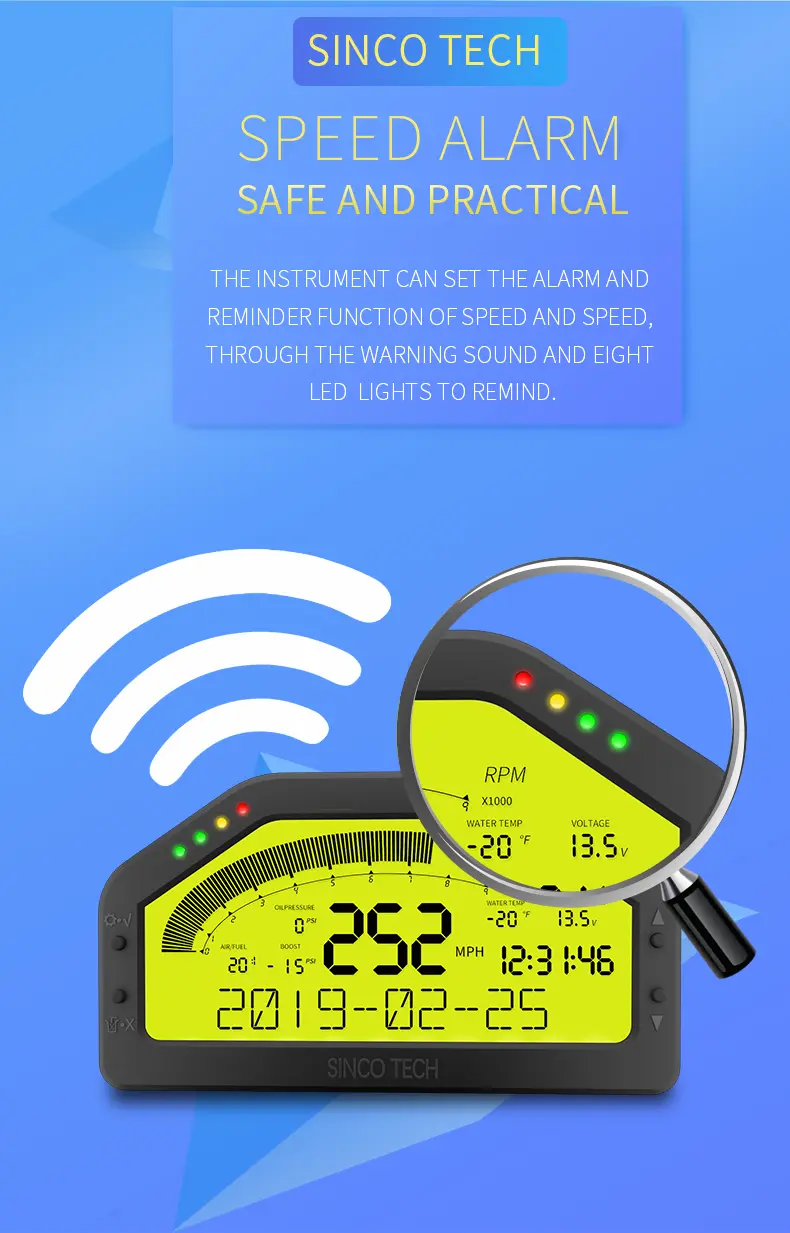

⚠️ Alarm Setting

RPM, SPEED: Warns via audible alerts and indicator lights, featuring a buzzer and 8 LED indicators.

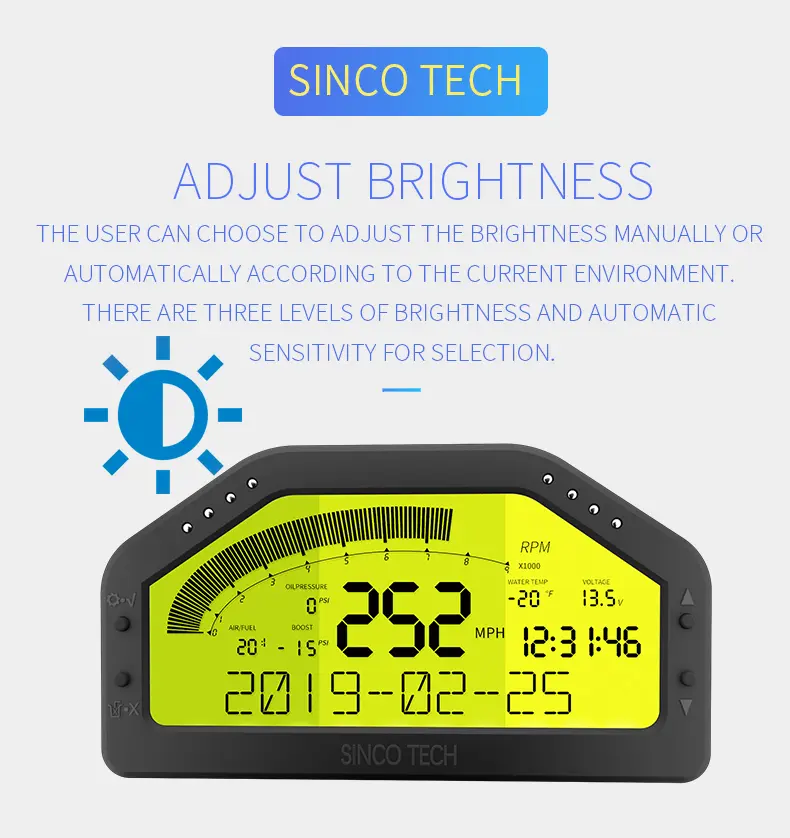

⚙️ Brightness Adjustment

Users can adjust the brightness manually or automatically according to the current environment, providing three brightness levels and an automatic sensitivity option.

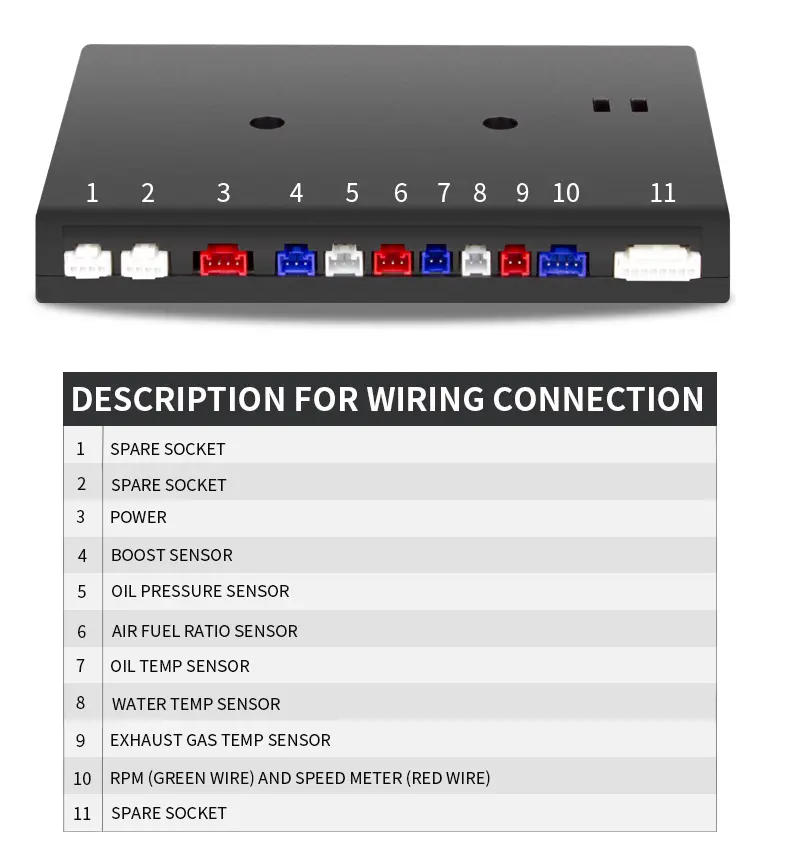

■ Wire Harness Connector Includes

Spare socket
Spare socket
Power
Boost sensor
Oil Pressure sensor
Air Fuel Ratio sensor
Oil Temp sensor
Water Temp sensor
Exhaust Gas Temp sensor
RPM (green wire) and Speed meter (red wire)
Spare socket

💡 Note:

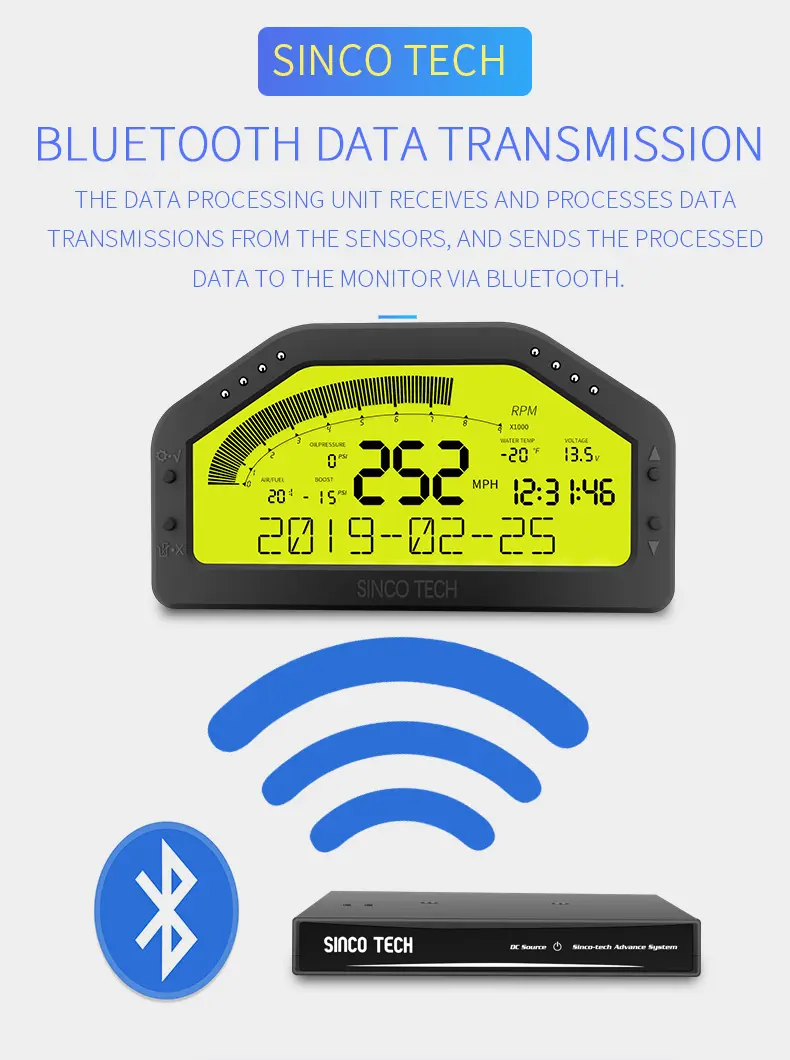

When the connection between the Monitor and the DPU is established, it will switch to the normal display:

RPM
Speed
Oil Pressure
Air Fuel Ratio
Turbo
Coolant Temp
Voltage
Time

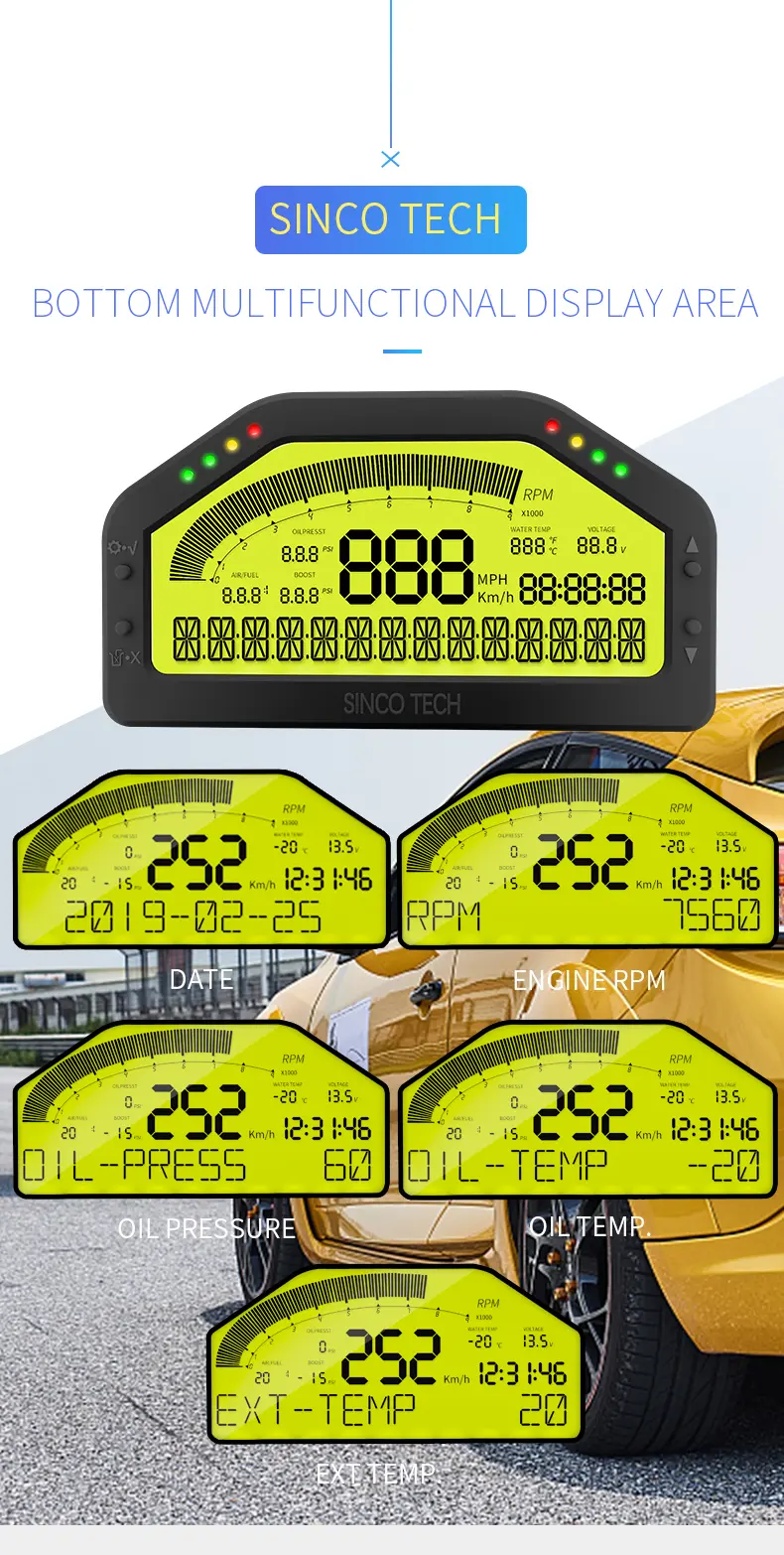

9. Multi-purpose display section. Displays the date by default. The display can be changed by using the “↑” and “↓” buttons.

■ Bottom of Display Menu

SET DATE
SET TIME

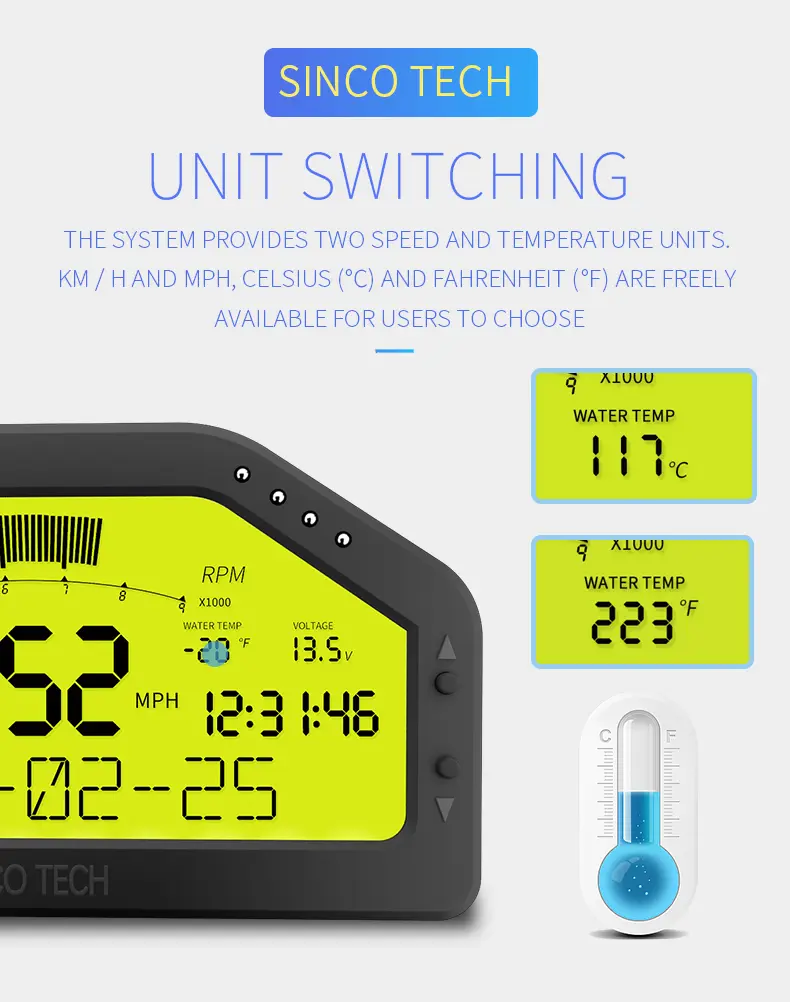

SET UNIT (select to change the measurement unit for pressure)
SET LED (select to turn the LED on and off)
SET ALARM (select to adjust the speed limit alarm)
SPEED CAL (select to calibrate the speed)

Tips & Warranty Info

1. Warranty: We provide a one-year warranty (excluding damage caused by human factors). All warranty claims require proof of professional installation.

2. Note on Measurement: Manual measurement, please allow 1~3 mm error, thank you. Due to variations between different displays, the picture may not reflect the actual color of the item. We guarantee the style is identical to the images provided. Please understand, thank you!

■ Product Details Gallery

❓ Frequently Asked Questions

What is the warranty period for this dashboard kit?

We provide a one-year warranty, excluding damage caused by human factors. Please note that all warranty claims require proof of professional installation.

How does the auto-brightness adjustment work?

The dashboard features an automatic sensitivity option that adjusts brightness dynamically based on current environmental light levels. Alternatively, users can manually select from three preset brightness levels.

What type of alarms does this display offer for high speed or RPM?

It features warning thresholds for RPM and Speed. When limits are exceeded, the system triggers audible alerts via an integrated buzzer and visual cues using 8 bright LED indicators.

What components and sensors are supported by the wire harness?

The included harness features specialized connections for Power, Boost sensor, Oil Pressure sensor, Air Fuel Ratio sensor, Oil Temp sensor, Water Temp sensor, Exhaust Gas Temp sensor, RPM (green wire), and Speed meter (red wire).

Can I configure the display units and metrics?

Yes. Via the display menu setting (SET UNIT), you can change the measurement unit settings for pressure and other parameters (e.g., swapping between standard and metric ranges).

What parameters are displayed on the main monitor interface once connected?

Once the connection to the DPU is established, the monitor defaults to displaying RPM, Speed, Oil Pressure, Air Fuel Ratio, Turbo boost, Coolant Temperature, Voltage, Time, and a multi-purpose display segment for dates and settings.
