Speed: 0-255 KM/H or MPH
RPM: 0~9000 RPM
Boost Range: -15~45PSI or -1~3BAR
Water Temperature Range: 0~150°C or 0~300°F
Oil Temperature Range: 0~150°C or 0~300°F
Oil Pressure Range: 0~150 PSI or 0~10 BAR
Voltage: 10~16V
Air-Fuel Ratio: 20:1~10:1
Exhaust Temperature Range: 0~1300°C or 0~2400°F
Clock: 24H
Low consumption LCD screen
Time clock function
8 LED lights with sequential indicator function
Backlight Dimmer adjusted automatically and manual
With a new advanced system

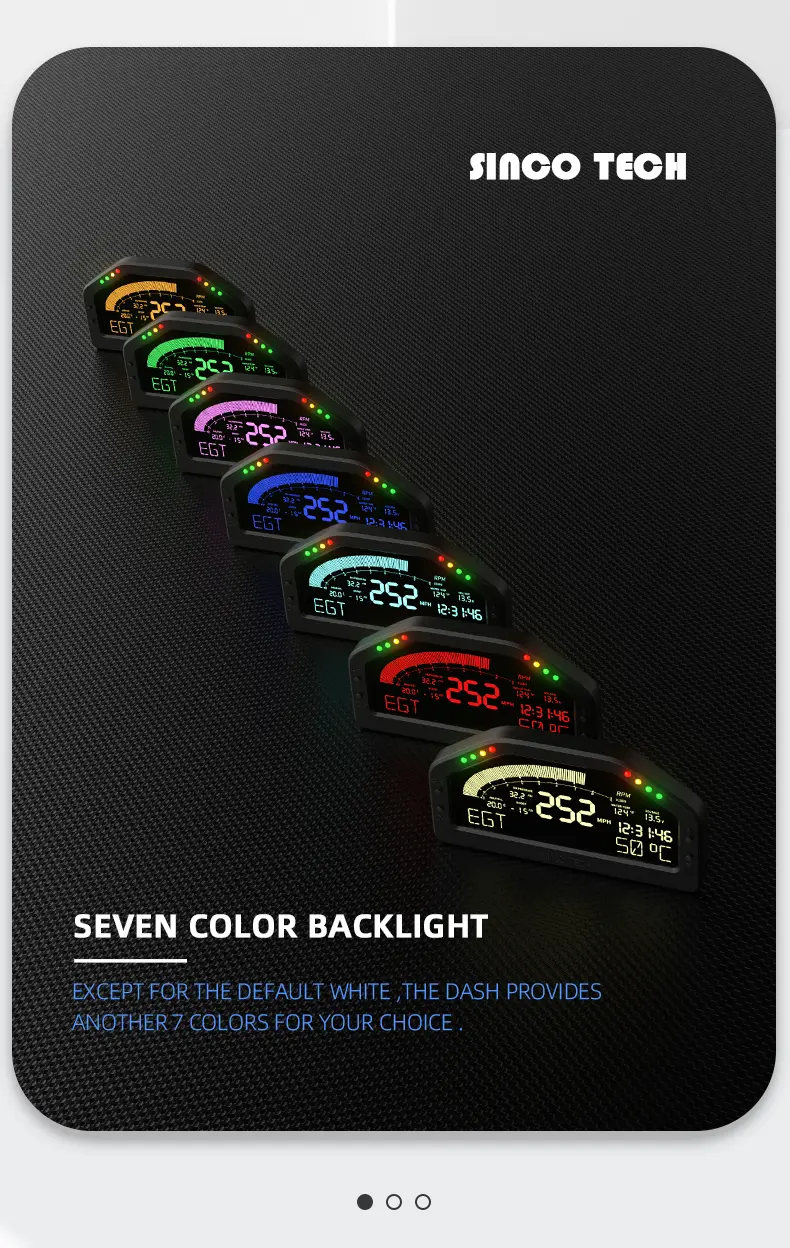

7 Color adjustable, 11 backlight modes optional

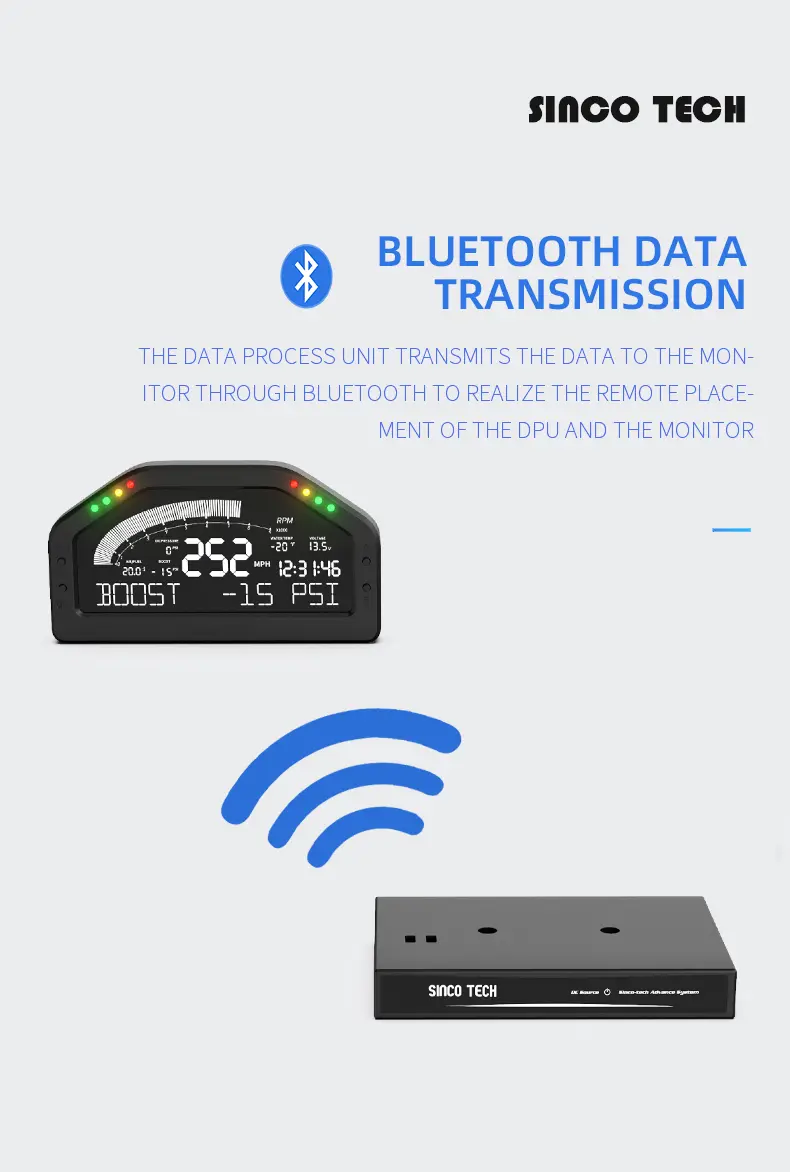

Bluetooth connection between monitor and DPU

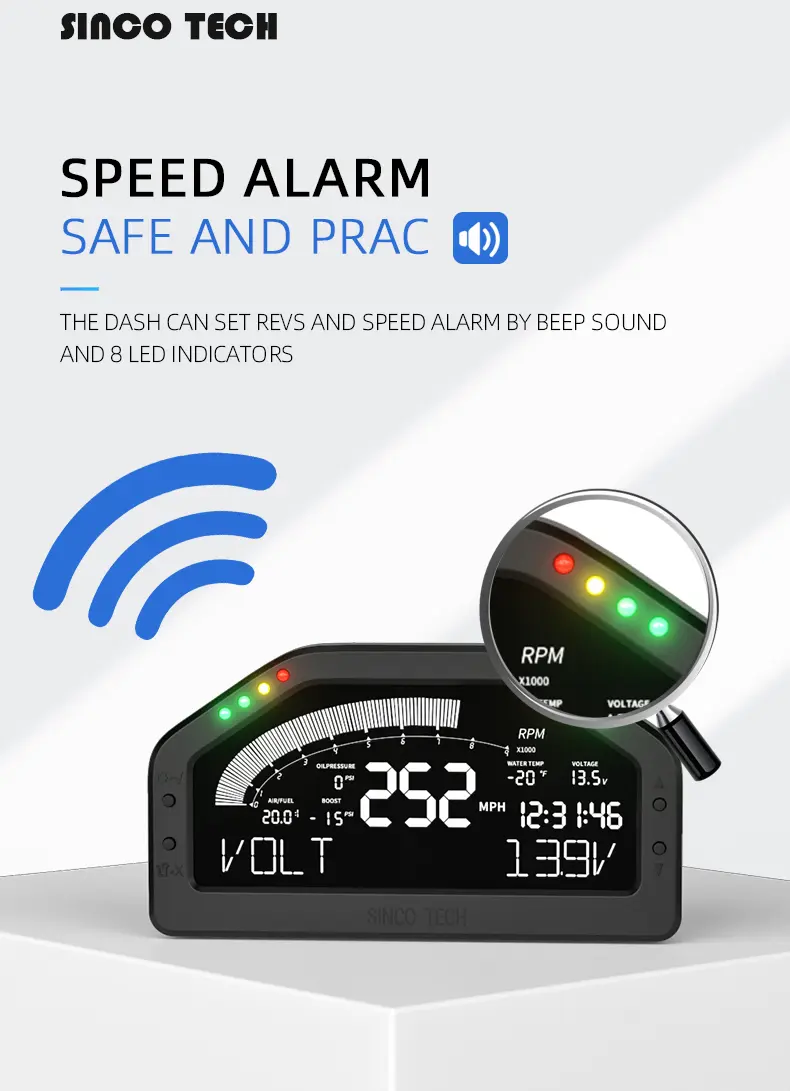

SPEED, TACHO, WATERTEMP, OIL TEMP, OIL PRESSURE, BOOST, VOLT warns via audible alerts and indicator lights, featuring a buzzer and eight LED indicators.

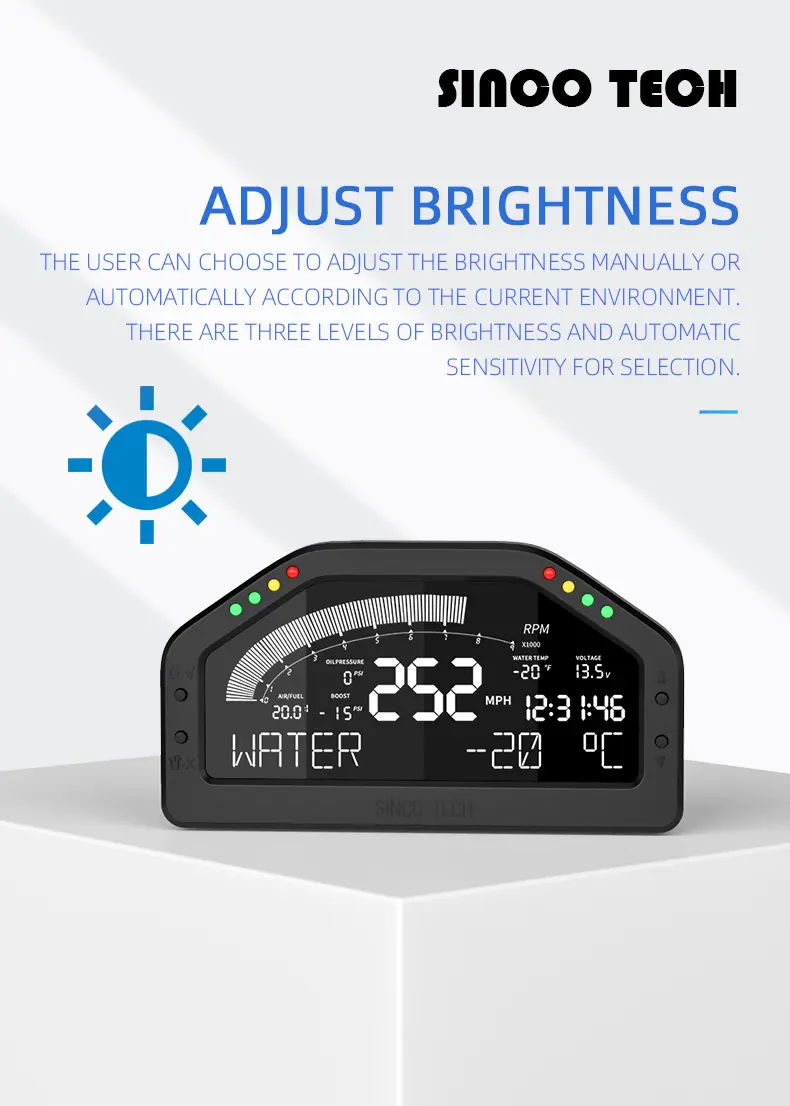

Users can choose to adjust the brightness manually or automatically according to the current environment, providing three brightness levels and an automatic sensitivity option.

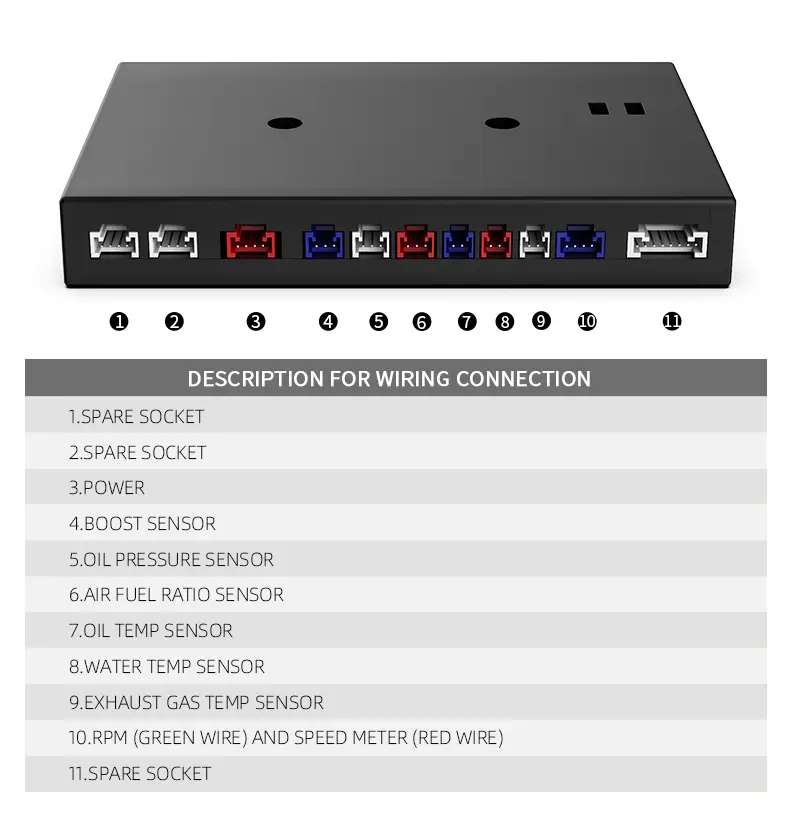

1. Spare socket
2. Spare socket
3. Power connection
4. Boost sensor
5. Oil Pressure sensor
6. Air Fuel Ratio sensor
7. Oil Temp sensor
8. Water Temp sensor
9. Exhaust Gas Temp sensor
10. RPM (green wire) and Speed meter (red wire)
11. Spare socket
1. Warranty Coverage: We provide a one-year warranty (excluding damage caused by human factors). All warranty claims require proof of professional installation.
2. Note: Manual measurement, please allow 1~3 mm error. Due to the difference between different displays, the picture may not reflect the actual color of the item. We guarantee that the style is the same as shown in the picture.
