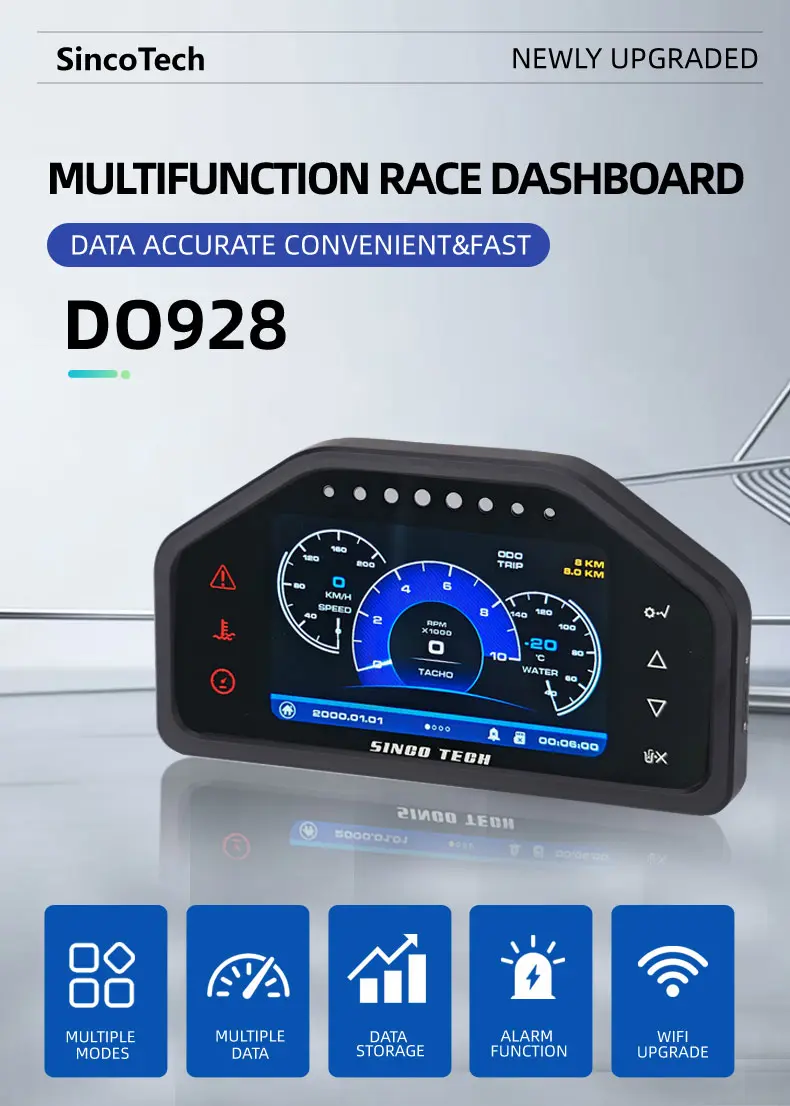

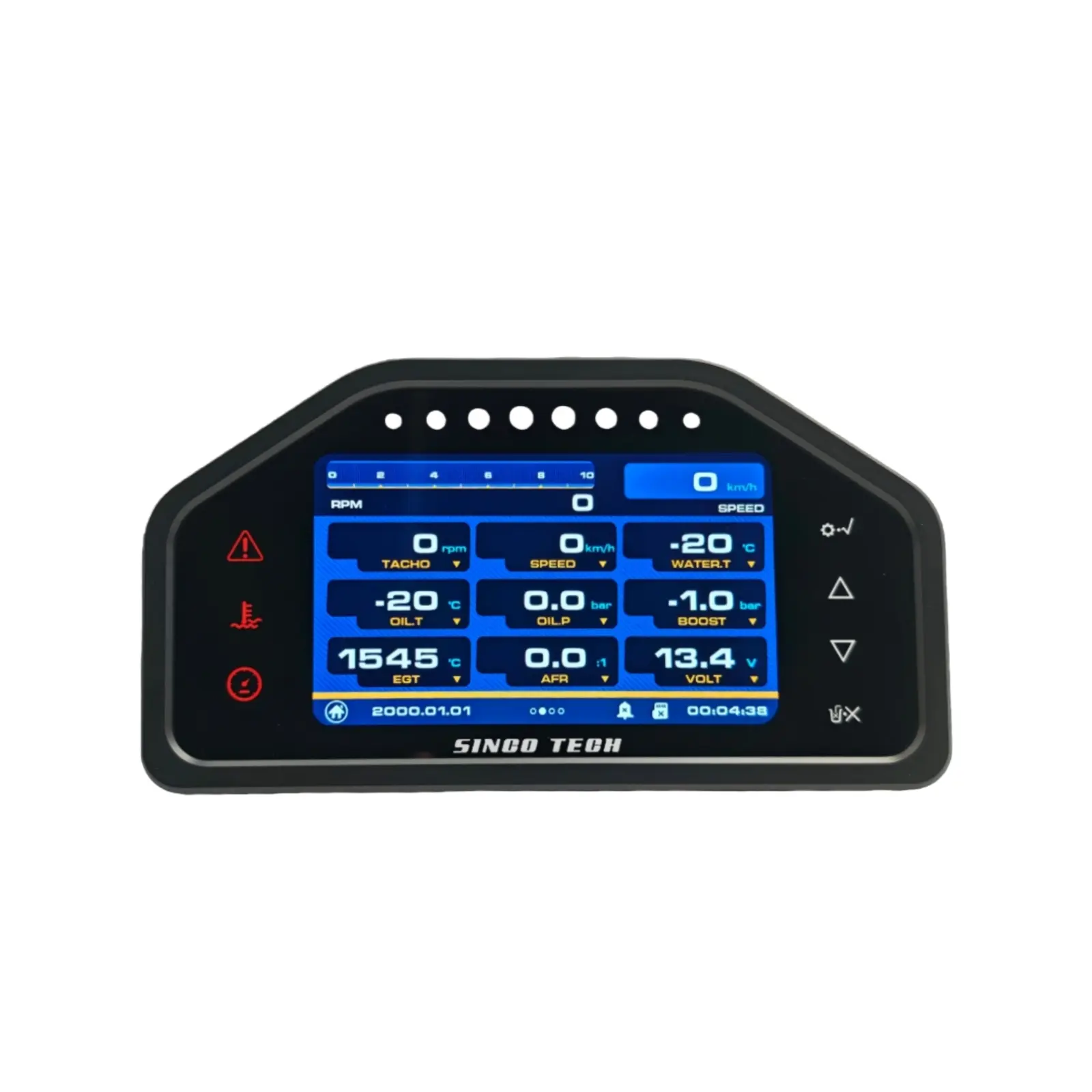

Wholesale Racing Gauge 9 in 1 Race Dash Panel Multi-Function Dashboard SincoTech DO928 Manufacturers, Factory

1. Covers 9 key parameters of racing cars.

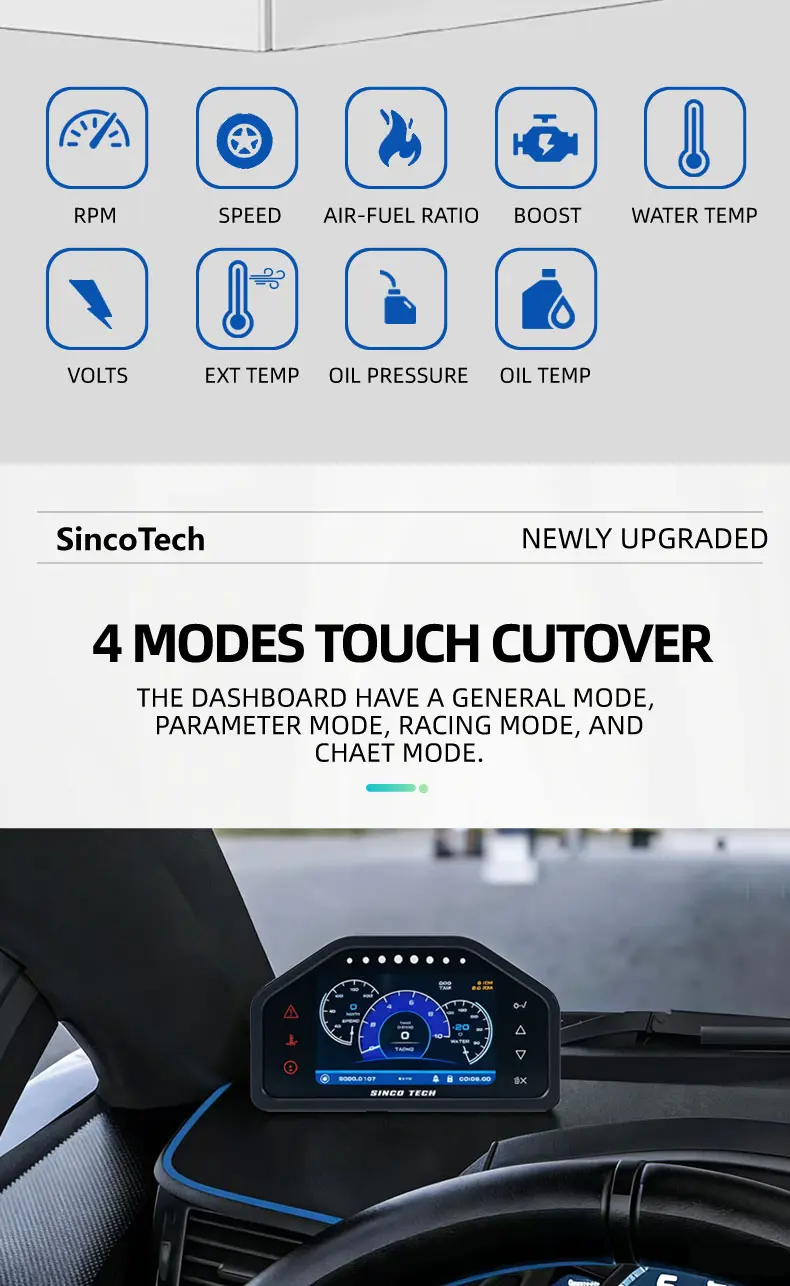

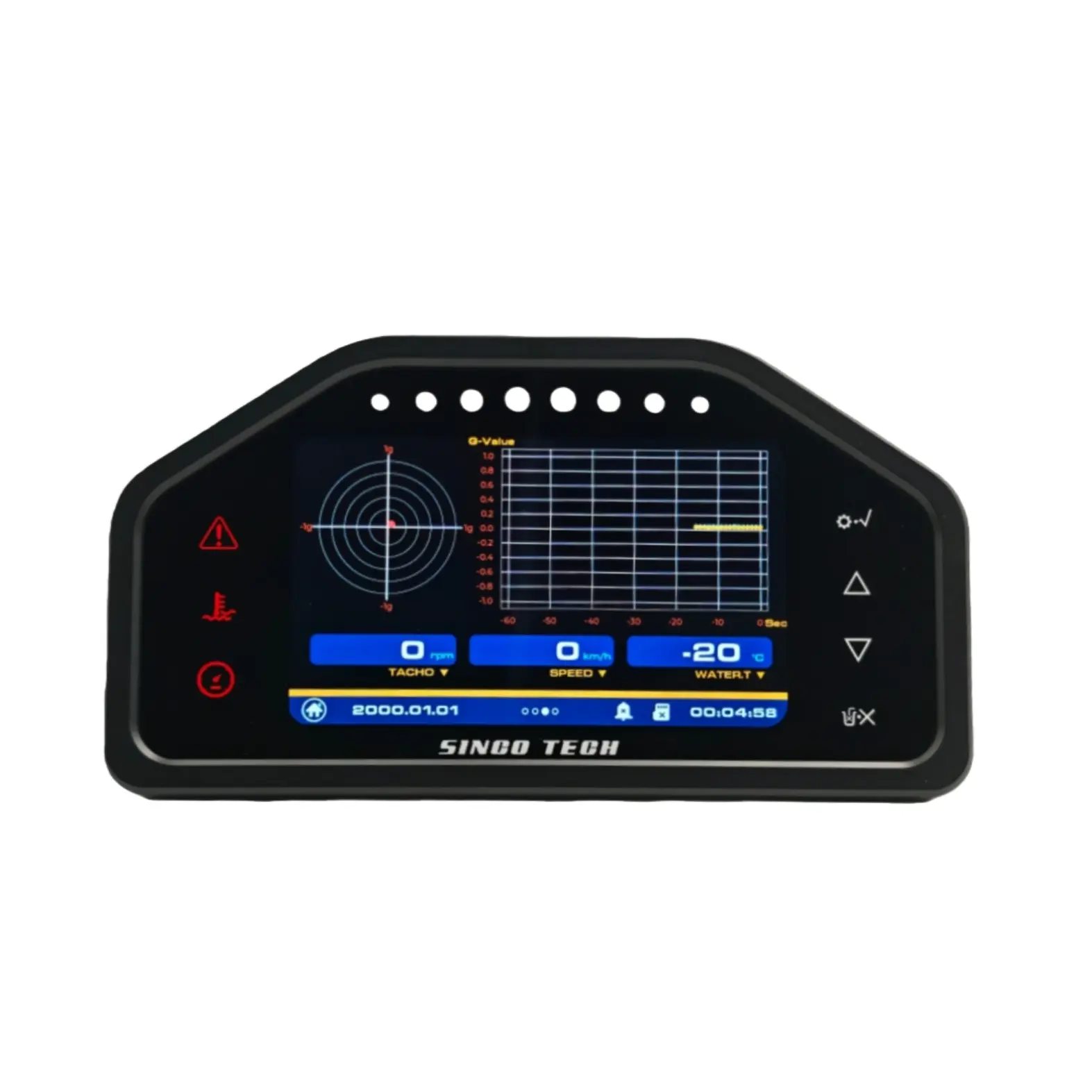

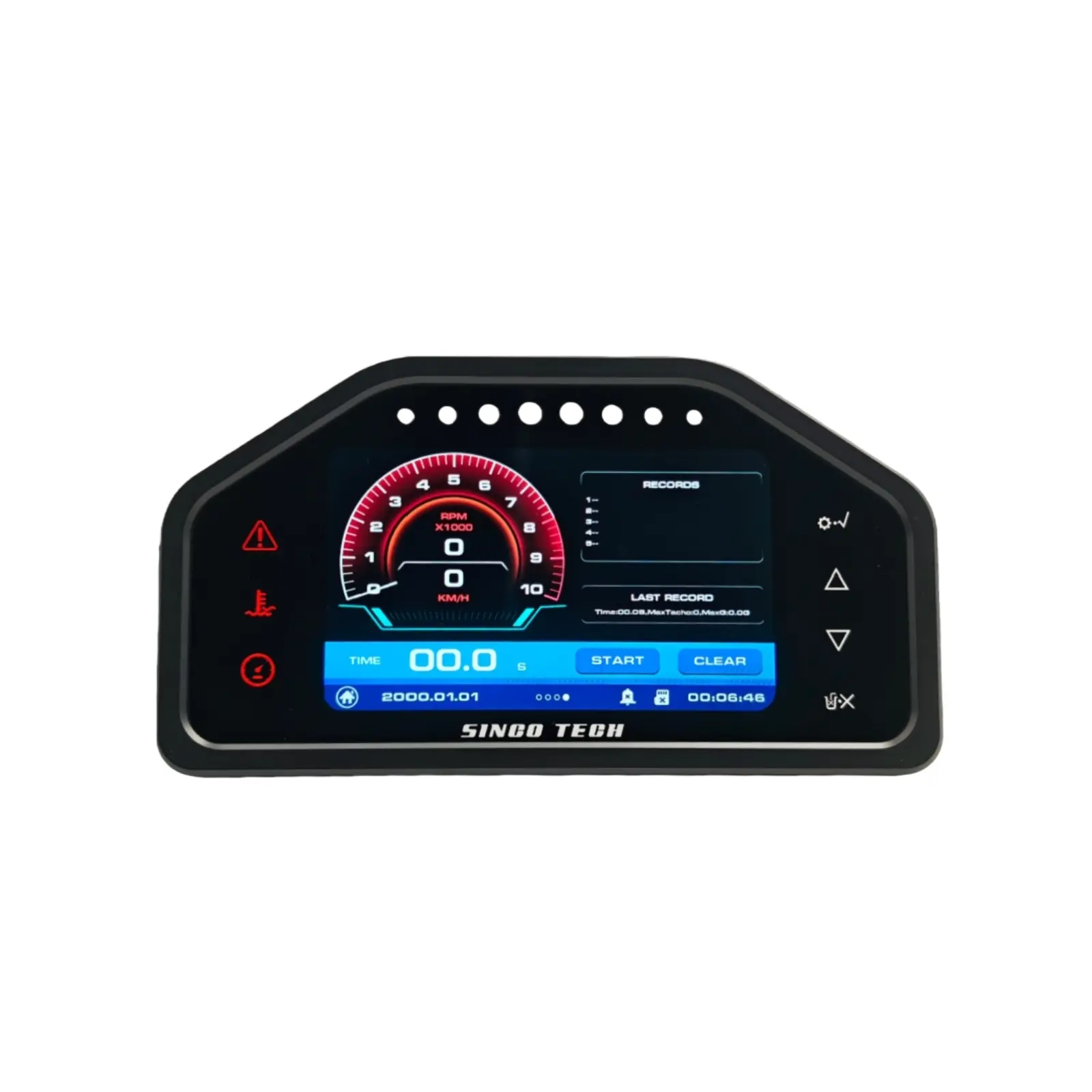

2. Features 4 display modes.

3. Newly designed Wi-Fi upgrade feature.

4. Alarms can be set for all 9 types of parameter data.

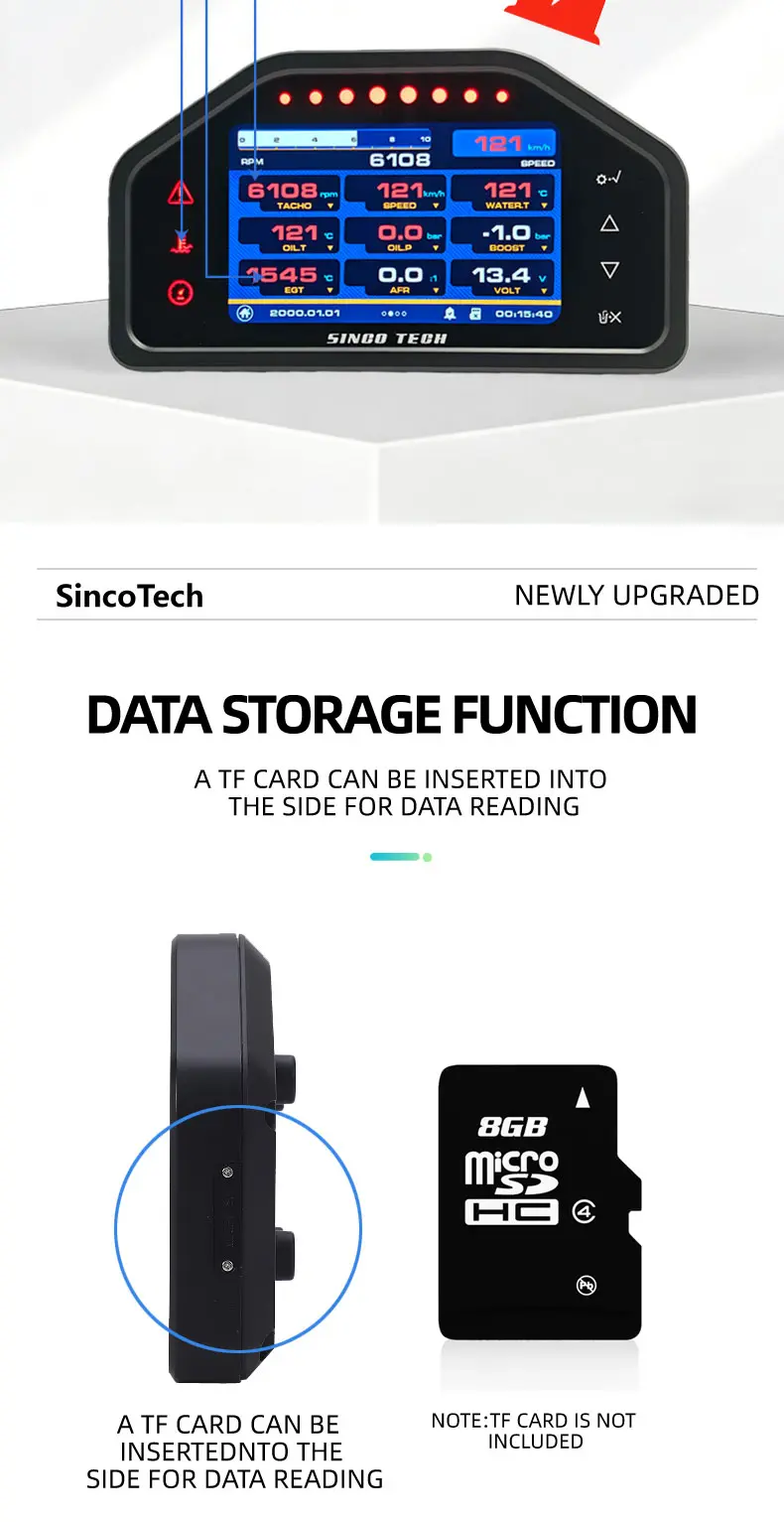

5. Data from the dashboard can be stored on a TF card.

6. Touch-sensitive buttons.

Product Description

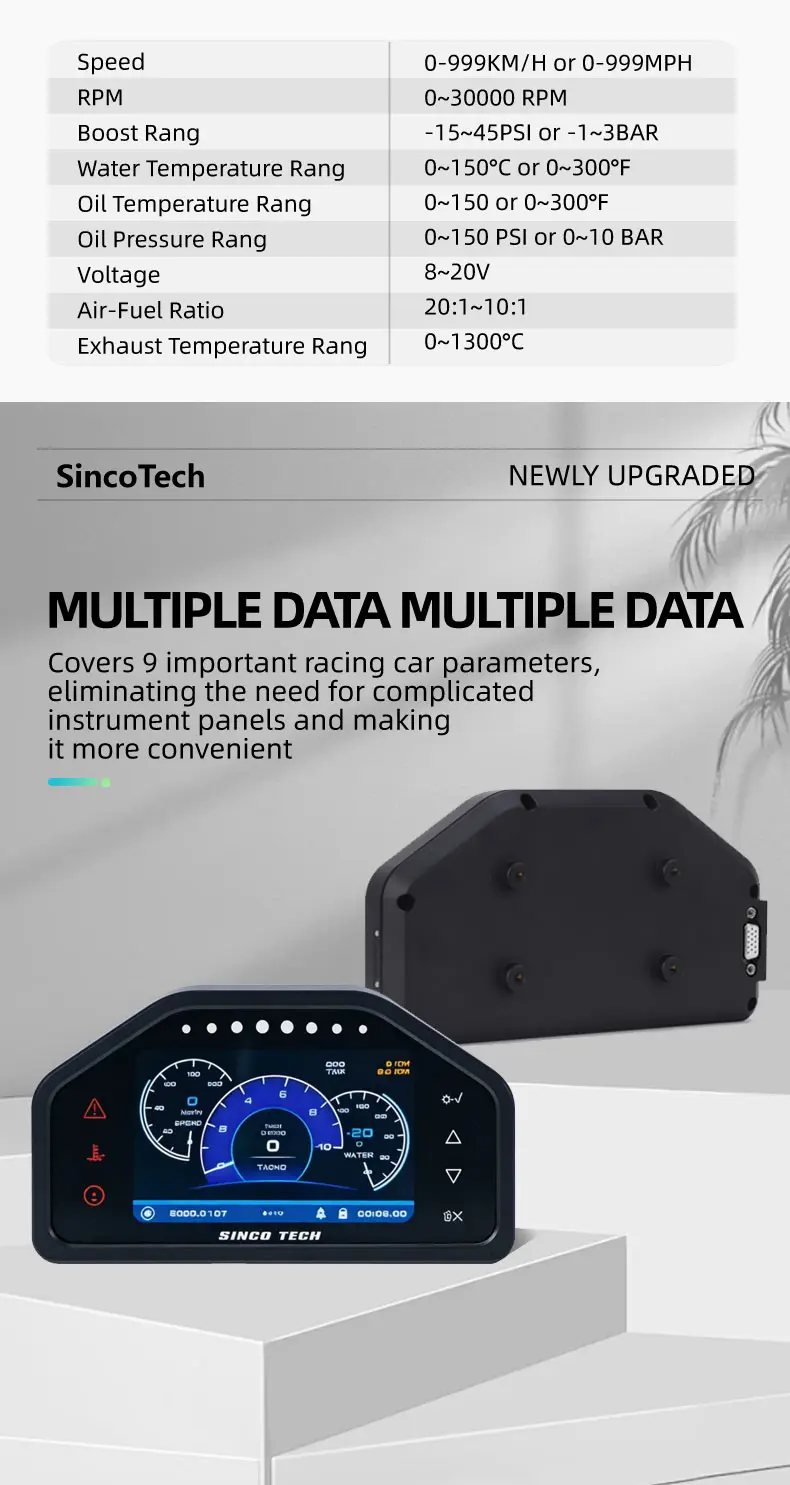

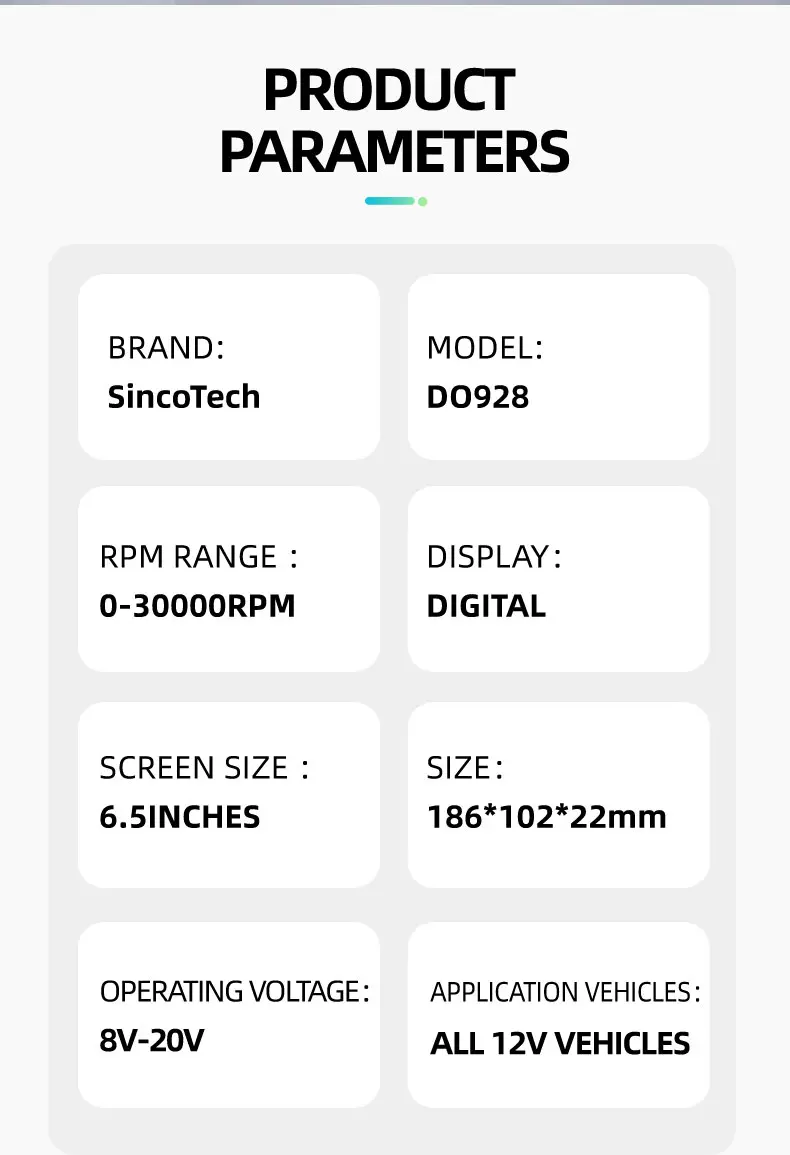

Parameter Range

  • Speed0-999KM/H or 0-999MPH
  • RPM0~30000 RPM
  • Boost Range-15~45PSI or -1~3BAR
  • Water Temperature Range0~150°C or 0~300°F
  • Oil Temperature Range0~150 or 0~300°F
  • Oil Pressure Range0~150 PSI or 0~10 BAR
  • Voltage10~16V
  • Air-Fuel Ratio20:1~10:1
  • Exhaust Temperature Range0~1300°C or 0~2400°F

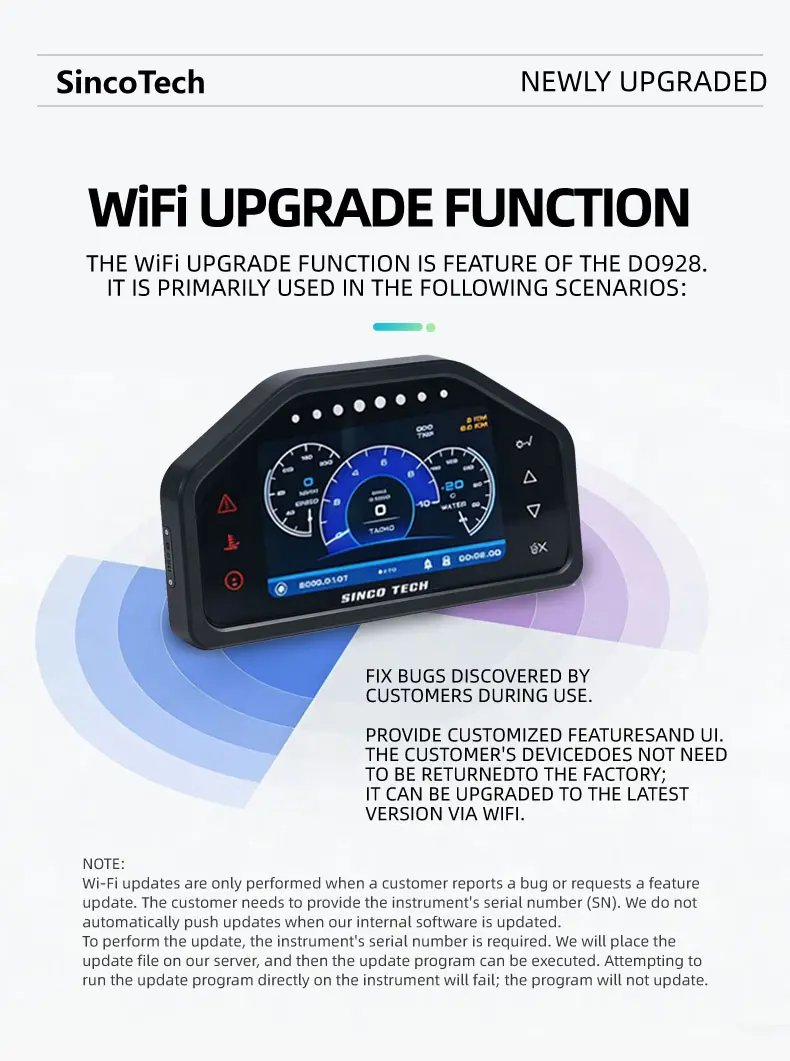

WiFi Upgrade Functionality

WiFi upgrade functionality is a core feature of the DO928.

It is primarily used in the following scenarios:
- Fixing vulnerabilities discovered during customer use;
- Providing customized features and user interfaces.

Customer devices do not need to be returned to the factory; they can be upgraded directly to the latest version via WiFi.

Important Notes:

WiFi upgrades are performed only when customers report malfunctions or request feature updates. Customers must provide the instrument serial number (SN). We do not automatically push updates when internal software is updated.

The instrument serial number is required to execute updates. The update program can only run after we upload the update file to the server. Running the update program directly on the instrument will result in failure, as the program cannot execute the update.

Functions Display

  • 1. RPM
  • 2. Speed
  • 3. Oil Pressure
  • 4. Oil Temp.
  • 5. Water Temp
  • 6. Boost
  • 7. Air Fuel Ratio
  • 8. EGT
  • 9. Voltage

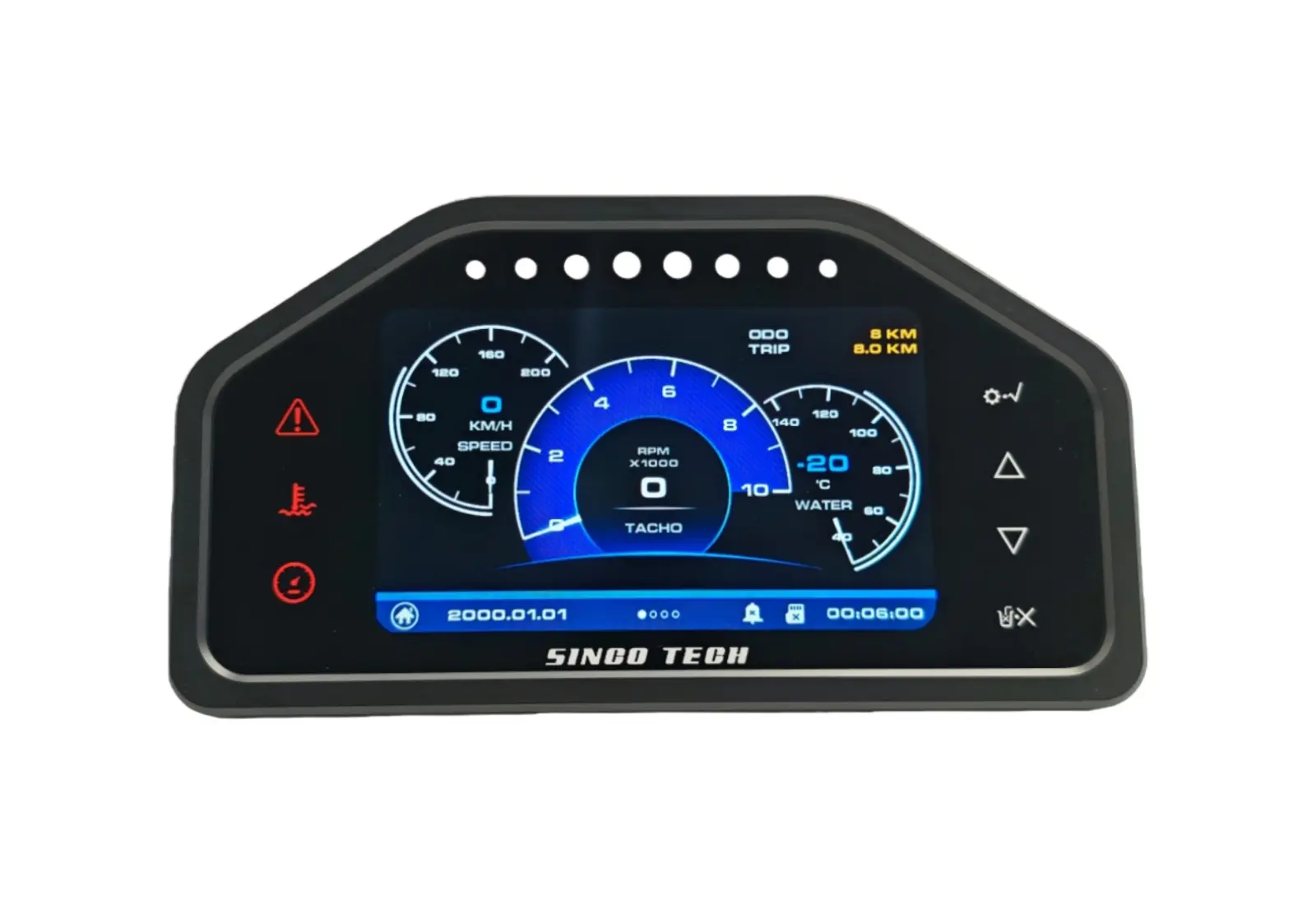

Racing Gauge 9 in 1 Race Dash

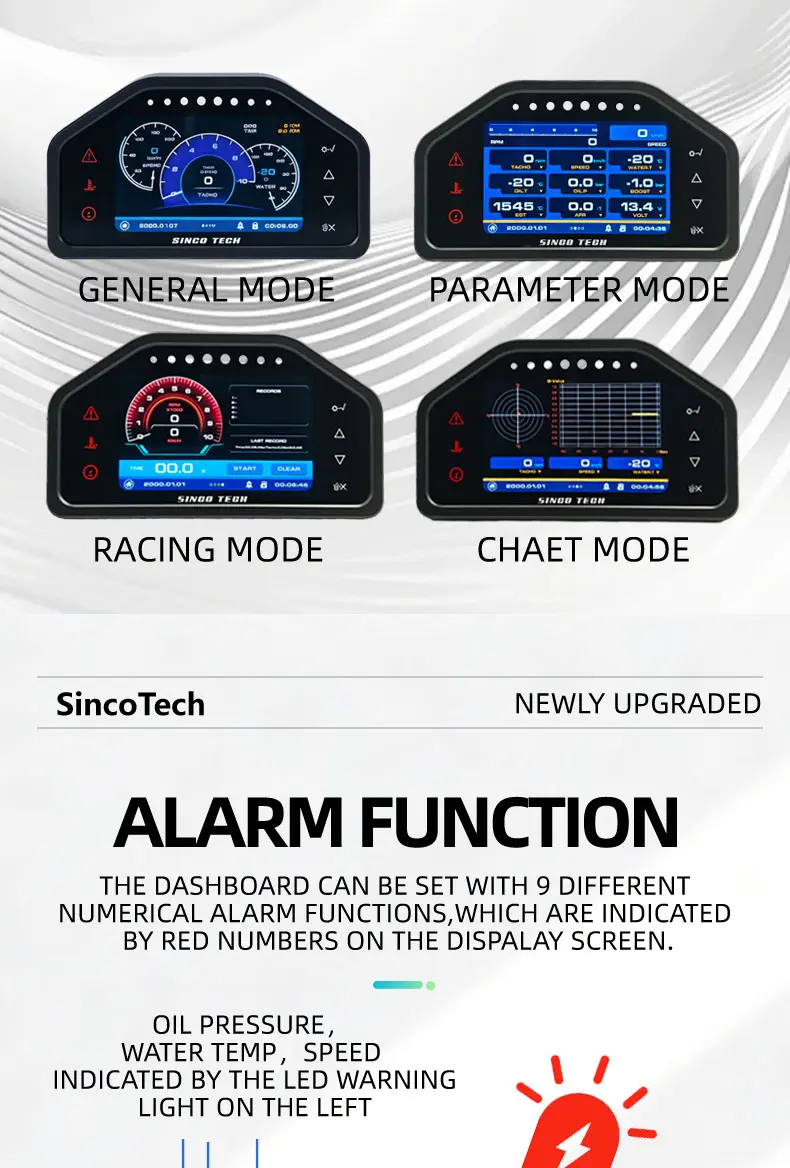

Alarm Setting

Speed RPM Boost Water Temperature Oil Temperature Oil Pressure Voltage Air-Fuel Ratio Exhaust Temperature

Tips

1. Warranty: We provide a one-year warranty (excluding damage caused by human factors). All warranty claims require proof of professional installation.

2. Color & Measurement: Manual measurement, please allow 1~3 mm error, thank you. Due to the difference between different displays, the picture may not reflect the actual color of the item. We guarantee that the style is the same as shown in the picture. Please understand, thank you!

Product Detail

Frequently Asked Questions

Q1 What parameters are monitored by the DO928 dashboard?
The DO928 monitors 9 key parameters: Speed, RPM, Boost, Water Temperature, Oil Temperature, Oil Pressure, Voltage, Air-Fuel Ratio, and Exhaust Temperature (EGT).
Q2 How does the WiFi upgrade function work?
The WiFi upgrade allows remote firmware updates for fixing vulnerabilities or installing customized interfaces. The update file is uploaded to the server linked to your specific instrument serial number (SN), and then downloaded directly through WiFi without returning the device to the factory.
Q3 Can I run the update directly on my gauge at any time?
No. Updates are not pushed automatically. You must request the update and provide your instrument serial number (SN) first. The update will fail if executed on the gauge before the update program has been authorized and uploaded to our server.
Q4 Can I configure warning alerts for all parameters?
Yes. Alarm settings are configurable for all supported parameters, including Speed, RPM, Boost, Water Temperature, Oil Temperature, Oil Pressure, Voltage, Air-Fuel Ratio, and Exhaust Temperature.
Q5 What are the terms of the product warranty?
We offer a one-year warranty covering non-human-induced damages. Please note that professional installation proof is required for any warranty claim processing.
